Chapter 4 Servicing Motherboard Components 4-3

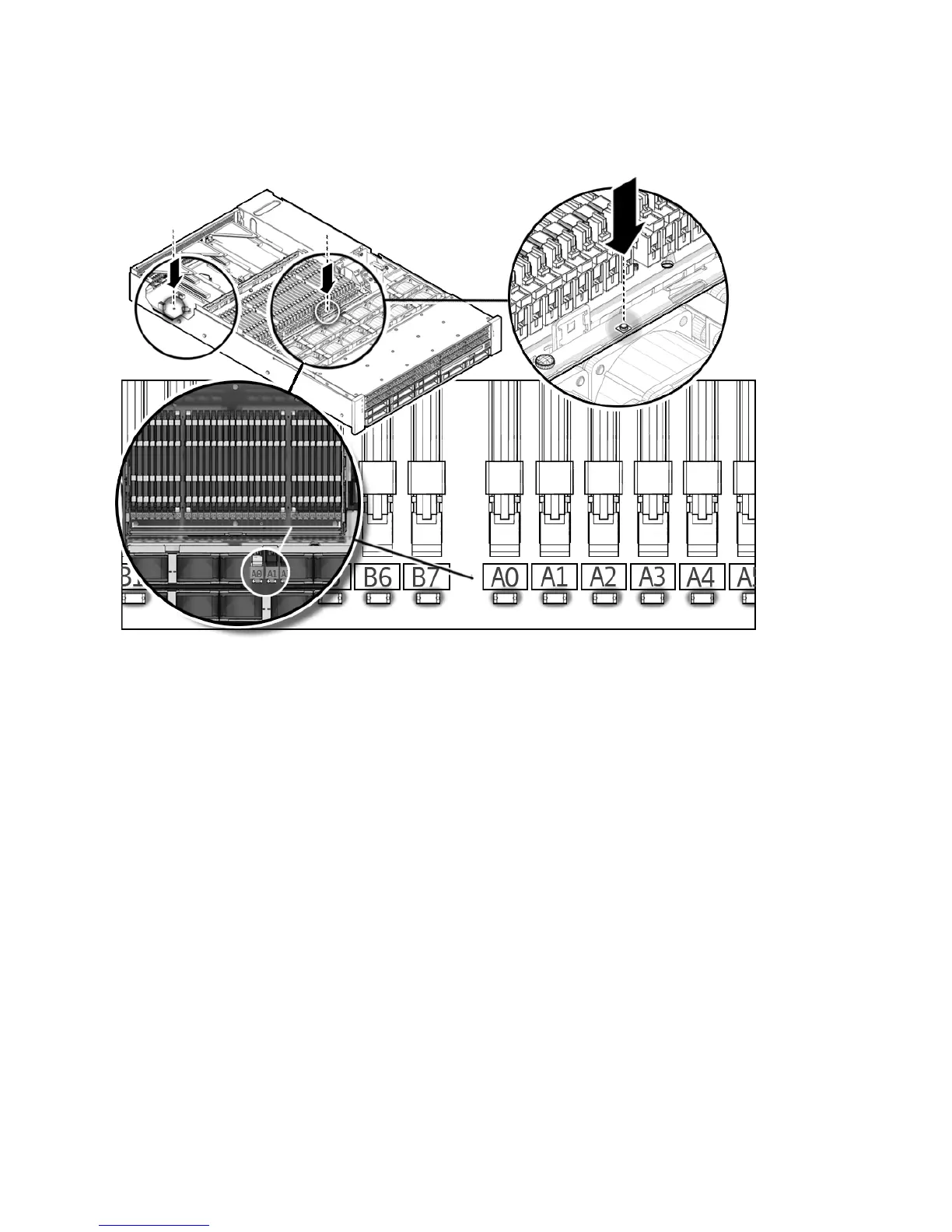

FIGURE 4-1 Remind Button Locations
5. Note the location of faulty FB-DIMMs.
Faulty FB-DIMMs are identified with a corresponding amber LED on the
motherboard.
6. Ensure that all FB-DIMMs are seated correctly in their slots. If re-seating the
FB-DIMM does not fix the problem, remove and replace the faulty FB-DIMM.
