RECEIVING A GENERAL PACKET
To receive a general packet, follow these instructions:
• On the main screen click the Write button (A) near the bottom of the window as shown in Figure 50.1.
• A new window will appear. See Figure 50.2. In this new window, make sure Mode is set to TCP.
• Set the function code to 103.
• Adjust the register size to 16 bit registers.
• In the output spreadsheet, change the rows in the rst column in this order:
16bit UINT
16bit UINT
16bit UINT
8 boolean
8 boolean
8 boolean
8 boolean
32bit UINT
32bit UINT
32bit UINT

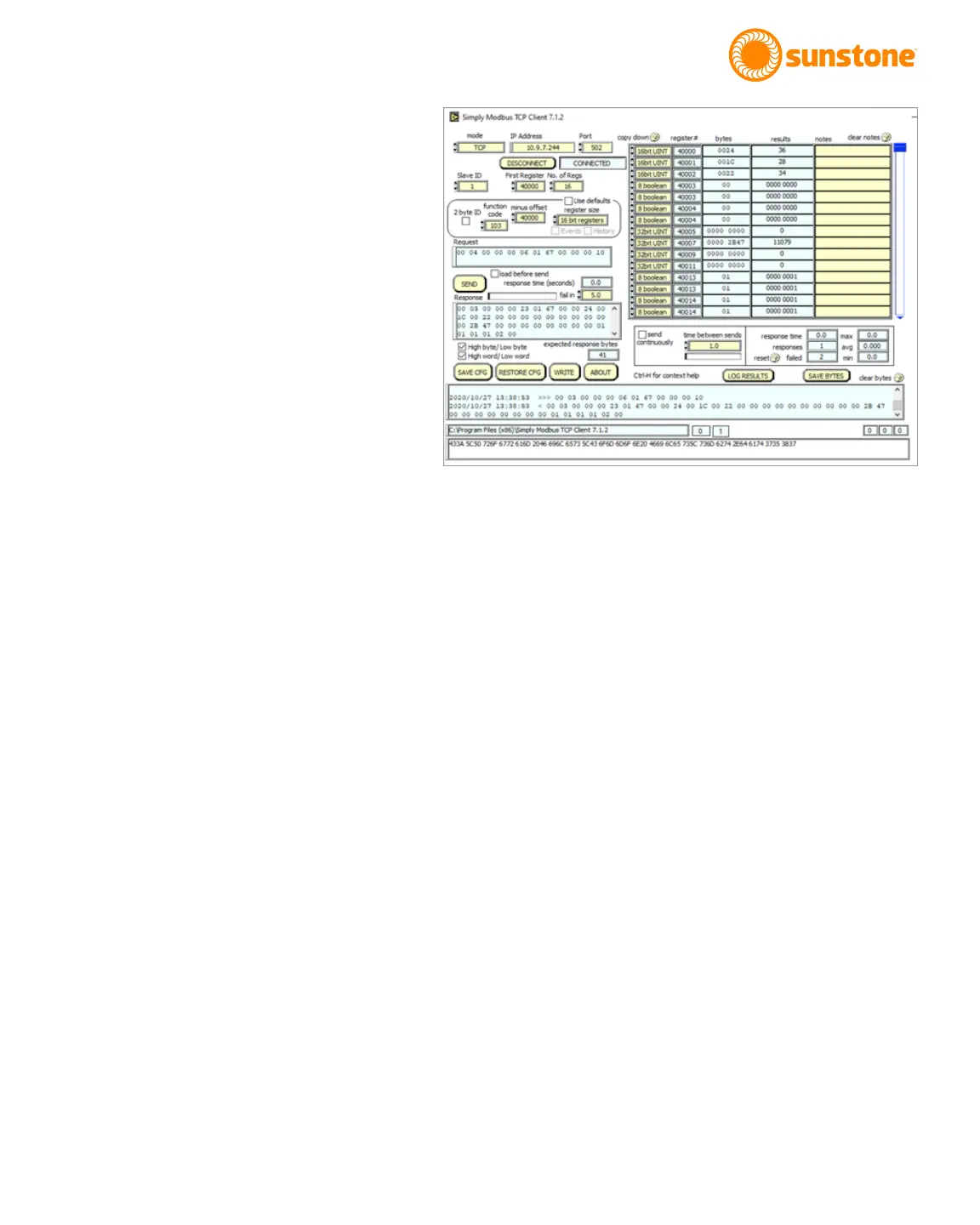

Figure 51.1.
