E-STOP Pin-Out
Refer to Figure 55.1.
1: GND/Shield
2 & 3: Normally open, E-STOP enabled. Close circuit to disable
E-STOP
Note: Pins 4 through 6 are unused.
Weld Head Control Pin-Out
Refer to Figure 55.2.
1: GND/Shield
2: Weld Head Actuation 2. +12VDC(0.5A Max) is sent when weld
head needs to actuate.
3: Weld Head Actuation 1. +12VDC(0.5A Max) is sent when weld
head needs to actuate.
4: GND/Shield
Primary Trigger Pin-Out
Refer to Figure 55.3.
1: Variable Foot Pedal. Connect this to Pin5 (+12VDC) with a
10Kohm potentiometer.
2: Primary Trigger. Connect this to Pin3 (GND) when trigger is
desired.
3: GND/Shield
4: Secondary Trigger. Connect this to Pin3 (GND) when trigger
is desired.
5: +12VDC limited.
3
2
6
4
1
5

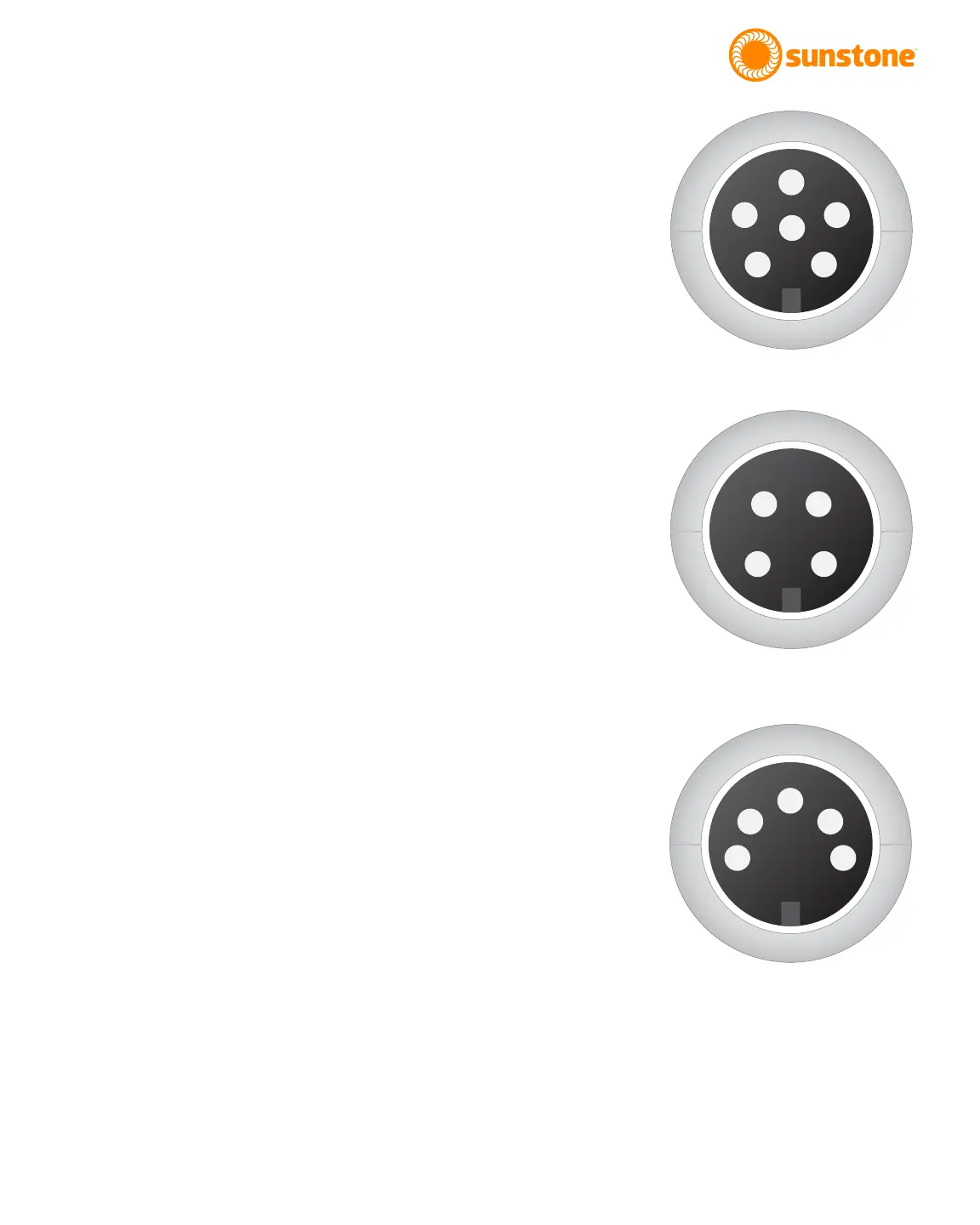

Figure 55.1.E-STOP pin-out.
2 3
1 4
Figure 55.2.Weld Head Control in-out.
Figure 55.3.Primary Trigger pin-out.
2
5 4
3 1
