4-11 ELECTRICAL
STARTING MOTOR
REMOVAL

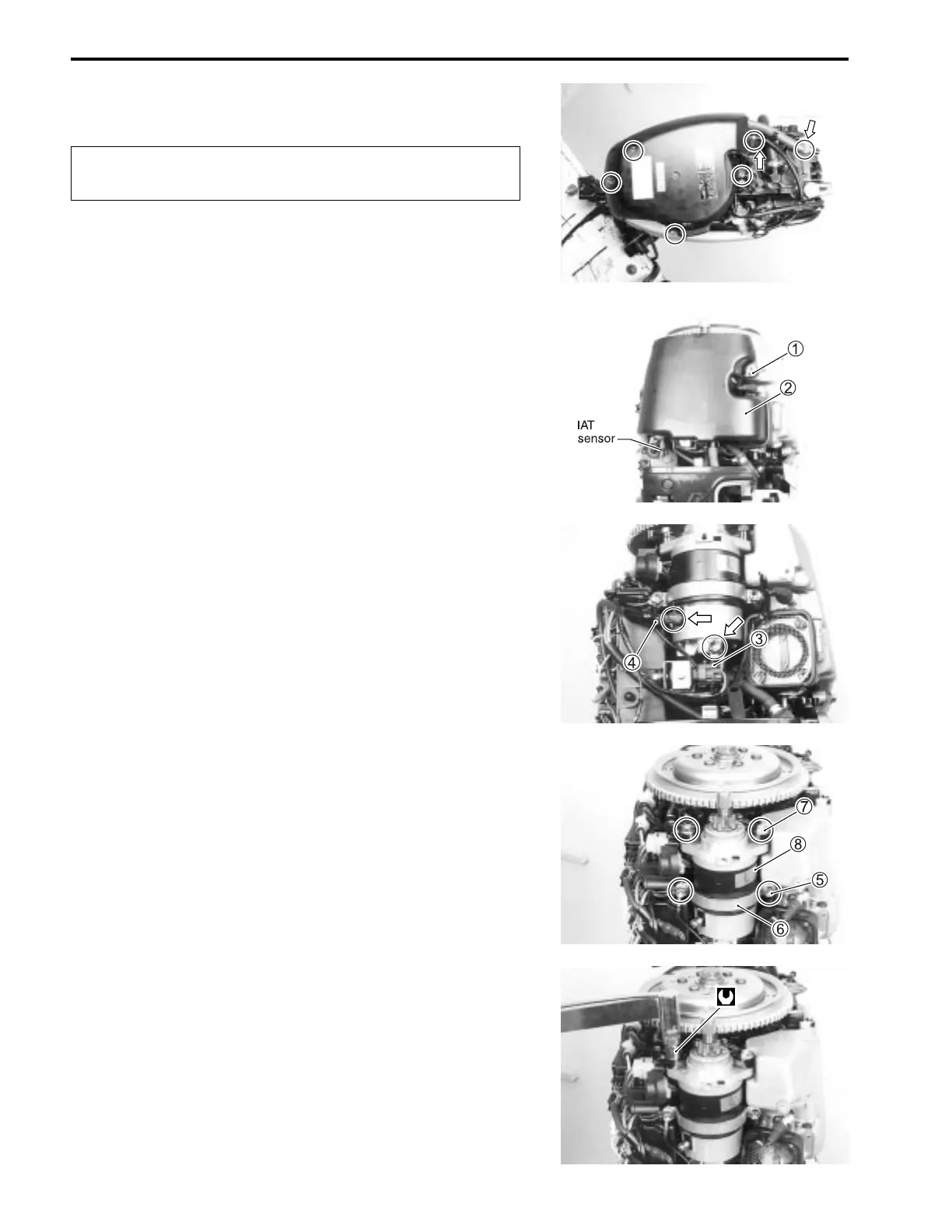

Prior to removing starter motor :
• Disconnect battery cables from battery.
1. Remove four bolts and flywheel cover.
2. Remove bolt 1 and silencer case 2.
3. Disconnect lead wire connector from IAT (Intake air tem-
perature) sensor.
4. Remove bolt and negative - battery cable 3.
5. Remove starter motor sub cable 4.
6. Remove two bolts 5 and starter motor band 6.
7. Remove two bolts 7 and starter motor 8.
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
• Install starter motor and tighten starter motor mounting bolts
securely.
Starter motor mounting bolt :
23 N
.
m (2.3 kg-m, 16.5 Ib.-ft.)
@
