Suzuki DF 40 - Installation

DF40QH / DF50QH 25
INSTALLATION
Installation is reverse order of removal with special attention
to the following steps.

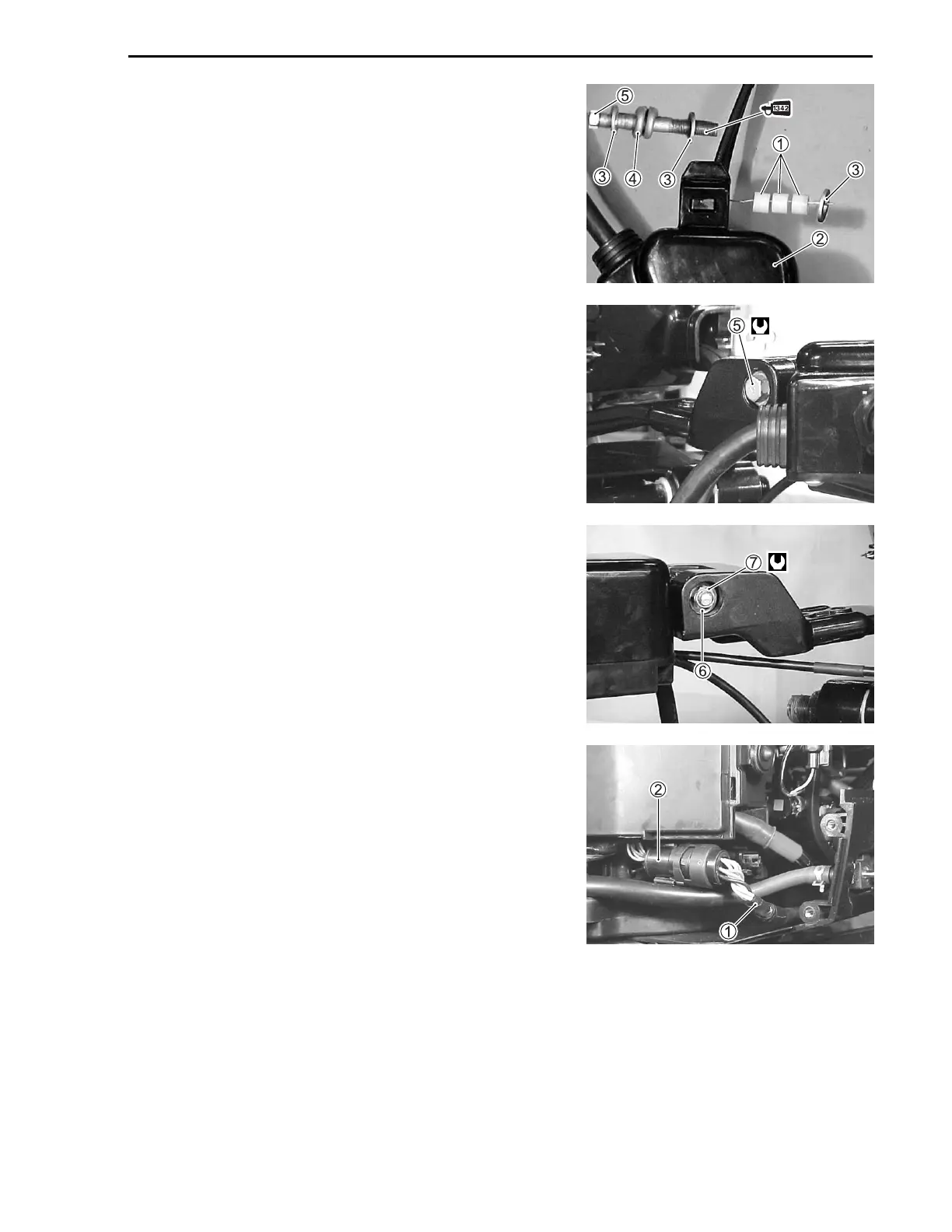

Tiller handle assembly
• Install three (3) nylon bushes 1 into tiller handle mounting
hole and set tiller handle 2 on handle bracket.
• Place three (3) washers 3 and spring 4 into position.
Insert handle pivot bolt 5.
Coat pivot bolt threads with thread lock and tighten pivot
bolt to specified torque.
@@
@@
@ Handle pivot bolt: 45 N
.
m (4.5 kg-m, 32.5 lb.-ft.)
hh
hh
h 99000-32050: Thread Lock 1342
• Install washer 6, nut 7 and tighten nut to specified torque.
@@
@@
@ Handle pivot nut: 45 N
.
m (4.5 kg-m, 32.5 lb.-ft.)
Handle wire harness
Route the handle wire harness 1 as shown in figure.
Connect handle wire harness connector to engine wiring har-
ness 2.
