LOWER UNIT 9-12
G
F
1
2
3
4
5
6
7
8
9
A
0
B
C
D
E
H
I
L
N
Q
R
S
T
U
V
W
X
Y
Z
[
Y
Z
\
]
^
a
23 N
.
m
(2.3 kg-m, 16.6 lb.-ft.)
@
k
k
k
l
l
l
l
j
J
K
M
O
P

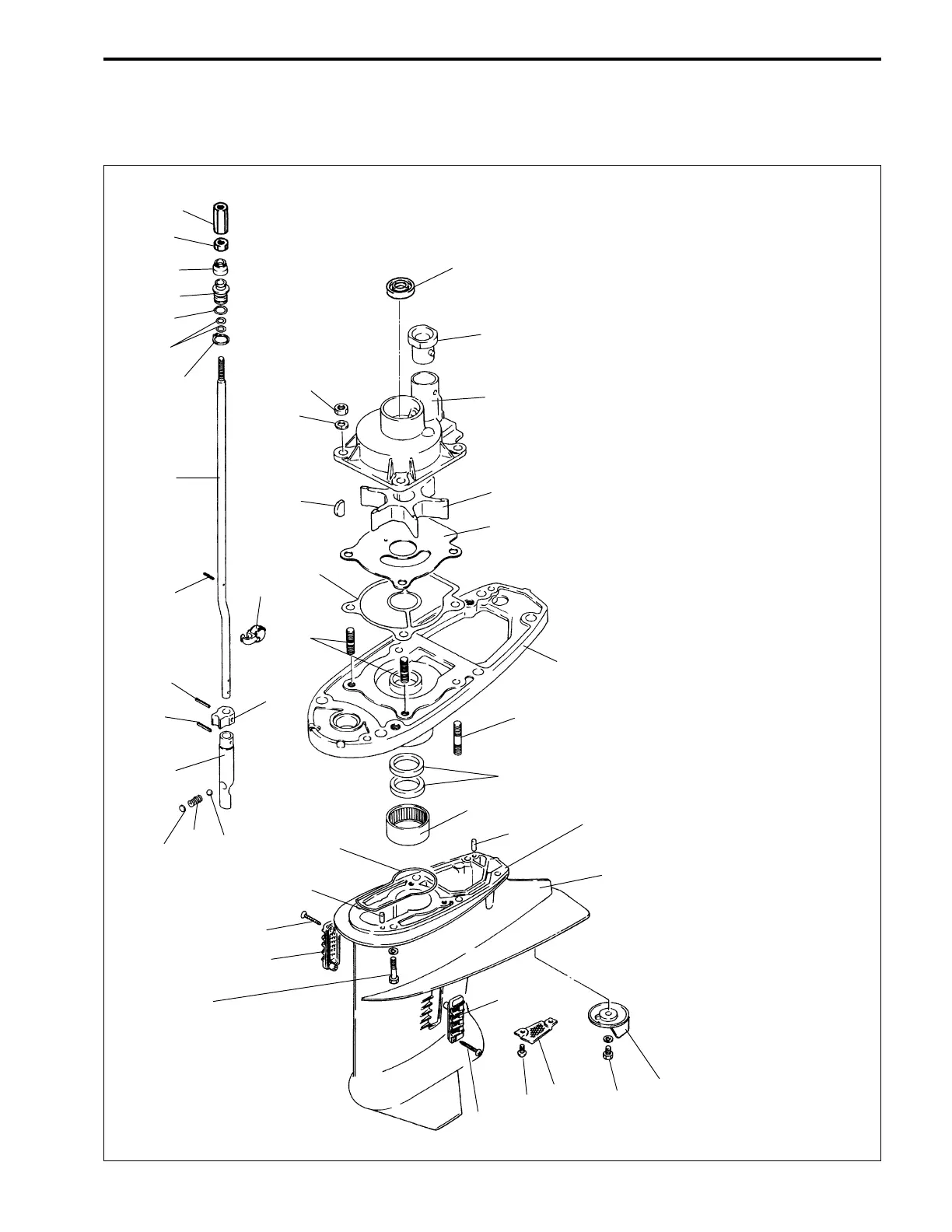

ASSEMBLY & INSTALLATION
Assembly & Installation are reverse of disassembly with spe-
cial attention to following steps.
1 Dust boot
2 Shift rod guide
3 O-ring
4 O-ring
5 Circlip
6 Shift rod
7 Pin
8 Magnet set
9 Pin
0 Shift rod lower guide
A Pin
B Shift cam
C Ball
D Spring
E Notch plate
F Nut
G Turnbuckle
H Grommet
I Water pump case
J Nut
K Lock washer
L Water pump impeller
M Key
N Pump case under panel
O Gasket
P Stud bolt
Q Driveshaft bearing housing
R Stud bolt
S Oil seal
T Bearing
U Seal ring
V Pin
W Pin
X Gear case
Y Screw
Z Water filter
[ Bolt w/washer
\ Screw
] Sub water filter
^ Bolt
a Trim tab
Oil seal

Suzuki DF 40 Specifications

General

Displacement	941 cc
Starting System	Electric
No. of Cylinders	3
Steering	Remote
Gear Ratio	2.27:1
Alternator Output	12V 19A
Engine Type	4-Stroke, DOHC
Maximum Output	40 hp
Fuel System	Multi-Point Sequential Electronic Fuel Injection
Shaft Length	S: 381 mm, L: 508 mm
Oil Capacity	2.7 L
