DF40/S0 "KS" ('OS) MODEL 41
DRIVESHAFT/DRIVESHAFT BEARING HOUSING
Effective Engine Number
DF40: From 04001 F-51 0001 to 04001 F-51 0209
DF50:
From 05001F-510001 to 05001 F-51 0465
The driveshaft and related parts have been changed as follows:
•
The pre-load spring, spring pin and washers have been eliminated.
• The oil groove in the driveshafi has been added.
• The flange of the driveshaft has been eliminated.
• The driveshafi thrust bearing has been changed to a taper-roller type.
• The driveshaft spring housing has been changed in shape.
• The driveshaft bearing housing has been changed in shape.
• The pinion gear back up shim has been changed in shape.
Effective Engine Number
DF40: 04001F-510210 and later
DF50: 05001
F-51 0466 and later
The driveshaft and related parts have been changed to the components for the 2004 year model.
2004 year model and from
the middle
of 200S year model

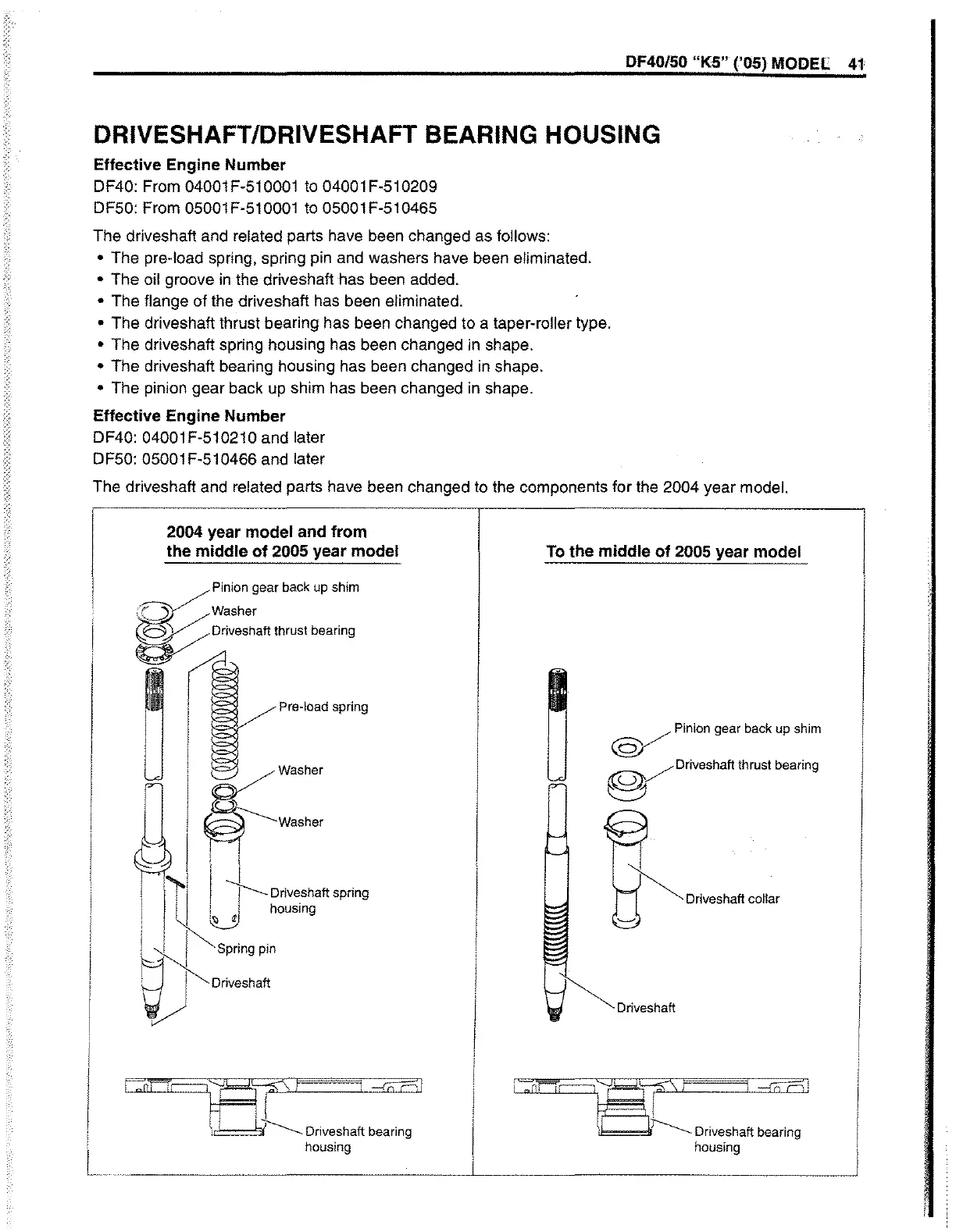

/Pinion gear back up shim
:0 Washer
~DriVeShaft thrust bearing
/' P're-Ioad spring
pin
t:'nt"!=Ac:?S i i ;;;r;:;-t=)1
. , I
I~~ Driveshaft bearing
housing
I
I
I
I
I
I
I
To the middle of 200S year model
~ Pinion gear back up shim
~ Driveshaft thrust bearing
~ Driveshaft collar
Driveshaft
j=:iiM=g:! I ;;;r;:;-t=):
T---.. Driveshaft bearing
housing
