20 DF40QH / DF50QH
MID UNIT

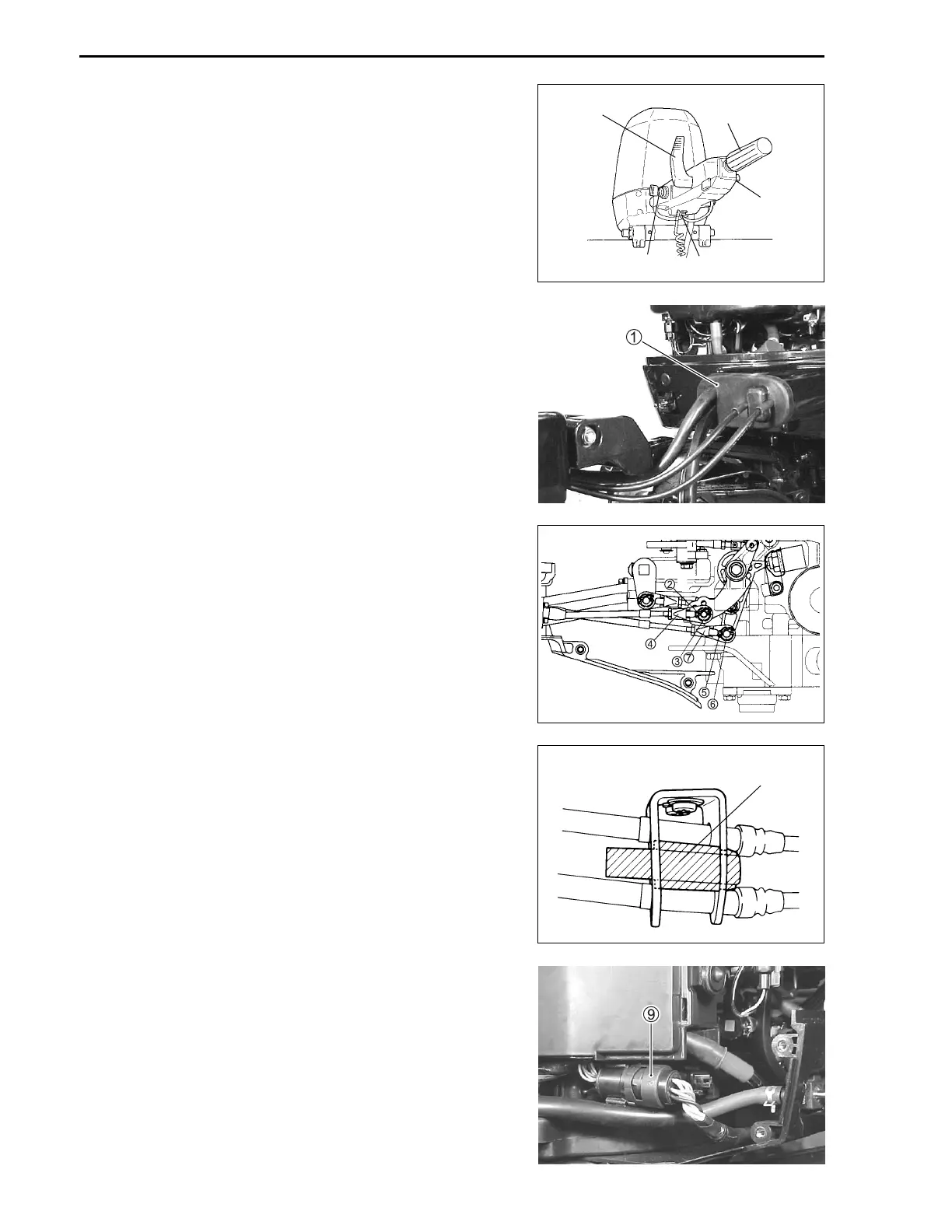

TILLER HANDLE
Functions
The tiller handle is equipped with the following centralized
component parts necessary for proper operation and han-
dling.
1Ignition switch 2Emergency stop switch
3Shift lever 4Throttle control grip
5Throttle friction adjust knob
REMOVAL
1. Remove the rigging port grommet 1 from front panel.
Remove both lower side covers.
2. Remove snap pin 2, washer 3 and throttle cable con-
nector 4 from throttle control arm.
Unthread connector from throttle cable.
3. Remove snap pin 5, washer 6 and shift cable connec-
tor 7 from clutch control lever.
Unthread connector from shift cable.
4. Remove cable stopper 8 from between cables.
5. Disconnect handle wire harness connector 9 from en-
gine wiring harness.
8
3
4
5
1
2

Suzuki DF 40 Specifications

General

Displacement	941 cc
Starting System	Electric
No. of Cylinders	3
Steering	Remote
Gear Ratio	2.27:1
Alternator Output	12V 19A
Engine Type	4-Stroke, DOHC
Maximum Output	40 hp
Fuel System	Multi-Point Sequential Electronic Fuel Injection
Shaft Length	S: 381 mm, L: 508 mm
Oil Capacity	2.7 L
