5-4FUEL SYSTEM
FUEL HOSE CONNECTION

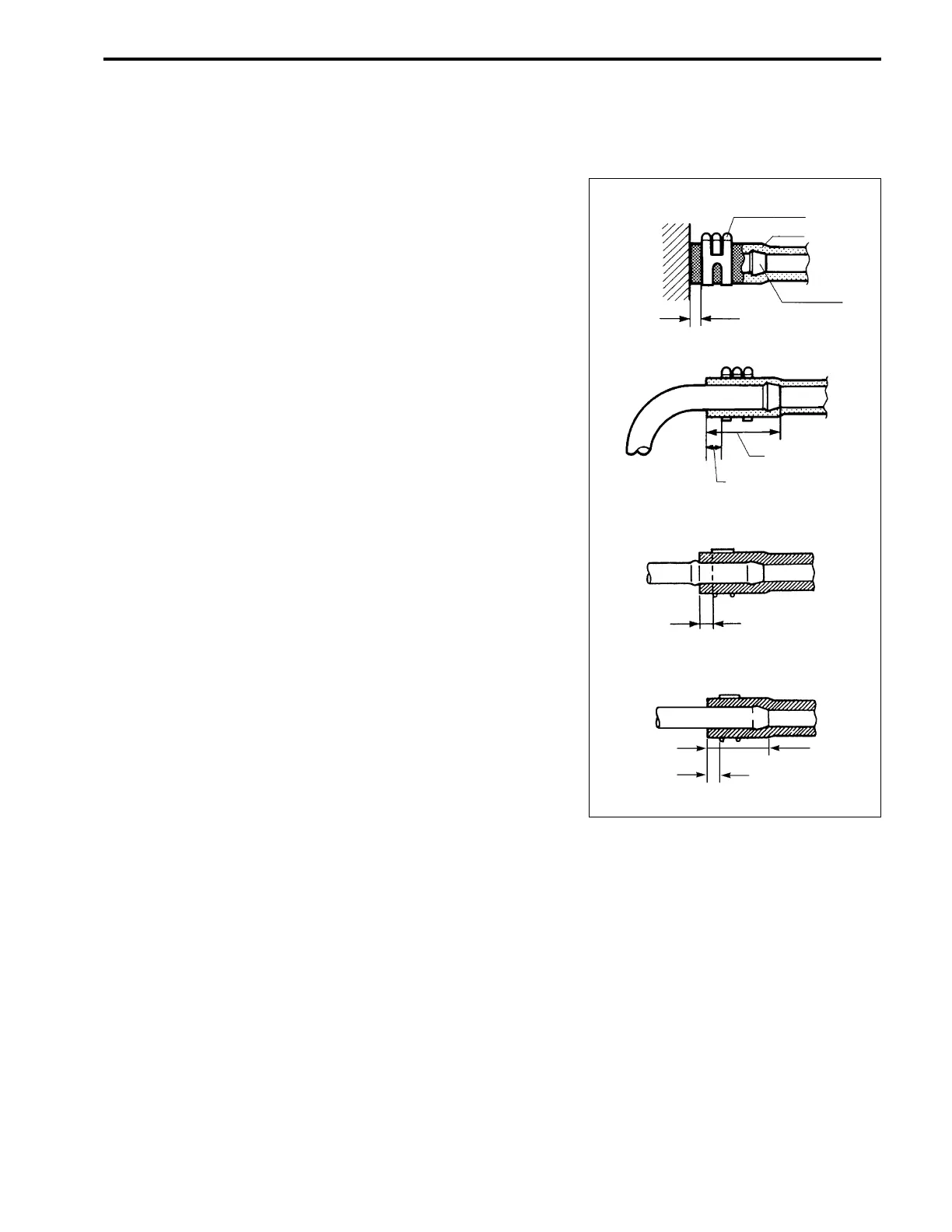

Note that fuel hose connection varies with each type of pipe. Be
sure to connect and clamp each hose correctly by referring to
the figure.
• For type “A” (short barbed end) pipe, hose must completely
cover pipe.
Clamp (Clip)
Hose
Joint piep
3 – 7 mm
(0.1 – 0.3 in)
3 – 7 mm
(0.1 – 0.3 in.)
20 – 30 mm
(0.8 – 1.2 in.)
3 – 7 mm (0.1 – 0.3 in.)
3 – 7 mm
(0.1 – 0.3 in.)
20 – 30 mm
(0.8 – 1.2 in.)
• For type “B” (bent end) pipe, hose must cover straight part of
pipe by 20 – 30mm (0.8 – 1.2in.).
• For type “C” pipe, hose must fit up against flanged part of
pipe.
• For type “D” pipe, hose must cover pipe by 20 – 30mm (0.8 –
1.2 in.).
“A”
“B”
“C”
“D”
