5-14FUEL SYSTEM
LOW PRESSURE FUEL PUMP
REMOVAL / INSTALLATION
REMOVAL

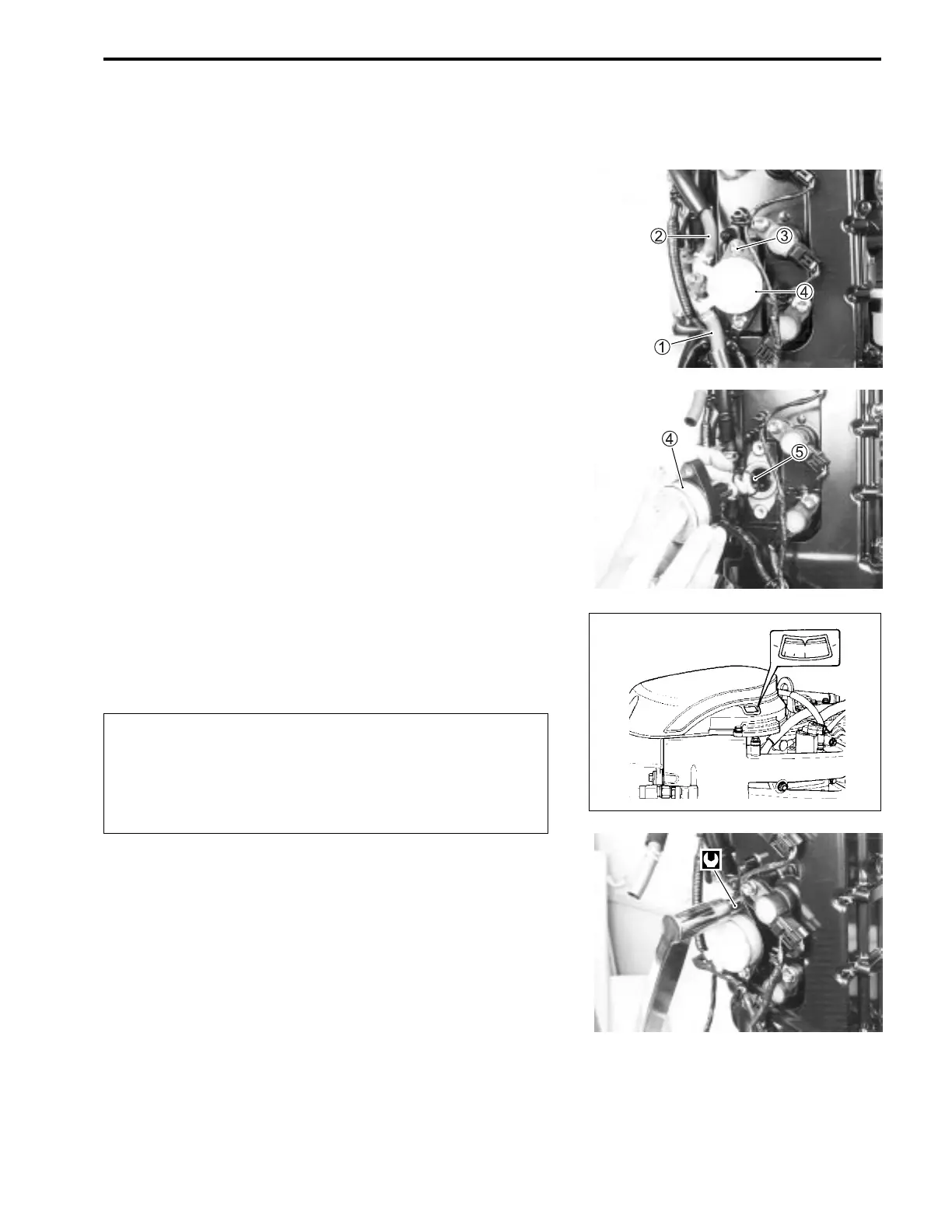

1. Disconnect inlet hose 1 and outlet hose 2 from low pres-
sure fuel pump.
2. Remove two bolts 3.
3. Remove fuel pump 4 and O-ring 5.
B
• Before installing fuel pump, rotate the crankshaft to
bring No.1 (top cylinder) piston to Top Dead Center
on compression stroke.
• Discard O-rings after removal. always use new O-ring
to ensure proper sealing.
Low pressure fuel pump bolt :
10 N
.
m (1.0 kg-m, 7.2 lb.-ft.)
@
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
