9-5 LOWER UNIT

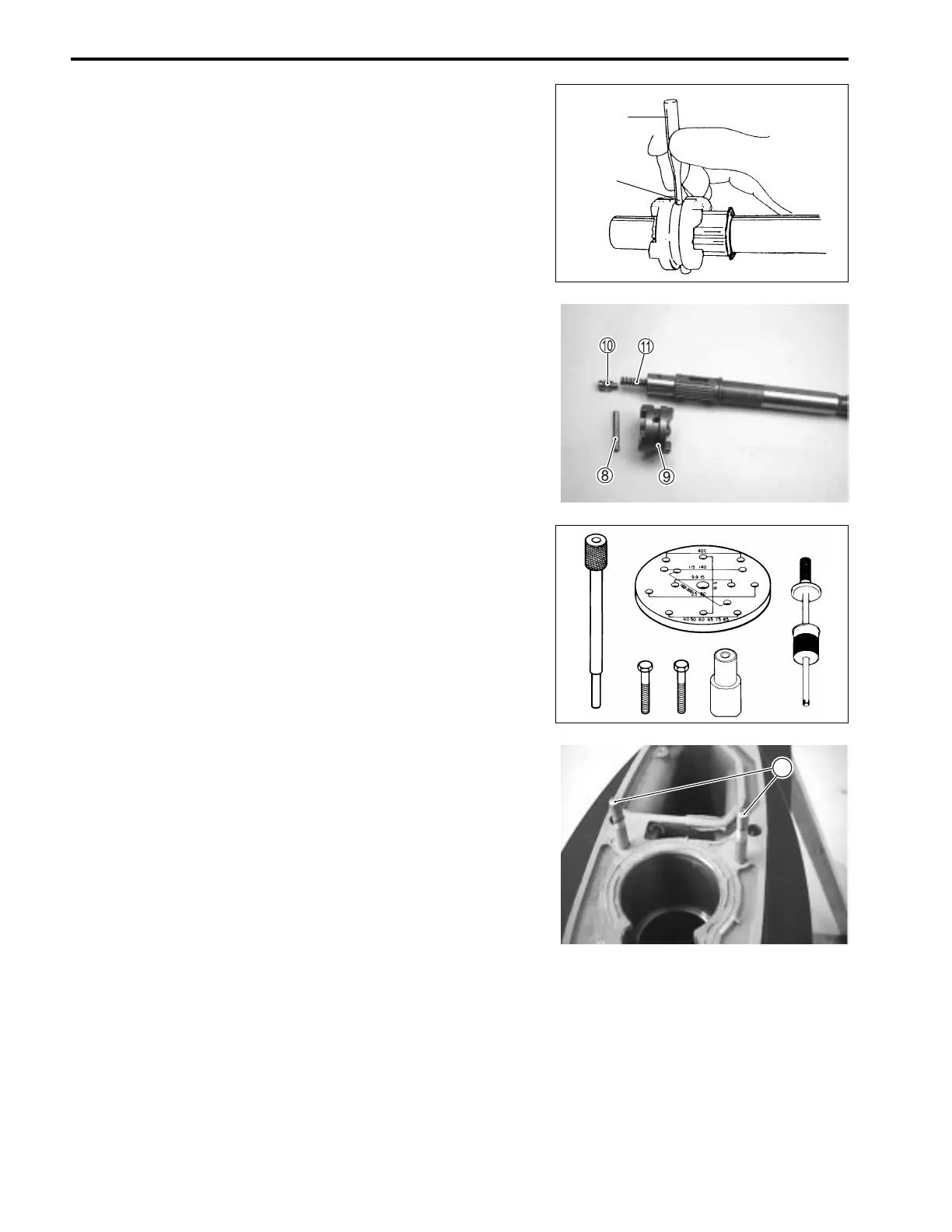

(d) Remove the clutch dog shifter 9, push pin 0, and return
spring A from propeller shaft.
PINION BEARING
Removal & Installation Tools
09951-59910 : Shaft (removal & installation) 1
09951-39914 : plate 2
01107-08408 : Bolt 3
09951-19430 : Attachment 4
09930-30102 : Sliding hammer 5
[REMOVAL]
1. Remove the water pump stud bolts a.
1
2
3
4
5
(c) Use special tool to push the dog pin 8 out of the clutch dog
shifter.
09922-89810 : Shift pin remover
z
8
z
z
a
