LOWER UNIT 9-6
B
Before installing bearing, ensure that inside of gear
case is clean and free of debris.

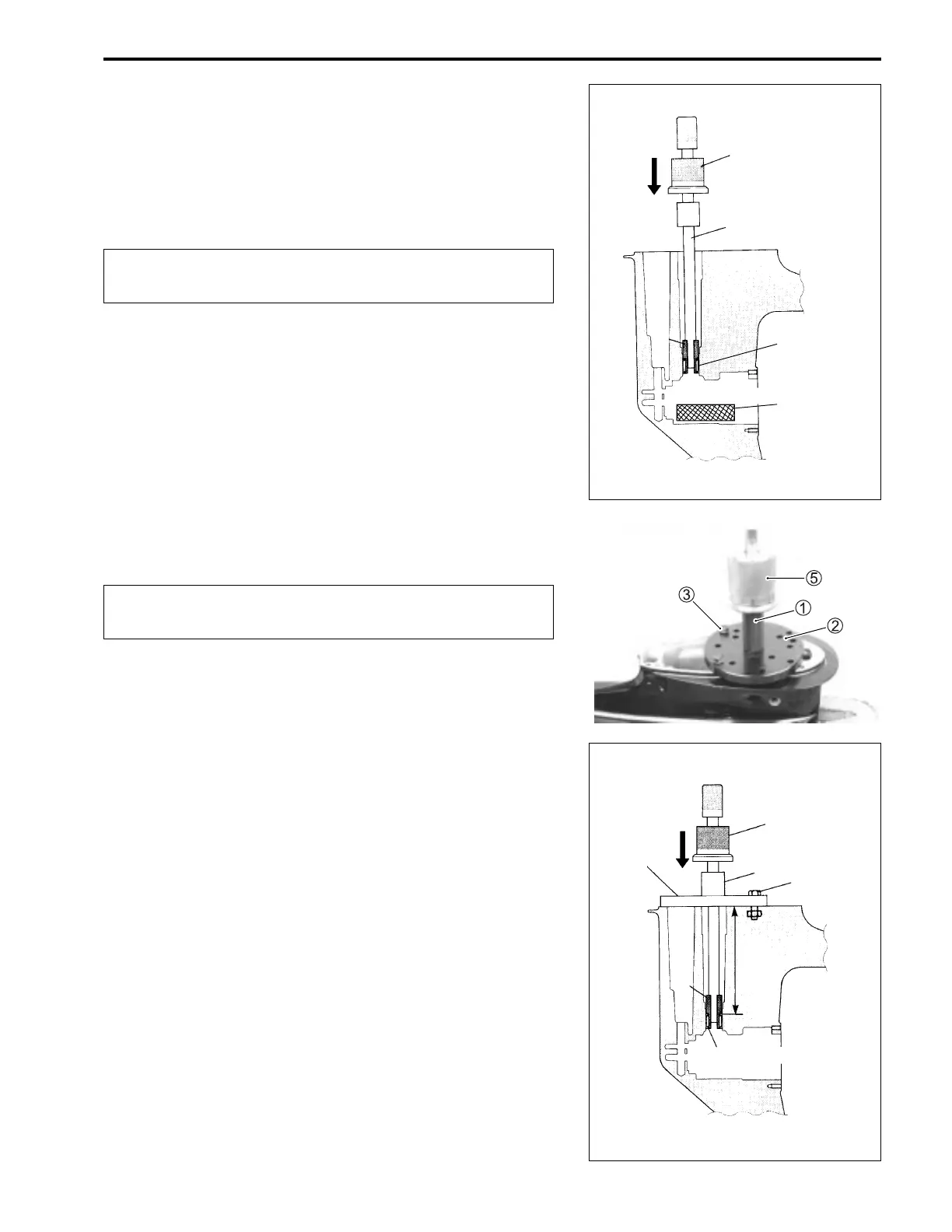

7. Set the installer shaft 1, plate 2, attachment 4 and pinion
bearing as shown.
8. Place the installer shaft (with pinion bearing on end of in-
staller) into the gearcase.
9. Secure the plate 2 by tightening the bolts 3.
10. Thread the sliding hammer 5 into the top of the installer
shaft.
11. Drive the bearing down into position by gently striking the
installer shaft until the coupler touches the plate.
2
4
5
1
3
198 mm
(7.79 in)
Pinion bearing
5
1
4
Pinion bearing
Wood block
2. Place the attachment 4 inside the pinion bearing.
3. Insert the removal shaft 1 into attachment.
4. Thread sliding hammer 5 into top of removal shaft.
5. Put wood block under pinion bearing.
6. Drive the pinion bearing out by striking top of shaft with slid-
ing hammer.
B
When removing the pinion bearing, use care to avoid
damaging the gearcase.
[INSTALLATION]
