Suzuki DF 40 - Ptt Switch

8-17 POWER TRIM AND TILT
PTT SWITCH

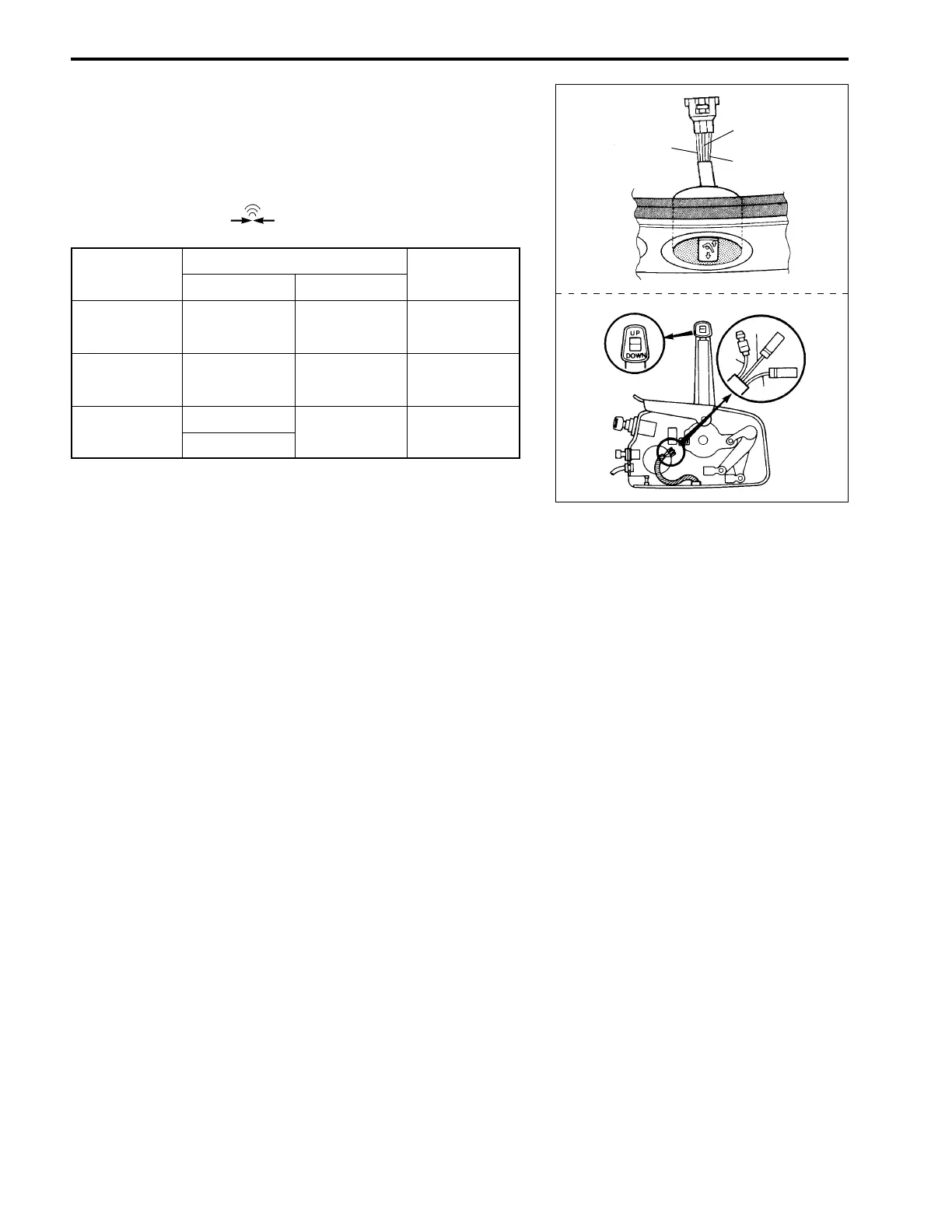

Test continuity between the wires at each of the three switch
positions.
09930-99320 : Digital tester
Tester range : (Continuity)
z
r
Tester probe connection
Tester
indicates
Red (+) Black (–)
“DN” side
depressed
Pink
Gray
(White/Red)
Continuity
“UP” side
depressed
Light Blue Continuity
not
depressed
Pink
Infinity
Gray
(White/Red)
Gray
(White/Red)
Light Blue
LBI
Gr
P
P
(W/R)
Lbl
