Suzuki DF 40 - Assembly

ASSEMBLY

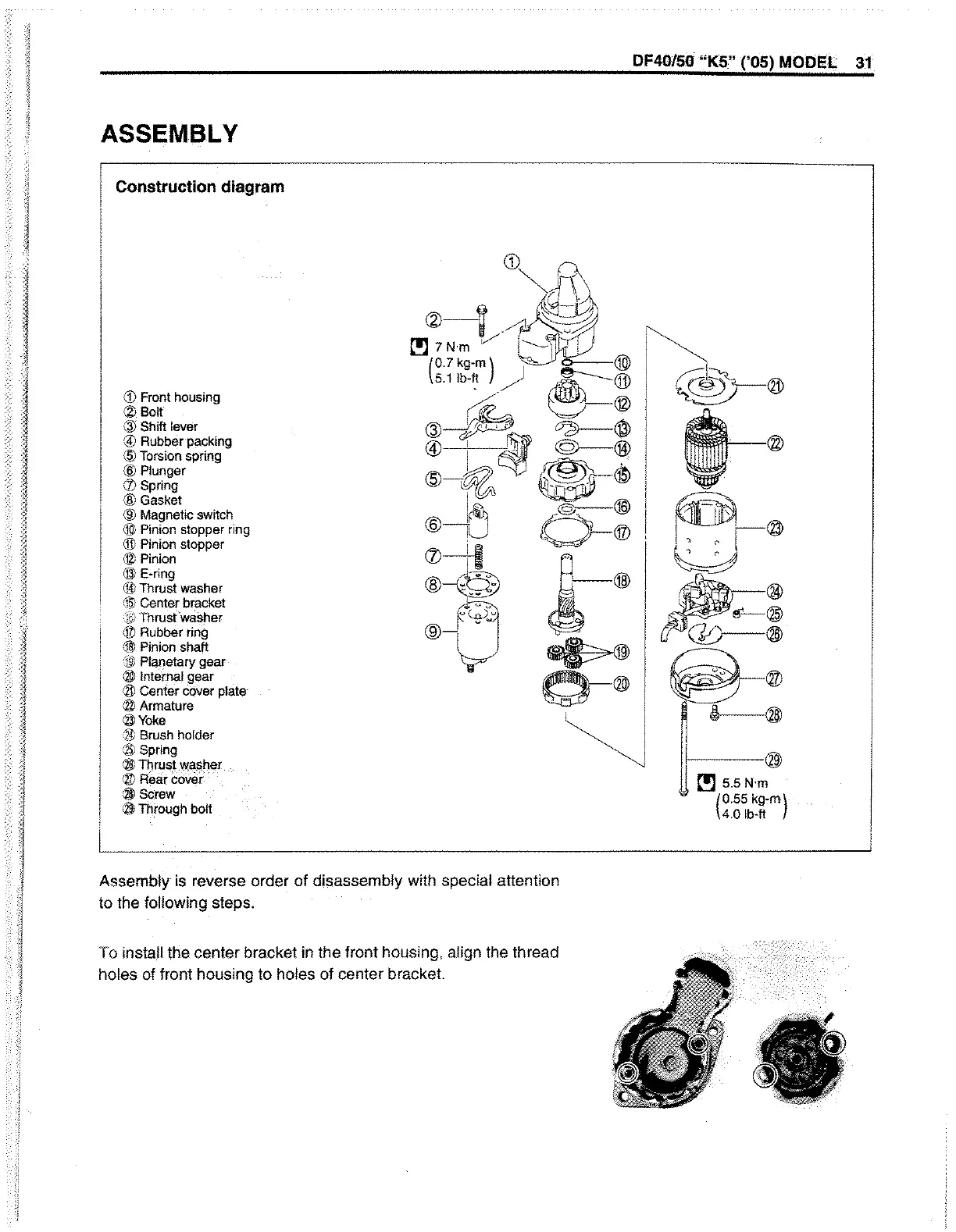

Construction diagram
(j) Front housing
~Bolt
® Shift lever
@ Rubber packing
@ Torsion spring
@Plunger
(J) Spring
@Gasket
@ Magnetic switch
@ Pinion stopper ring
® Pinion stopper
@Pinion
@E-ring
lID Thrust washer
@ Center bracket
-10 Thrusi'washer
@ Rubber ring
@ Pinion shaft
'W Planetary gear
@ Internal gear
® Center cover plate
® Armature
@Voke
,29 Brush holder
@Spring
@ Thrustwasher
® Reareover
@Screw
@ Through bolt
Assembly is reverse order of disassembly with special attention
to the following steps.
To install the center bracket in the front housing, align the thread
holes of front housing to holes of center bracket.
DF40/50 "KS" ('05) MODEl: 31
~-®
~ £--@l
Ir @l
II [!l 5.5 N·m
(
0.55
kg-m)
4.0Ib-ft
