5-11 FUEL SYSTEM

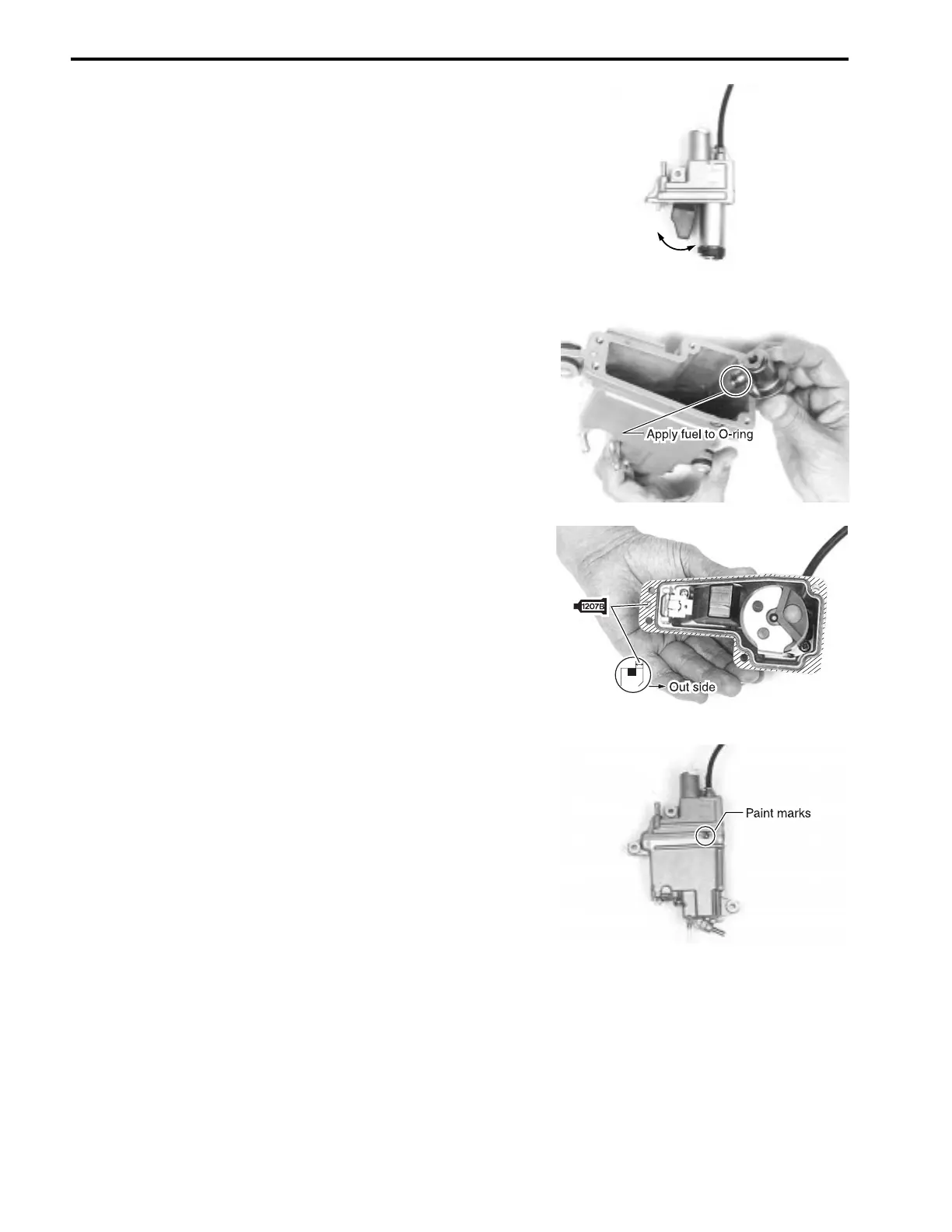

Separator cover / Separator case
Apply Suzuki Bond evenly to only the outside mating surface of
separator cover as shown.
99000-31140 : Suzuki Bond 1207B
NOTE:
• Clean mating surfaces before applying bond.
• Do not apply bond to o-ring, groove and inside mating sur-
face.
Install separator case and tighten screws securely.
NOTE:
Separator cover and case are a set.
Make sure paint marks on both items are matched when as-
sembling.
b
ASSEMBLY
Assembly is reverse order of disassembly paying special atten-
tion to the following steps.
Float / Float pin
Install float and float pin.
NOTE:
After assembling, check for smooth and free float movement.
Fuel pressure regulator
Install fuel pressure regulator and tighten screw securely.
NOTE:
Apply fuel to O-ring before installing regulator.
To Next Page
