6-57 POWER UNIT
REASSEMBLY
Assembly is reverse order of disassembly paying special atten-
tion to the following steps.
B
If original components are not replaced, each piston,
piston pin and conrod is to be assembled and installed
in its original order and position.

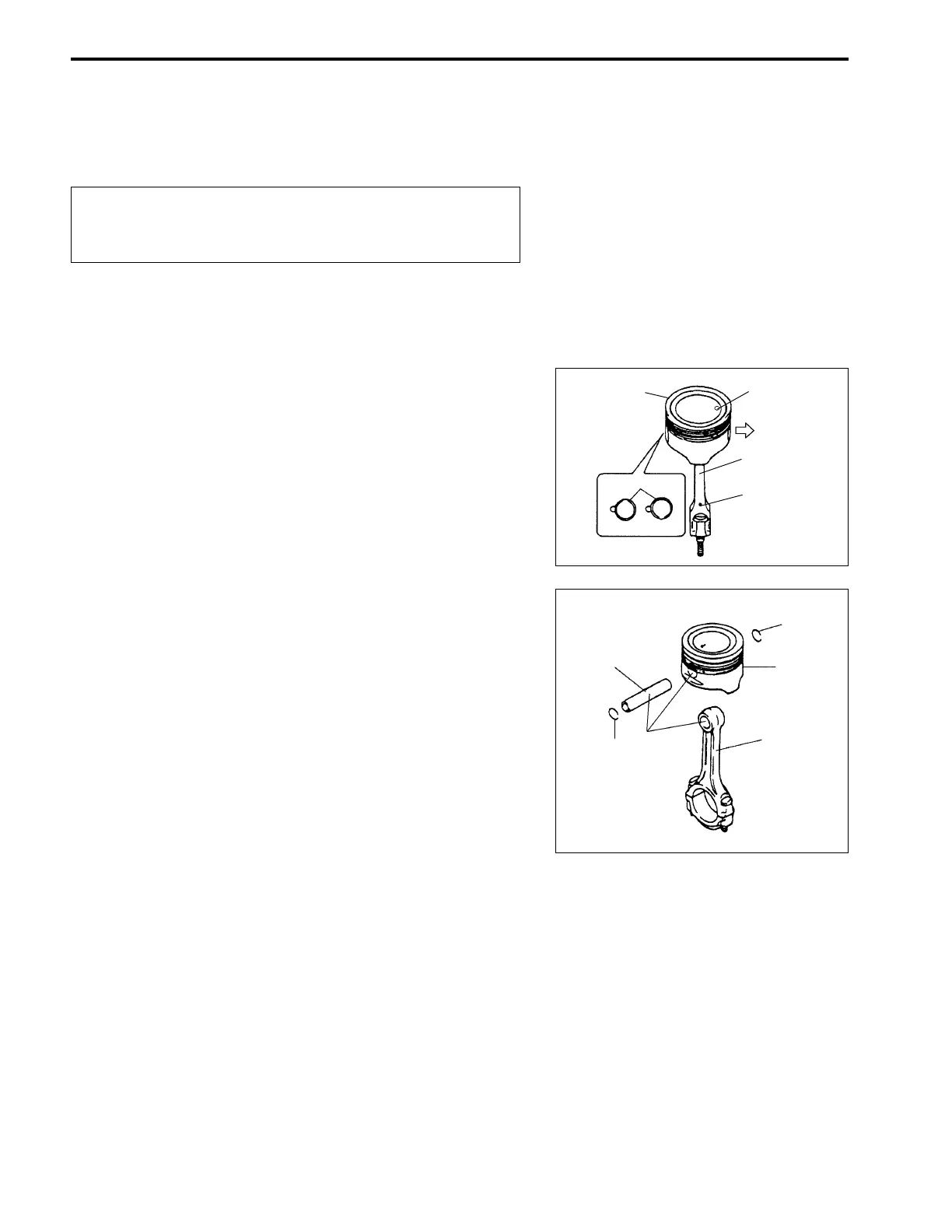

PISTON TO CONROD
Apply engine oil to piston pin 2, piston pin bore and conrod 3.
Fit conrod 3 to piston 1 as shown in figure and insert piston
pin 2 through piston and conrod.
Install piston pin circlips 4.
NOTE:
• Make sure conrod is installed in the direction shown.
• Circlip should be installed with gap facing either up or down
as shown in figure.
• Always use new piston pin circlip.
Up mark “O”
Flywheel
side
Oil hole
Circlip
or
1
3
1
4
2
4
3
o
