18 DF40/50 “K7” (’07) MODEL

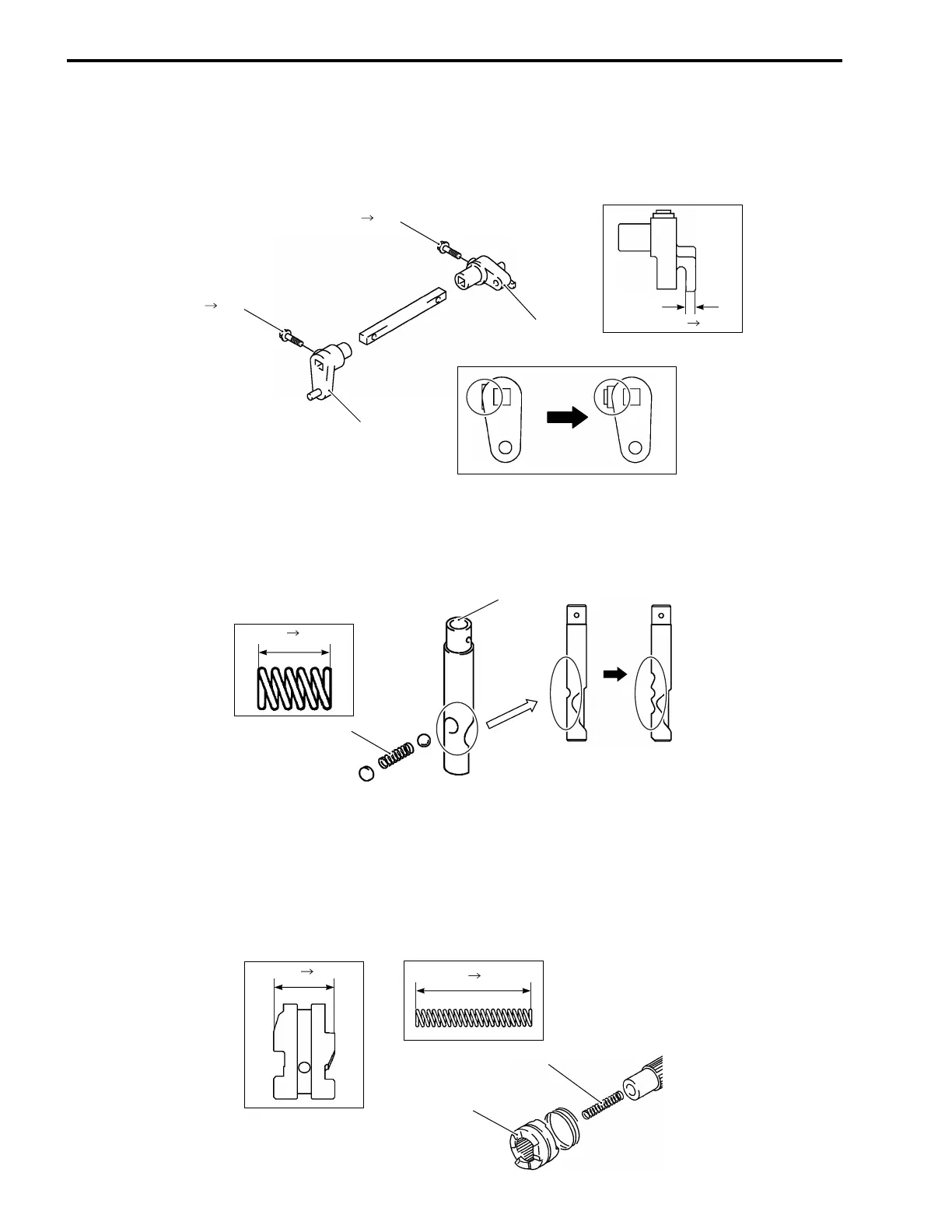

CLUTCH SHAFT ARM AND CLUTCH SHAFT SIDE ARM
The clutch shaft arm and clutch shaft side arm have been changed in shape.
The screw has been changed to bolt.
DETENT SPRING AND SHIFT CAM
The free length of detent spring has been changed.
Two detent notches at forward and reverse positions are added to the shift cam.
CLUTCH DOG SHIFTER AND RETURN SPRING
The width of clutch dog shifter has been changed.
The free length of return spring has been changed.
Return spring free length
Standard: 57.0 mm (2.24 in)
Service limit: 55.0 mm (2.17 in)
4 mm 6 mm
Screw Bolt
Screw Bolt
Clutch shaft side arm
Clutch shaft arm
11 mm 14 mm
Shift cam
Detent spring
30 mm 28 mm
62 mm 57 mm
Clutch dog shifter
Return spring

Suzuki DF 40 Specifications

General

Displacement	941 cc
Starting System	Electric
No. of Cylinders	3
Steering	Remote
Gear Ratio	2.27:1
Alternator Output	12V 19A
Engine Type	4-Stroke, DOHC
Maximum Output	40 hp
Fuel System	Multi-Point Sequential Electronic Fuel Injection
Shaft Length	S: 381 mm, L: 508 mm
Oil Capacity	2.7 L
