POWER UNIT 6-40

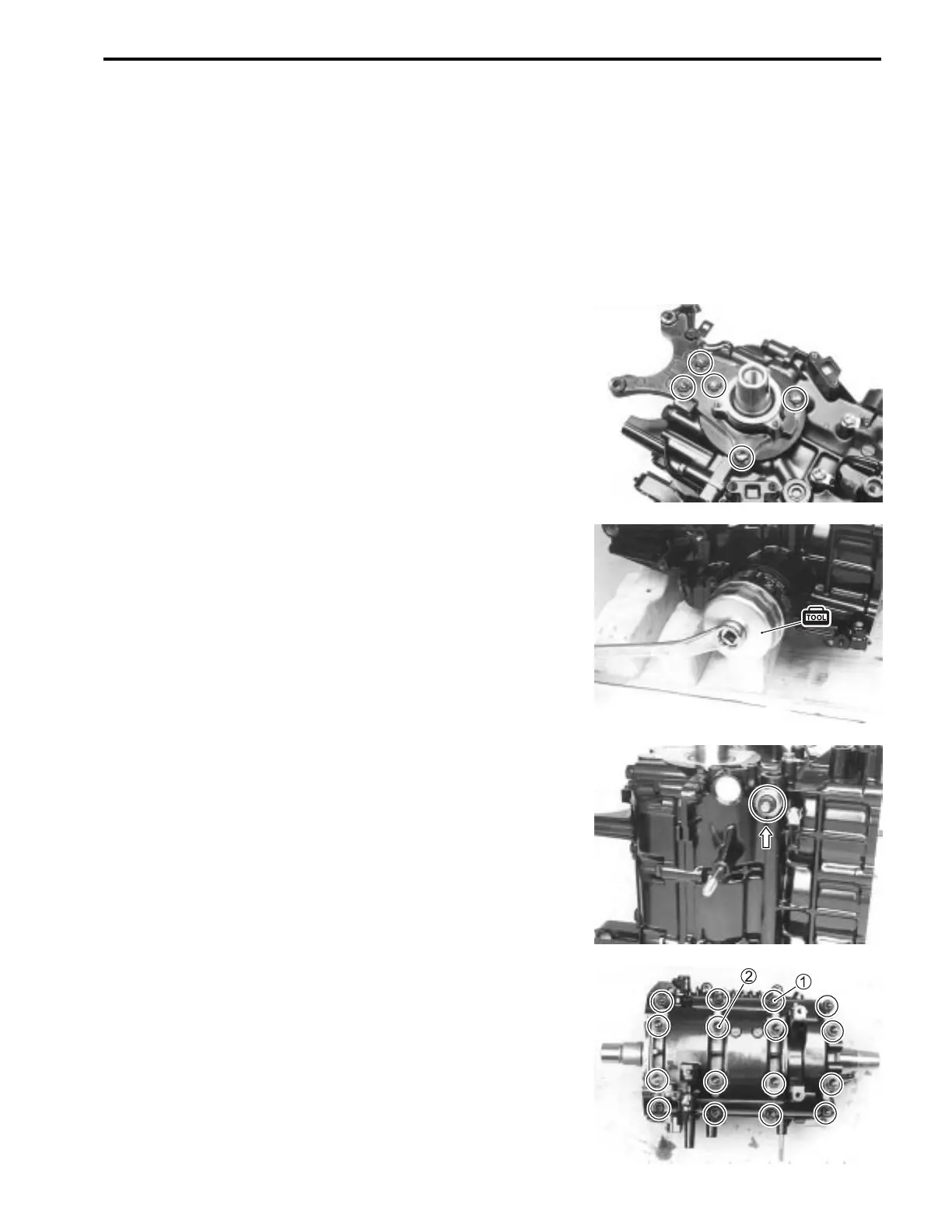

Remove the five (5) bolts securing the upper oil seal housing to
cylinder, then remove the oil seal housing.
Remove oil filter.
09915-47340 : Oil filter wrench
Remove oil pressure switch.
CYLINDER / CRANKSHAFT / PISTON
DISASSEMBLY
Before performing service work in this section :
• Remove power unit (see page 6-3 to 6-6)
• Remove timing chain (see page 6-15 to 6-16)
• Remove cylinder head (see page 6-21)
z
Remove eight (8) bolts 1.
Remove eight (8) bolts
2.
Remove crankcase from cylinder block.
