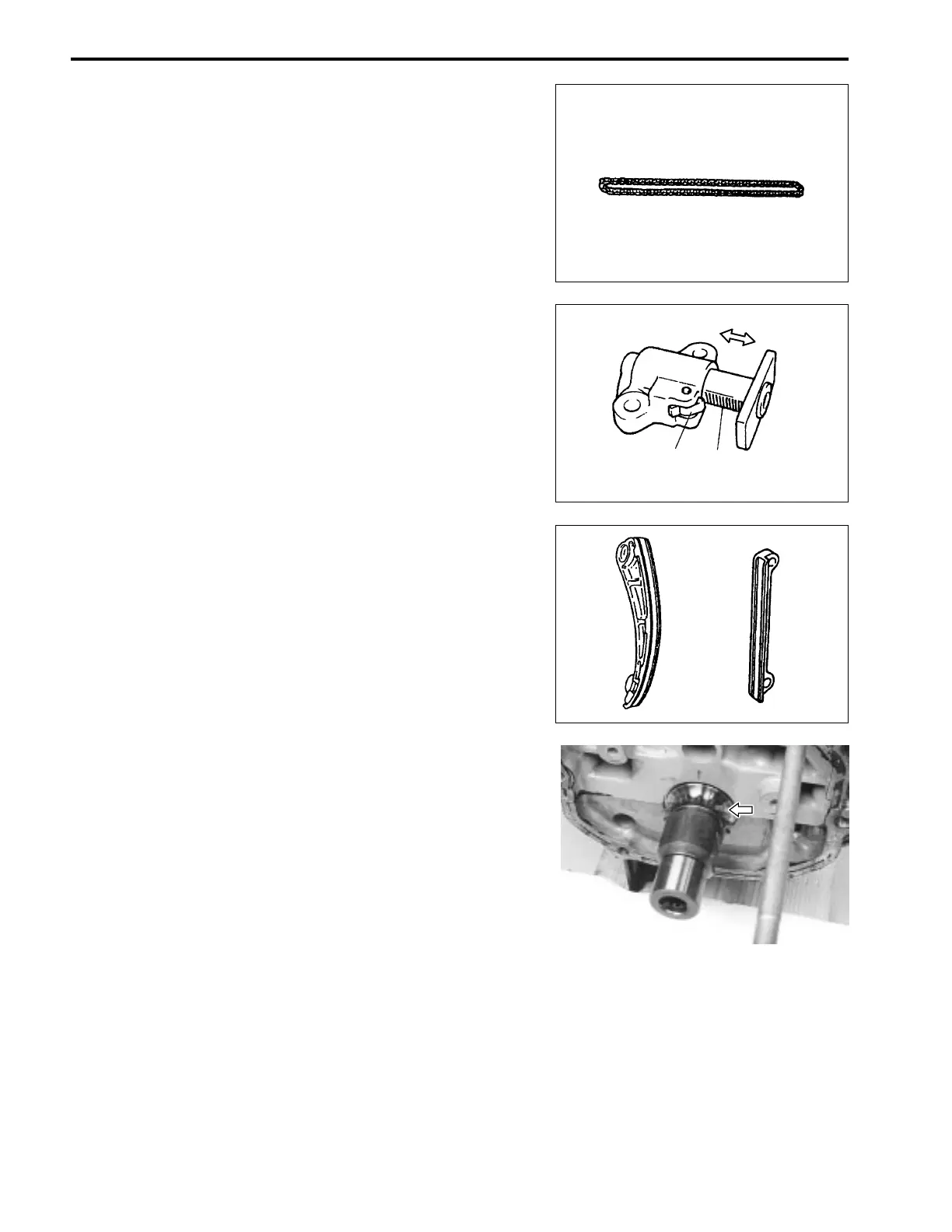

6-17 POWER UNIT
Tensioner adjuster
Inspect tensioner adjuster for smooth operation.
Replace if faulty.
Timing chain tensioner / chain guide
Check shoe for wear or damage.
Timing sprocket
Check teeth of sprocket for wear or damage.
1. Latch
2. Tooth surface
1
2
INSPECTION
NOTE:
If any component is worn excessively, cracked, defective or
damaged in any way, it must be replaced.
Timing chain
Inspect timing chain.
Replace if worn or damaged.
