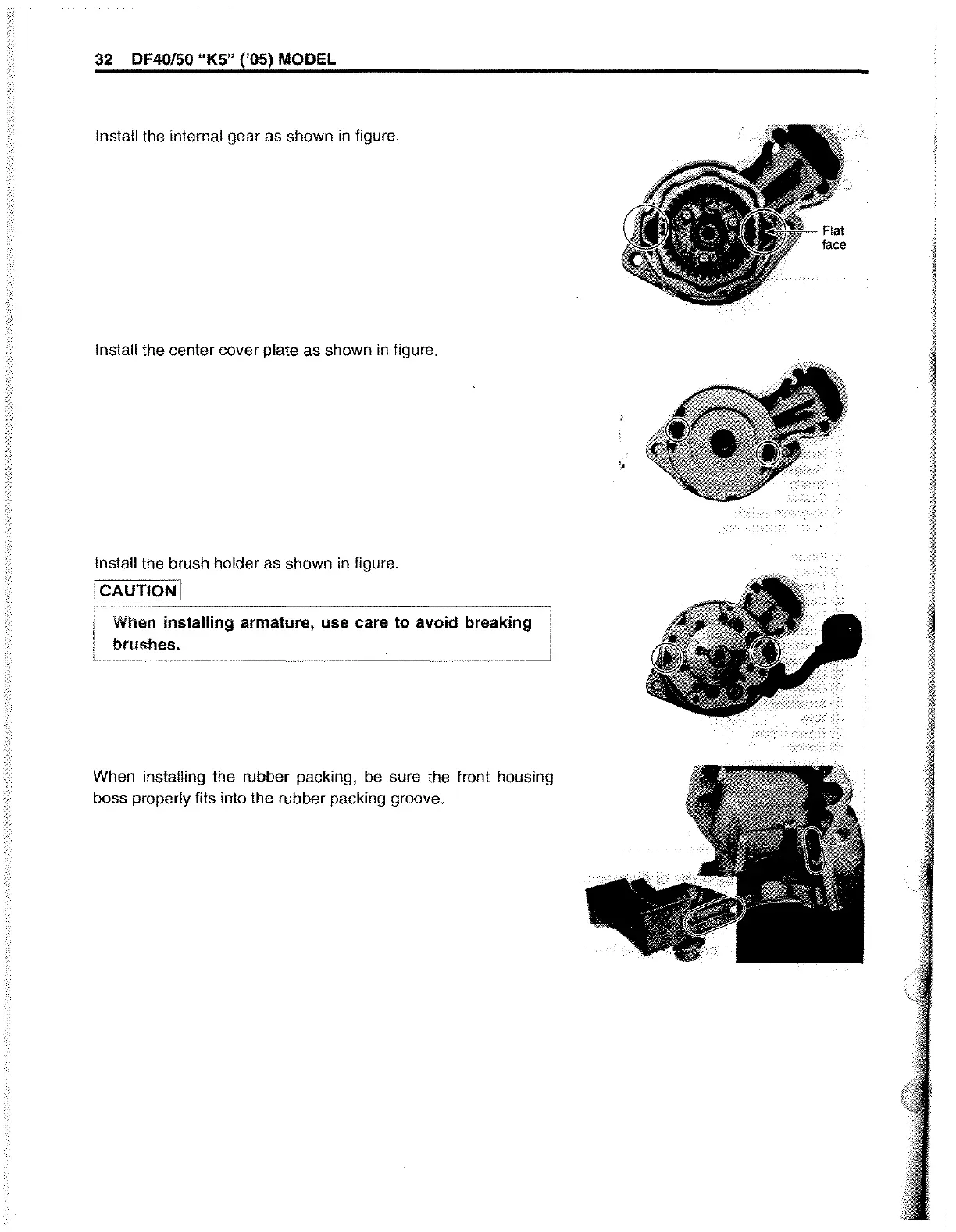

32 DF40/50 "K5" ('05) MODEL
Install the internal gear as shown
in
figure.
Install the center cover plate as shown
in
figure.
Install the brush holder as shown
in
figure.
I
C~U]"jQI\j]
---------------------------------~
When installing armature, use care
to
avoid breaking
brushes.
When installing the rubber packing,
be
sure the front housing
boss properly fits into the rubber packing groove.
