LOWER UNIT 9-4

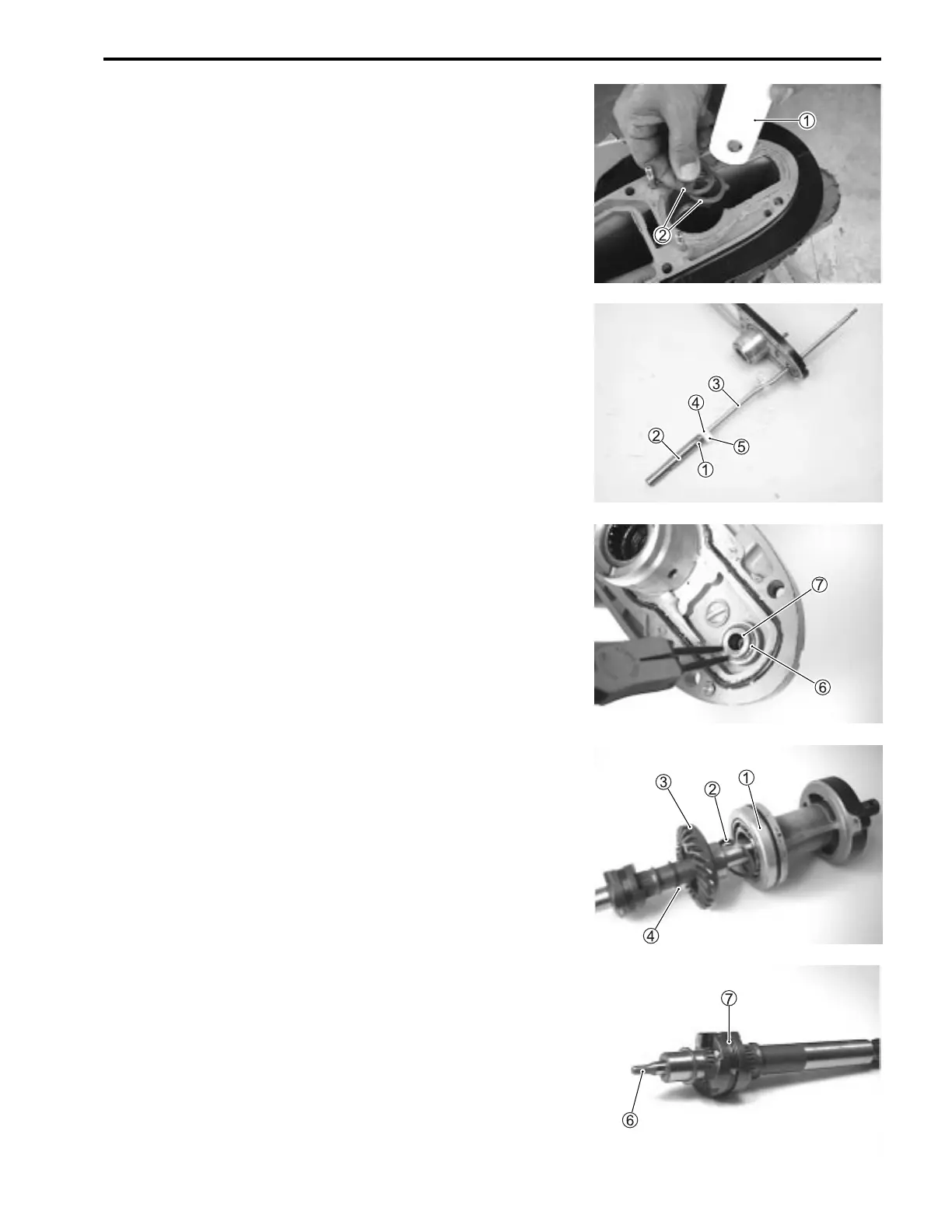

Remove the spring collar 1 and two driveshaft thrust washers
2 from the gear case.
Disassembly of propeller shaft components
Slide propeller shaft away from reverse gear 3 and bearing
housing assembly 1.
Account for the reverse gear back-up shim 2 and reverse gear
thrust washer 4.
To disassemble propeller shaft components, refer to the follow-
ing :
(a) Pull the push rod 6 out of the propeller shaft.
(b) Remove the spring 7 from the clutch dog shifter.
Slide the shift rod out of the shift rod guide.
Separate the shift cam 2 from the shift rod 3 by driving out
the spring pin 1.
Remove the lower shift rod guide 5 by driving out the spring
pin 4.
Remove the snap ring 6 and push shift rod guide 7 out of
bearing housing.
