6-13 POWER UNIT

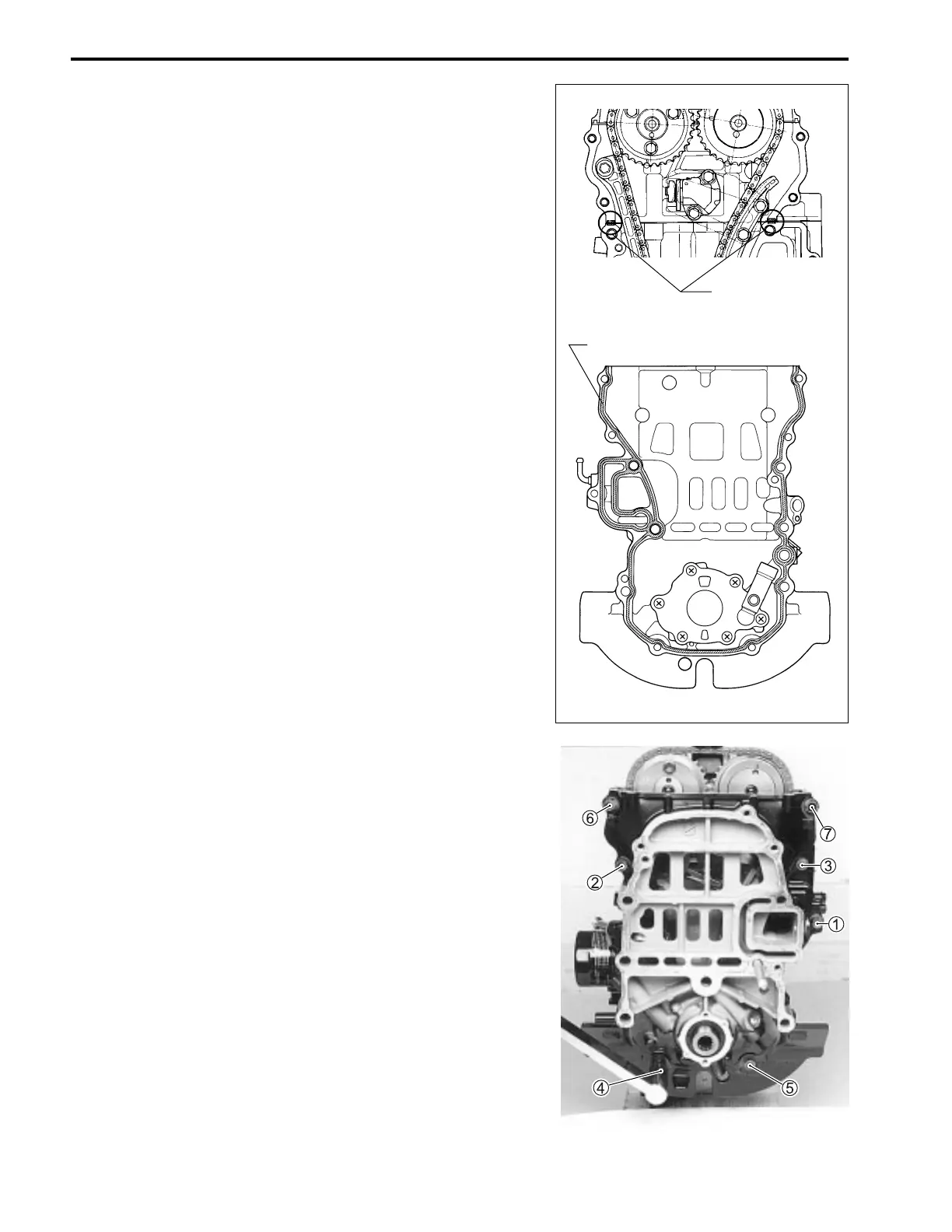

3. Apply sealant to areas as shown in figure.
99000-31140 : Suzuki Bond 1207B
4. Apply a continuous bead of sealant to oil pump case mating
surface as shown in figure.
99000-31140 : Suzuki Bond 1207B
5. Install oil pump case to cylinder block and tighten seven (7)
bolts securely.
NOTE:
• When installing oil pump case be sure position of oil pump
inner rotor matchs with crankshaft.
• Tighten bolts in the indicated order.
Sealant
Sealant
b
b
b
b
To Next Page
