6-19 POWER UNIT

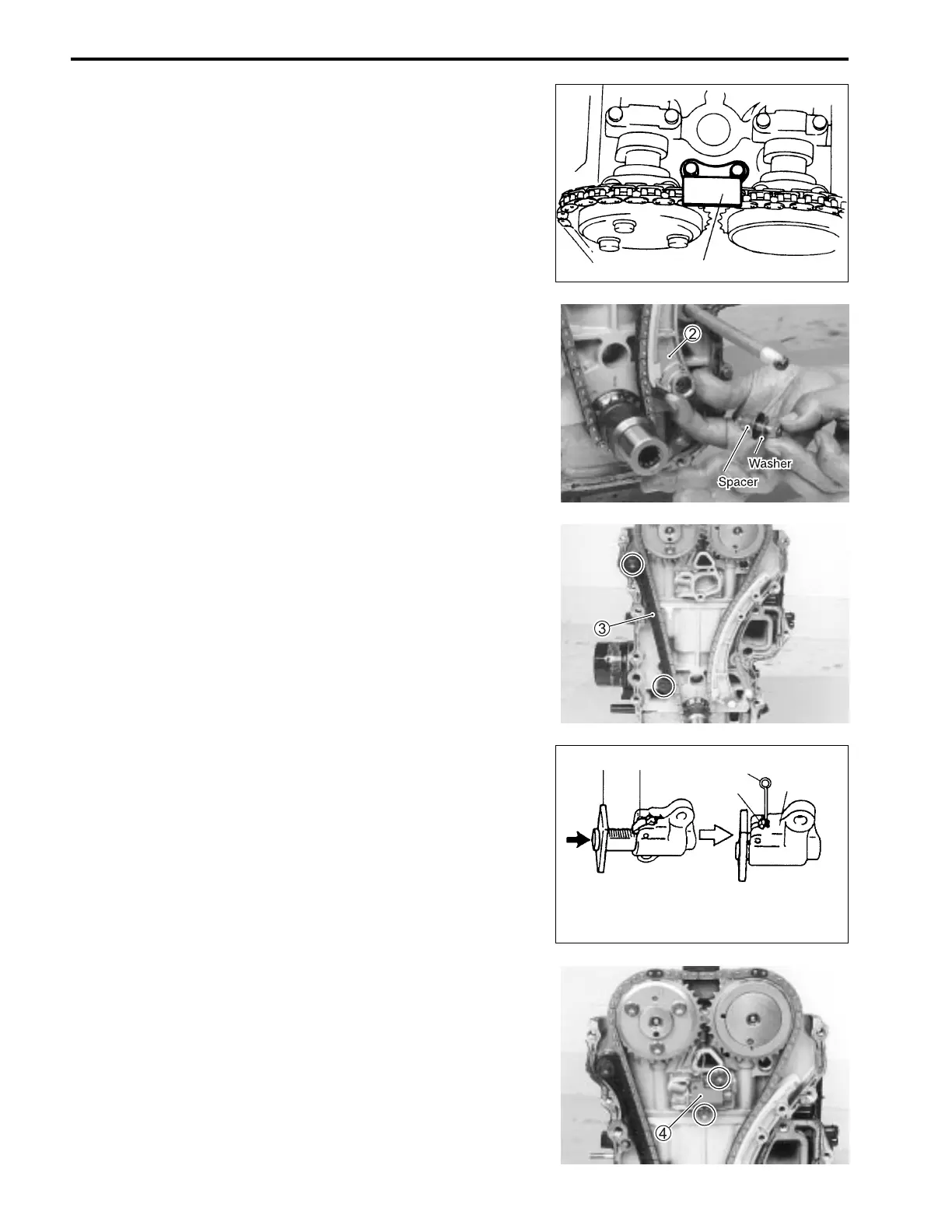

(8) With latch of tensioner adjuster returned and plunger pushed
back into body, insert stopper into latch and body.
After inserting stopper, check to make sure that plunger will
not come out.
(5) Install timing chain guide No.2 1.
(6) Insert spacer into chain tensioner.
Install chain tensioner 2 as shown in figure.
Apply oil to chain tensioner.
(7) Install timing chain guide No.1 3.
(9) Install timing chain tensioner adjuster 4.
Apply engine oil to timing chain.
1
1. Plunger
2. Latch
3. Body
4. Stopper
2
4
3
1
2
