POWER UNIT 6-22
4. Apply engine oil around tappets and install.
5. Install tappet shims.
6. Apply engine oil to the surface of each camshaft lobe and
journal, then install them as shown in figure.
NOTE:
Before installing camshafts, turn crankshaft until No.1 cylinder
reaches top dead center. (see page 6-15)
1
2
3
1. Dowel pin hole
2. Match mark (slit)
3. Match mark (rib)
NOTE:
Use special tool (10mm deep socket wrench) when tighten the
cylinder head bolt.
09919-16010 : Deep socket wrench (10 mm)
z
@

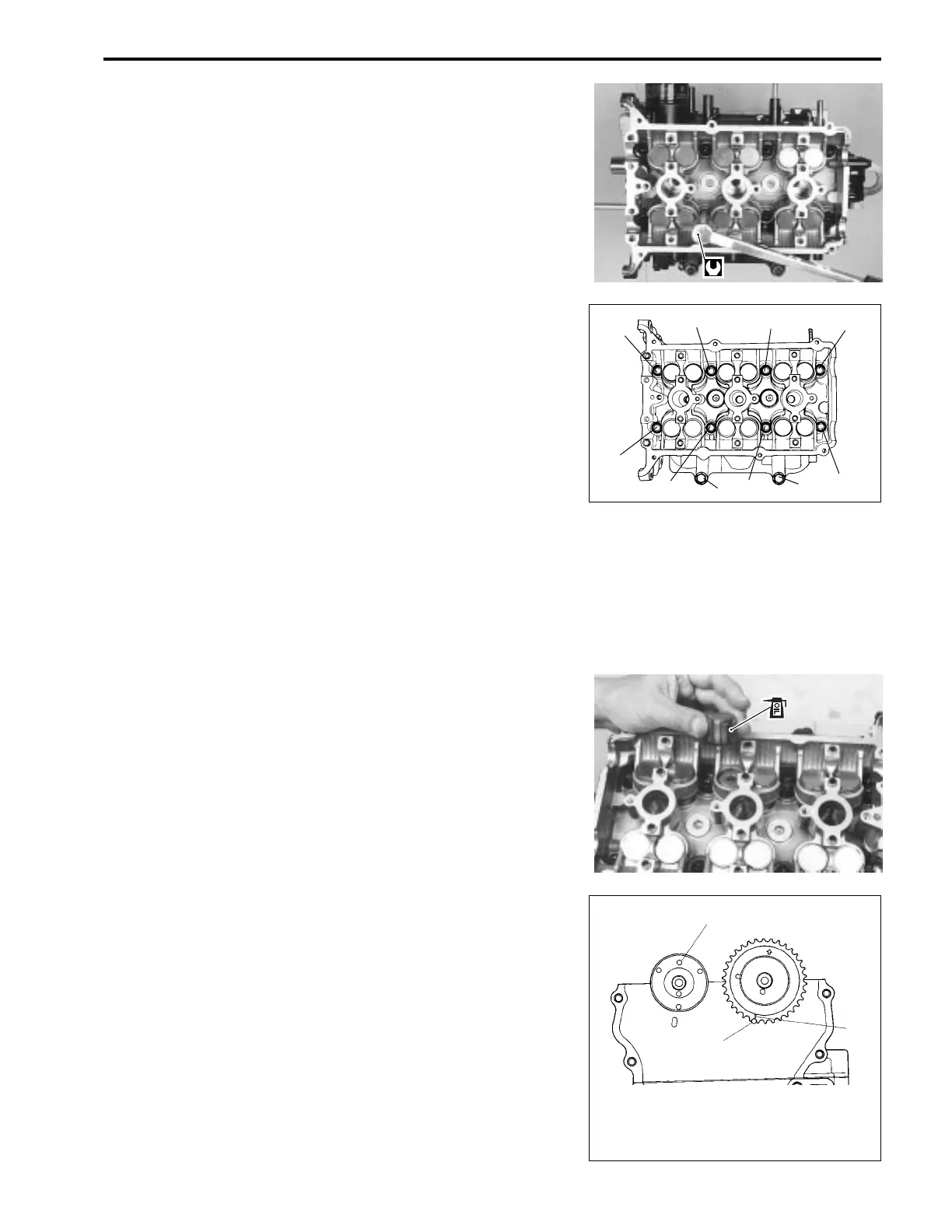

2. Position cylinder head on cylinder.
3. Apply engine oil to cylinder head bolts and tighten them
gradually as follows.
(a) Tighten all bolts to 30 N
.
m (3.0 kg-m, 21.5 lb.-ft.) ac-
cording to numerical order in figure.
(b) Loosen all bolts to 0 N
.
m (0 kg-m, 0 lb.-ft.) according to
reverse order in figure.
(c) Again tighten all bolts to 30 N
.
m (3.0 kg-m, 21.5 lb.-ft.)
according to numerical order in figure.
(d) Finally tighten all bolts to specified torque according to
numerical order in figure.
Cylinder head bolt : 59 N
.
m (6.0 kg-m, 43.4 lb.-ft.)
10
2
4
9
6
7
1
3
5
8
To Next Page
