6-59 POWER UNIT
PISTON TO CYLINDER

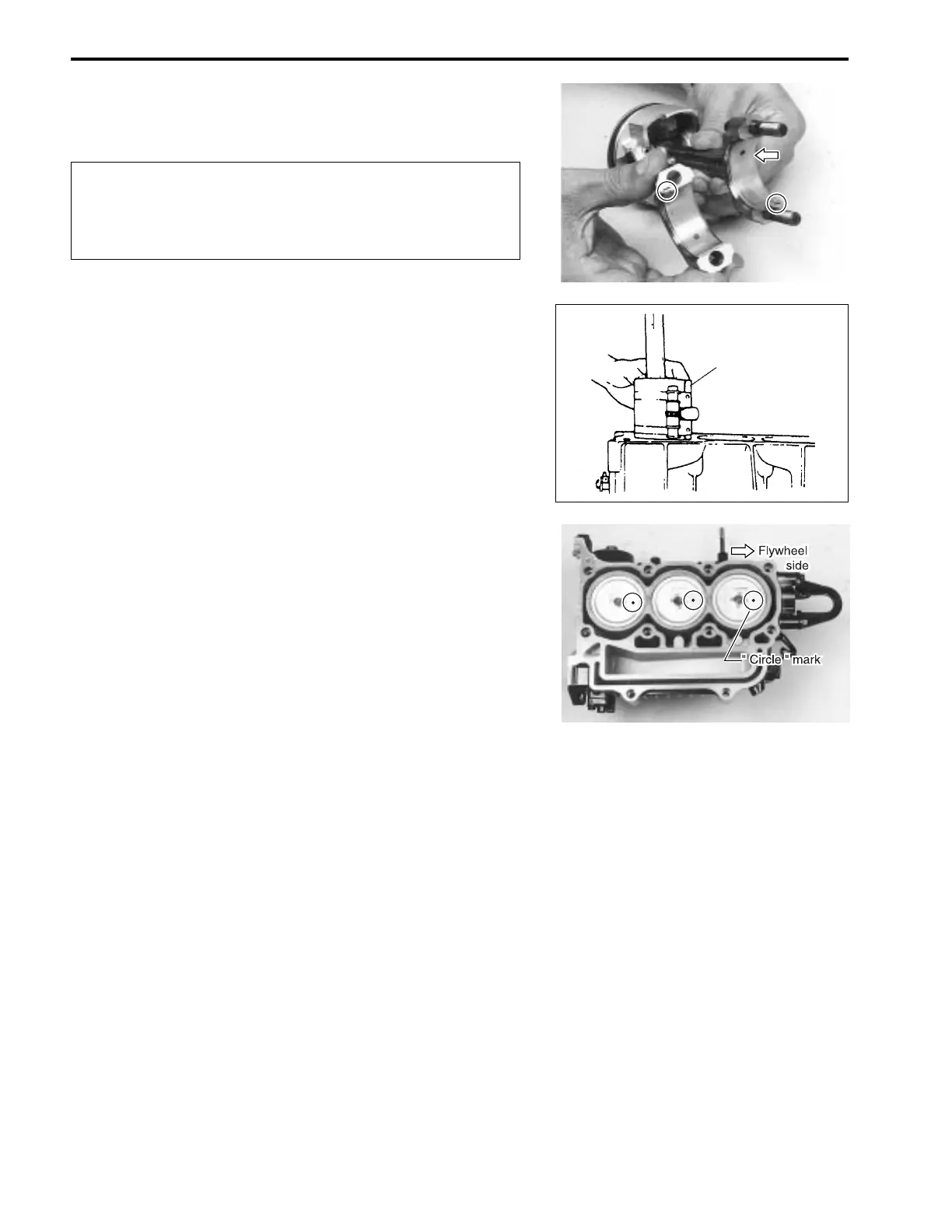

Install conrod bearing to conrod and conrod cap.
B
• Assemble each conrod bearing to its original posi-
tion.
• Do not apply oil between conrod and bearing or be-
tween bearing cap and bearing.
Apply engine oil to piston and cylinder walls.
Insert piston and conrod assembly into cylinder bore from cyl-
inder head side using special tool.
09916-77310 : Piston ring compressor
NOTE:
Position the “circle” mark on piston head to flywheel side.
z
z
