POWER TRIM AND TILT 8-22

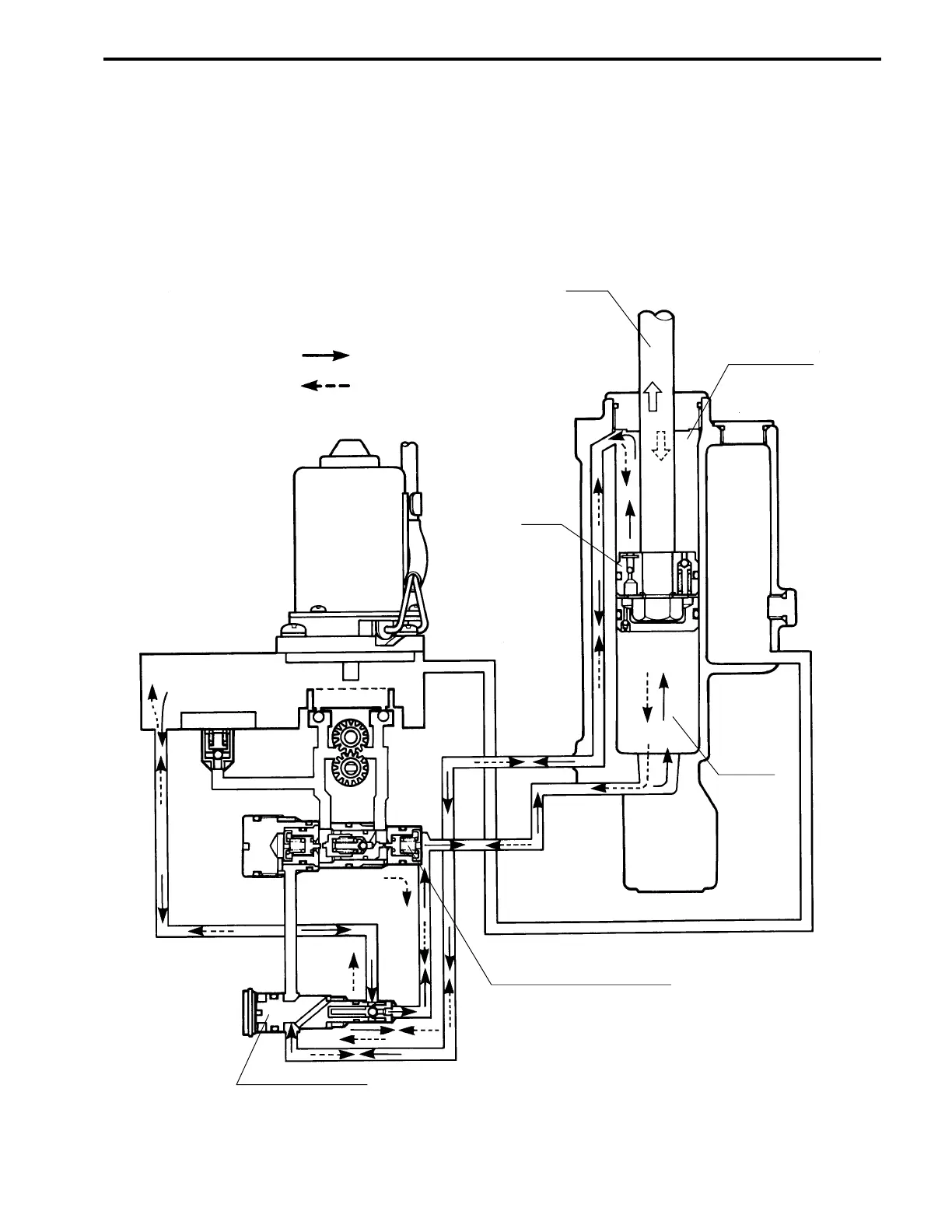

MANUAL RELEASE CIRCUIT (MANUAL VALVE)
Operation:Turn manual valve maximum two (2) full turns counterclockwise.
When the manual valve is loosened, oil will flow unimpeded (without resistance) through the internal pump
tubes, thereby facilitating manual tilting or lowering of the outboard. To hold the engine in a selected position,
the manual valve must be closed again.
Upper cylinder
chamber
Tilt rod
Piston
Lower
cylinder
chamber
“UP” pressure main check valve
Manual release valve
: Tilt up
: Tilt down
