2-11 PERIODIC MAINTENANCE

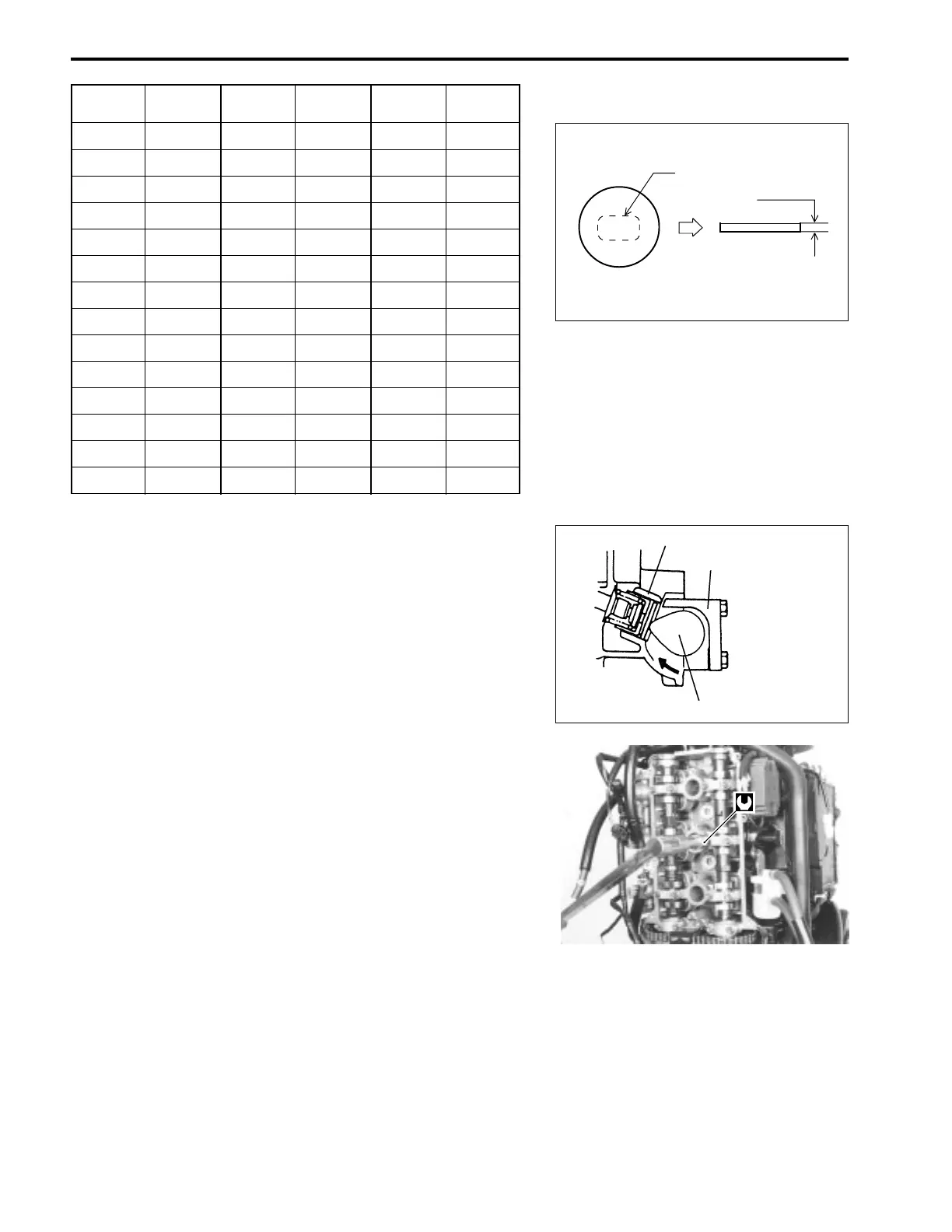

(6) Install shim. Identification number must face towards tap-
pet.
(7) Remove tappet holder.
NOTE:
When removing tappet holder, rotate crankshaft counterclock-
wise to be open (lift up) valve.
(8) Tighten camshaft housing bolts to the specified torque and
recheck tappet clearance.
Camshaft housing bolt :
10 N
.
m (1.0 kg-m, 7.2 lb.- ft.)
NOTE:
After completing tappet clearance adjustment and securing
camshaft housing bolts, inspect tappet clearance again.
Thickness
(mm)
I.D No.
218 2.18 246 2.46 274 2.74
220 2.20 248 2.48 276 2.76
222 2.22 250 2.50 278 2.78
224 2.24 252 2.52 280 2.80
226 2.26 254 2.54 282 2.82
228 2.28 256 2.56 284 2.84
230 2.30 258 2.58 286 2.86
232 2.32 260 2.60 288 2.88
234 2.34 262 2.62 290 2.90
236 2.36 264 2.64 292 2.92
238 2.38 266 2.66 294 2.94
240 2.40 268 2.68 296 2.96
242 2.42
270
2.70 298 2.98
244 2.44 272 2.72 300 3.00
1 Special tool
2 Tappet
3 Camshaft
1
2
3
z
Thickness
(mm)
I.D No.
Thickness
(mm)
I.D No.
@
2.50 mm
250
I.D No.
