22 DF40QH / DF50QH

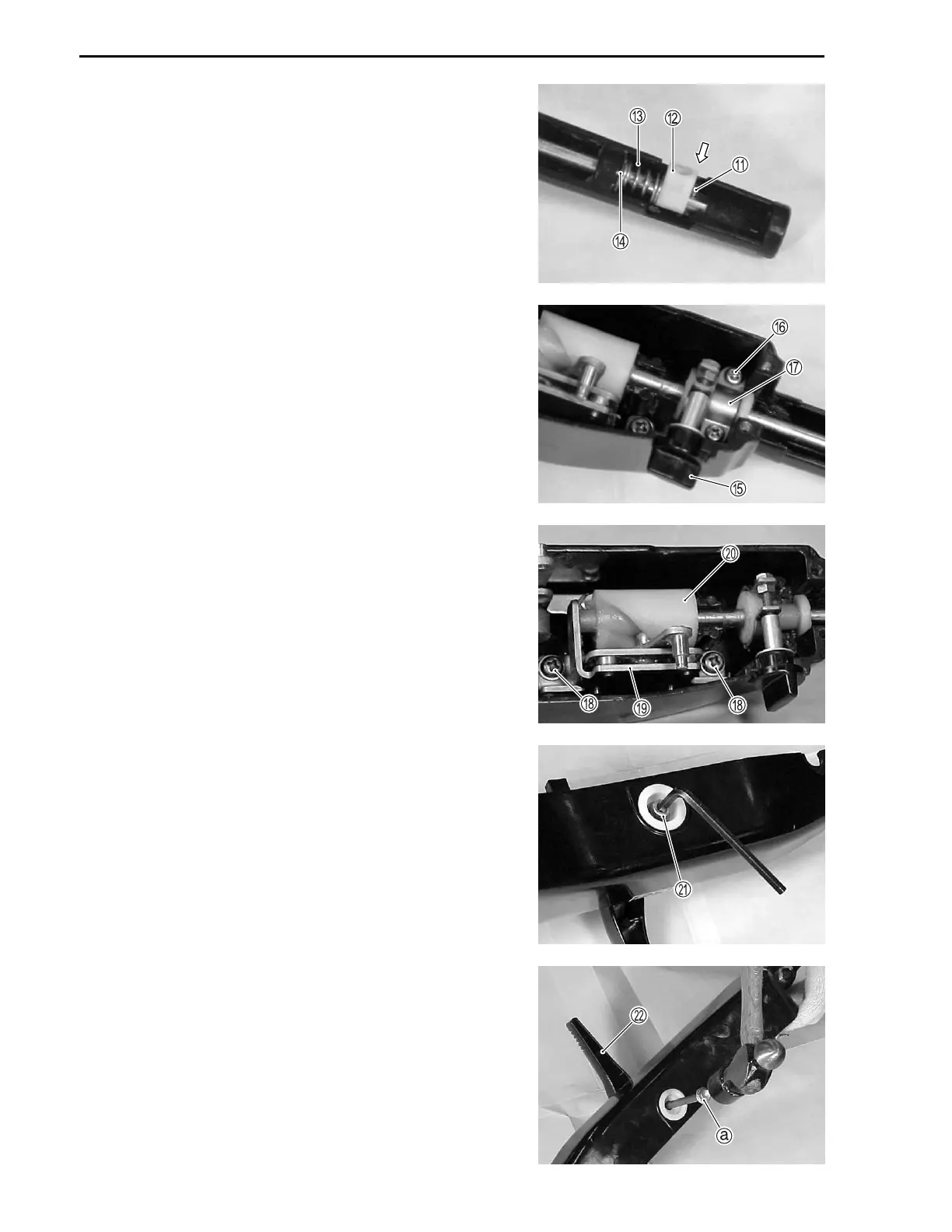

Drive out handle rod stopper pin A, then pull out rod stopper
B, spring C and handle rod bush D.
Loosen handle grip adjuster E.
Remove screws F and handle rod plate G.
Remove the two screws H securing the throttle link I to tiller
handle housing, then remove throttle link I and handle rod
assembly J.
Remove the bolt K securing the shift lever.
Separate the shift lever L by installing 8mm bolt a in shift
lever as shown in figure.
Using a hammer, tap on bolt head until the shift lever sepa-
rates, then remove 8mm bolt.
