3-52 ENGINE CONTROL SYSTEM

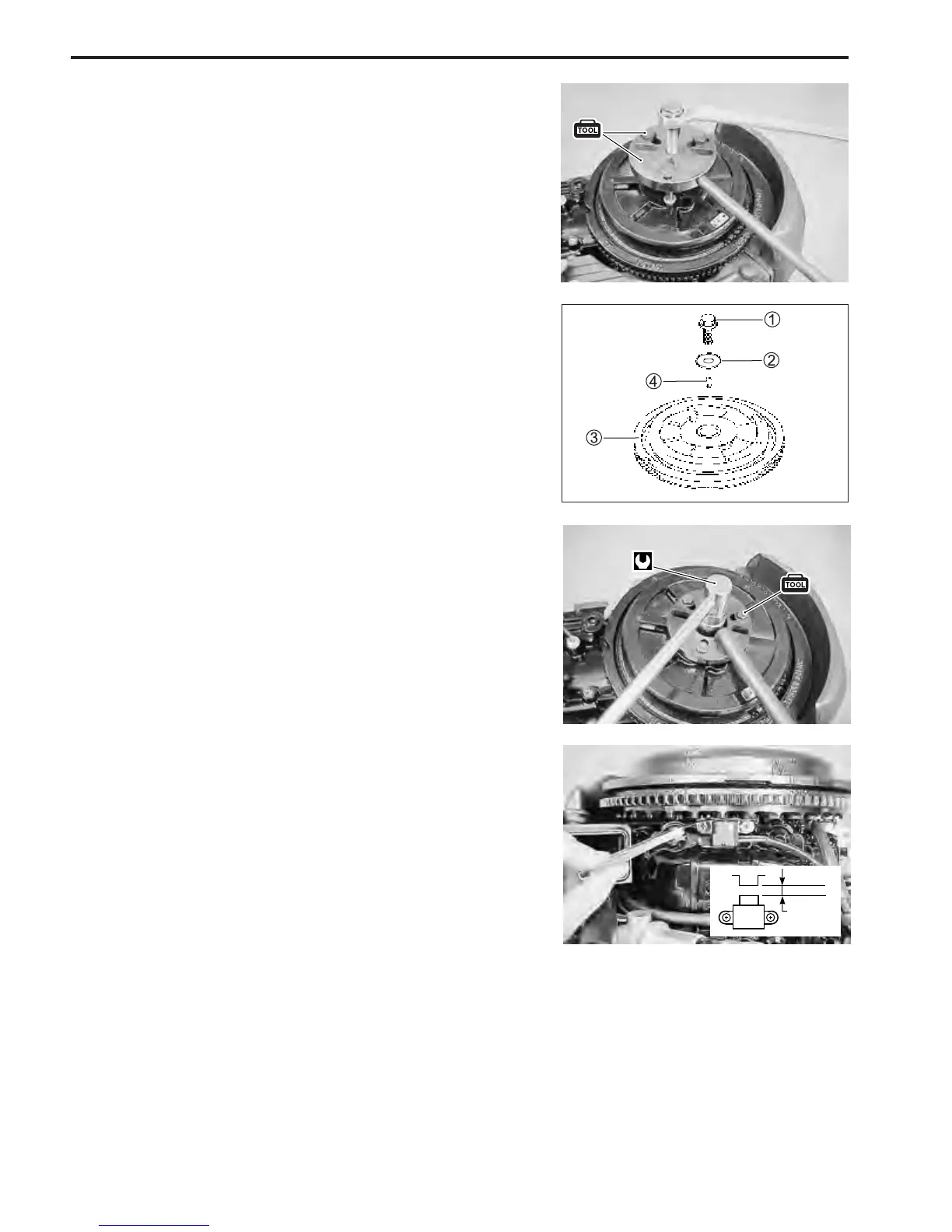

3. Using special tools, loosen flywheel from crankshaft.
\ 09930-39411 : Flywheel remover
09930-39420 : Flywheel remover bolt
4. Remove flywheel bolt 1, washer 2, flywheel 3 and key
4.
• Clean flywheel and crankshaft mating surfaces with cleaning
solvent.
• Apply engine oil lightly to flywheel bolt before installing.
• Tighten flywheel bolt to specified torque.
\ 09930-48720 : Flywheel holder
""
""
" Flywheel bolt : 245 N
.
m (24.5 kg-m, 177.0 lb.-ft.)
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
• Measure air gap between CKP sensor and reluctor bars on
flywheel magneto. (See page 3-53)
Air gap : 0.75 mm (0.030 in.)
0.75mm
