8-10 POWER TRIM AND TILT
PTT MOTOR
See PTT MOTOR INSTALLATION section on page 8-14.
AIR BLEEDING
• Pour recommended PTT fluid in to reservoir until specified
level.
• Perform air bleeding procedure.
See AIR BLEEDING section on page 8-3.
PTT MOTOR
PTT MOTOR REMOVAL
NOTE:
Before removing PTT motor, wash the PTT body with a stiff
bristle brush and hot, soapy water to remove sand or dirt and
dry PTT body with compressed air.

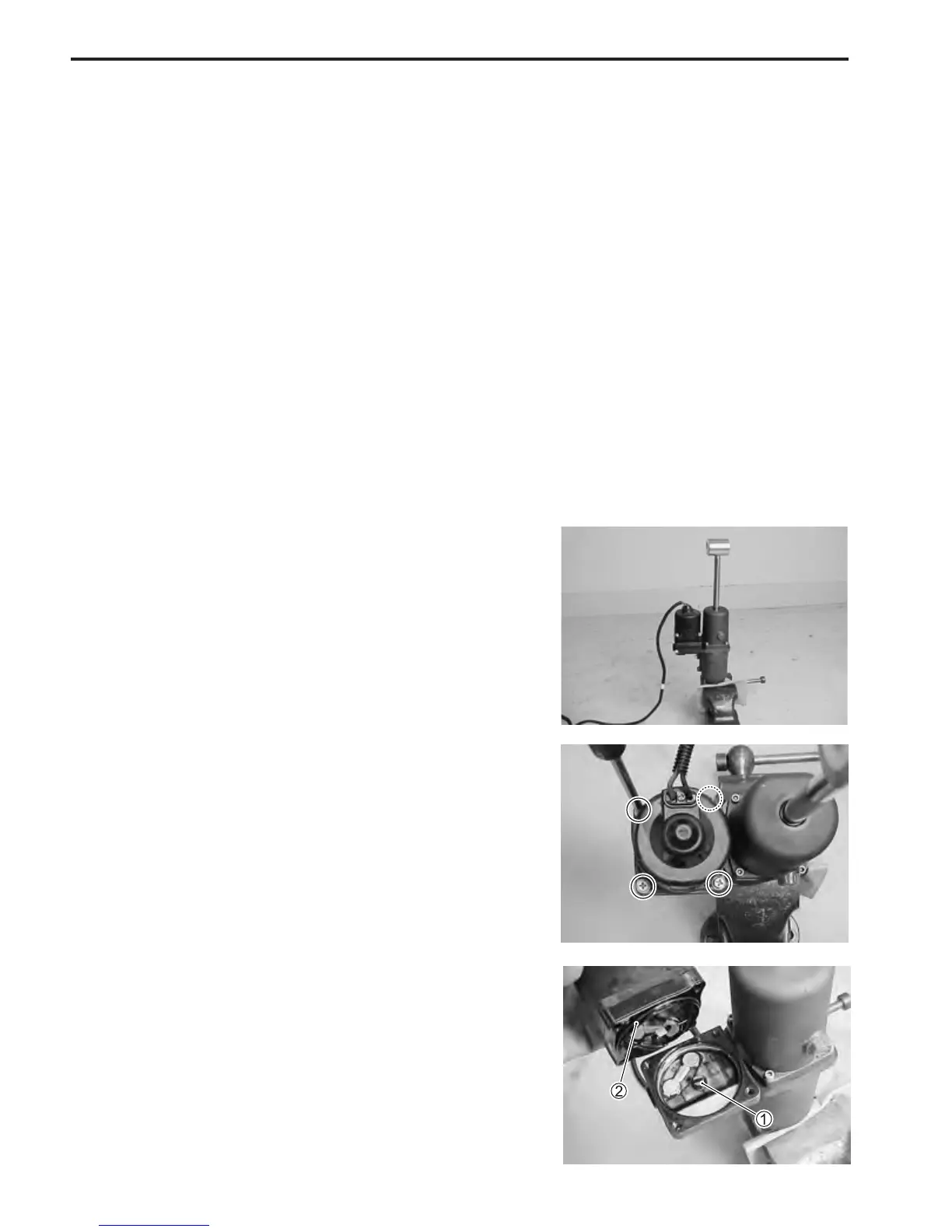

1. Place lower mounting eye of PTT cylinder in a vise. Tighten
vise only enough to secure PTT unit, do not over tighten.
NOTE:
To prevent damage to PTT cylinder use wood blocks, vise jaw
protectors, etc., between vise jaws and PTT components be-
fore tightening vise.
2. Remove four bolts securing PTT motor to PTT pump
case.
3. Detach PTT motor from PTT pump case.
Note position of drive joint 1 and O-ring 2 and remove
them.
