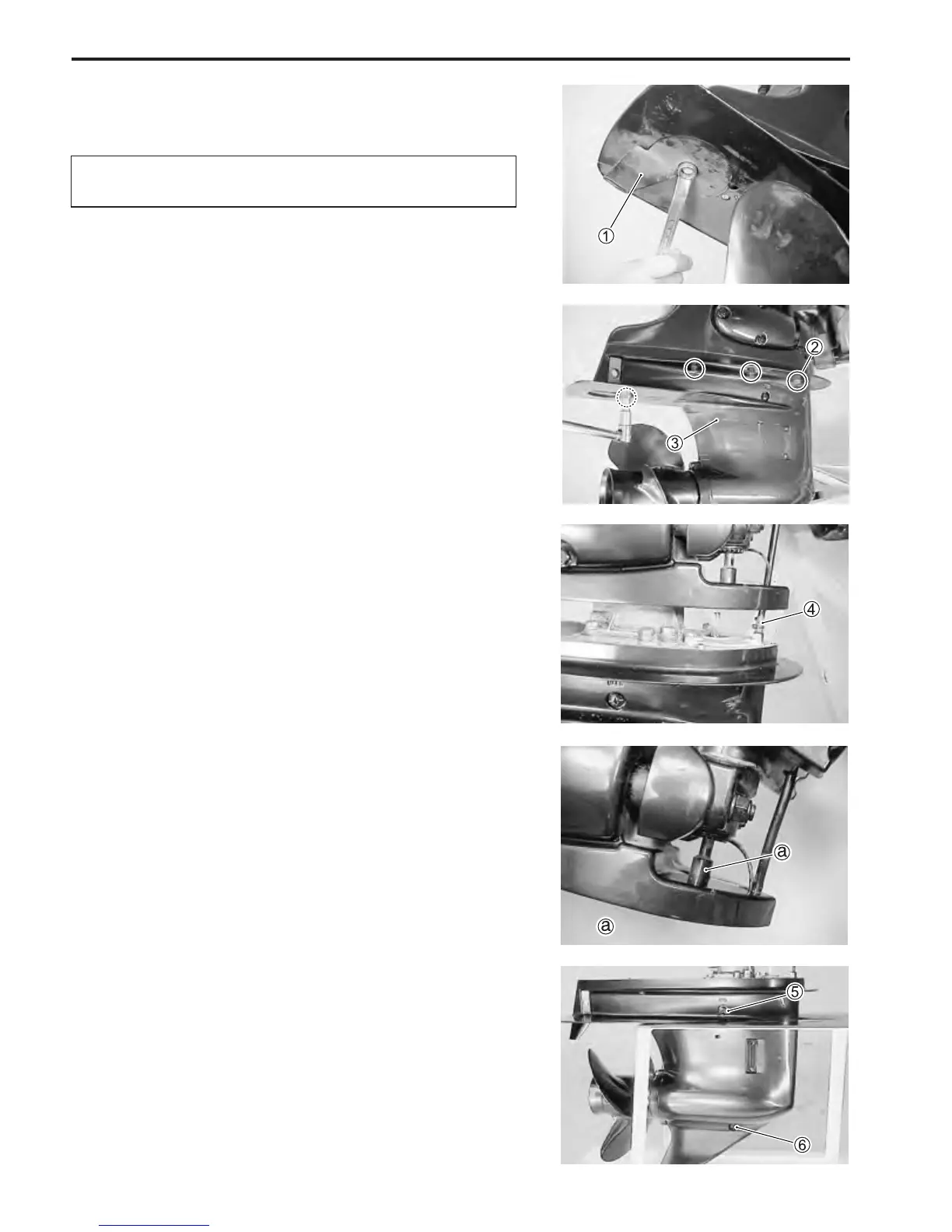

9-2 LOWER UNIT
REMOVAL & DISASSEMBLY
#
Always disconnect the battery cable, before remov-
ing lower unit.
1. Shift to “NEUTRAL” position.
2. Remove bolt and trim tab 1.
3. Remove seven (
7
) bolts 2 and separate gearcase 3 from
driveshaft housing.
4. Remove clutch rod from clutch shaft (if necessary).
5. Place a drain pan under oil drain plug.
Remove oil drain plug 6 first then oil level plug 5 and
allow gear oil to drain.
Inspect oil for water, contaminates or metal.
Clutch rod
Clutch rod
NOTE:
Before gearcase is removed completely, disconnect speed-
ometer pick up tube
4
from gearcase.
