DF100 “K9” (’09) MODEL 19-21

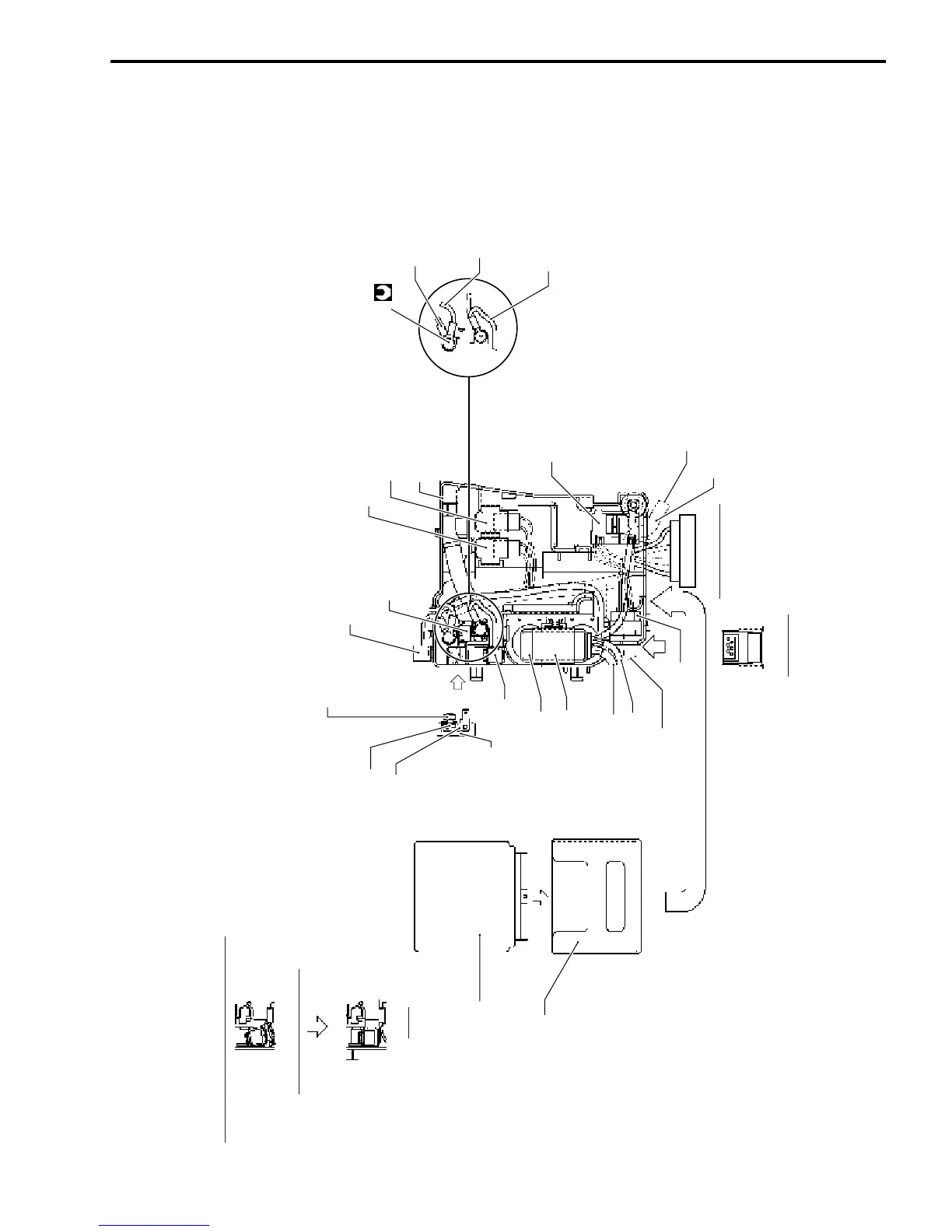

WIRE ROUTING
B
Fuse terminal nut
Fuse terminal bolt
Main fuse terminal
Electric parts holder
SDS communication connector/cap
Fuse
Starter relay
Electric parts holder
Main wiring harness
ECM Connector
to ignition coil and fuel injector
to remote control connector
Joint connector (24P)
Joint connector (14P)
4.5 N
.
m (0.45 kg-m)
to PTT relay
to PTT motor
PTT relay Fuse (30 A)
PTT relay holder
to PTT switch
to starter motor
to fuse (white)
VIEW B
ECM
Cushion
ECM main relay
PROCEDURE OF FUSE SETTING
ROTATION & CLOCK
SET

Suzuki DF 90 Specifications

General

Steering	Remote
Starting System	Electric
Number of Cylinders	4
Trim Method	Power Trim and Tilt
Full Throttle Operating Range	5, 500 - 6, 300 rpm
Fuel System	Multi-point sequential electronic fuel injection
Ignition System	Fully-transistorized
Exhaust	Through Prop Hub Exhaust
Shaft Length	508 mm (20 in), 635 mm (25 in)
Fuel Type	Unleaded gasoline (87 octane or higher)
