DF90/115/140 “K5” (’05) MODEL
TRANSOM BOLT

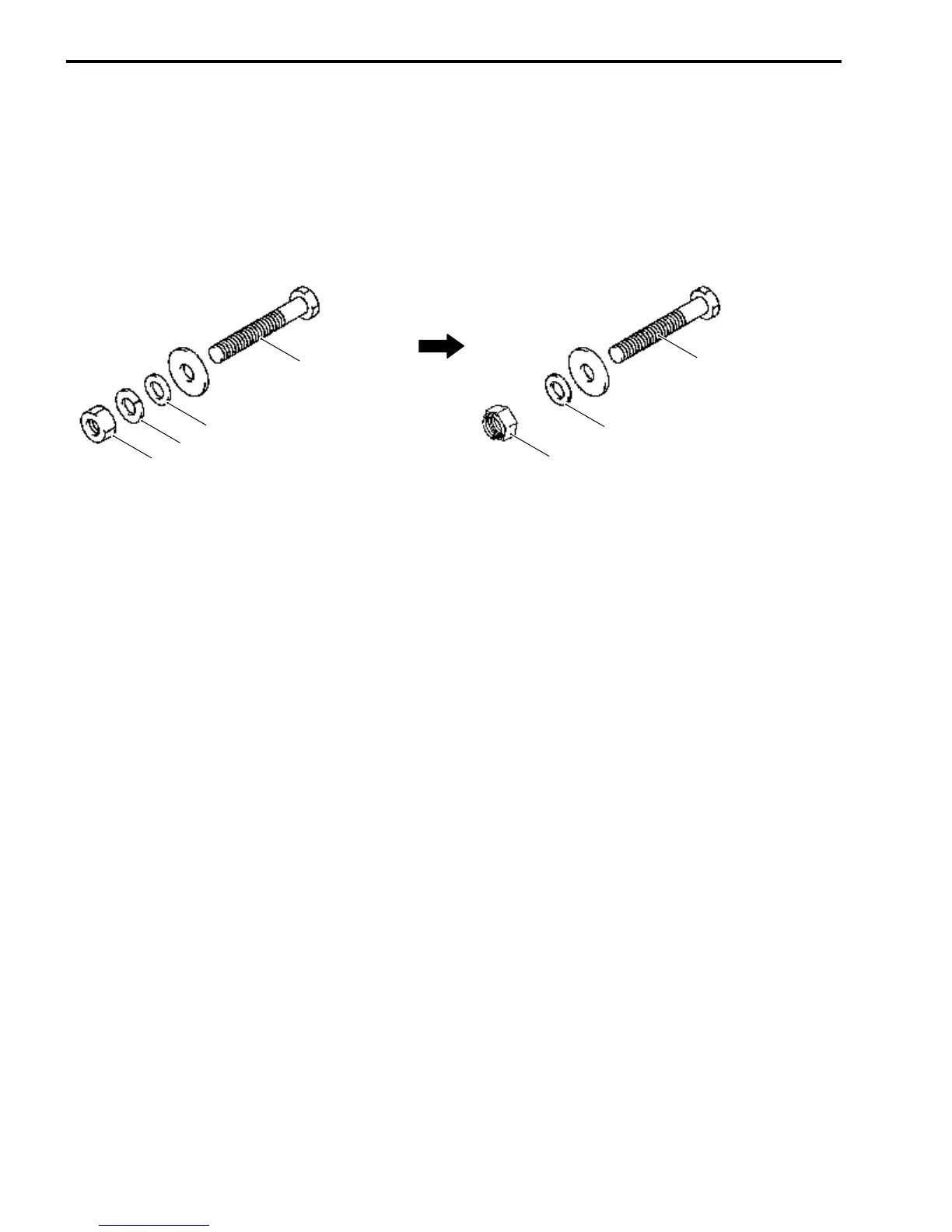

The transom bolt and related parts have been changed as shown below:
The transom bolt has been changed in thread pitch from 1.75 mm to 1.25 mm.
The lock washer has been eliminated.
The plane washer (O.D. 22 mm) has been changed in thickness from 2.5 mm to 3.0 mm.
The nut has been changed to lock nut.
Bolt
(Thread pitch: 1.75 mm)
Plane washer (Thickness: 2.5 mm)
Lock washer
Nut
Bolt
(Thread pitch: 1.25 mm)
Plane washer (Thickness: 3.0 mm)
Lock nut
