ENGINE CONTROL SYSTEM 3-51
245 N·m
(24.5 kg-m, 177.0 lb.-ft.)
Crankshaft
NOTE:
Clean flywheel and crankshaft mating
surfaces with cleaning solvent.

REMOVAL / INSTALLATION
FLYWHEEL

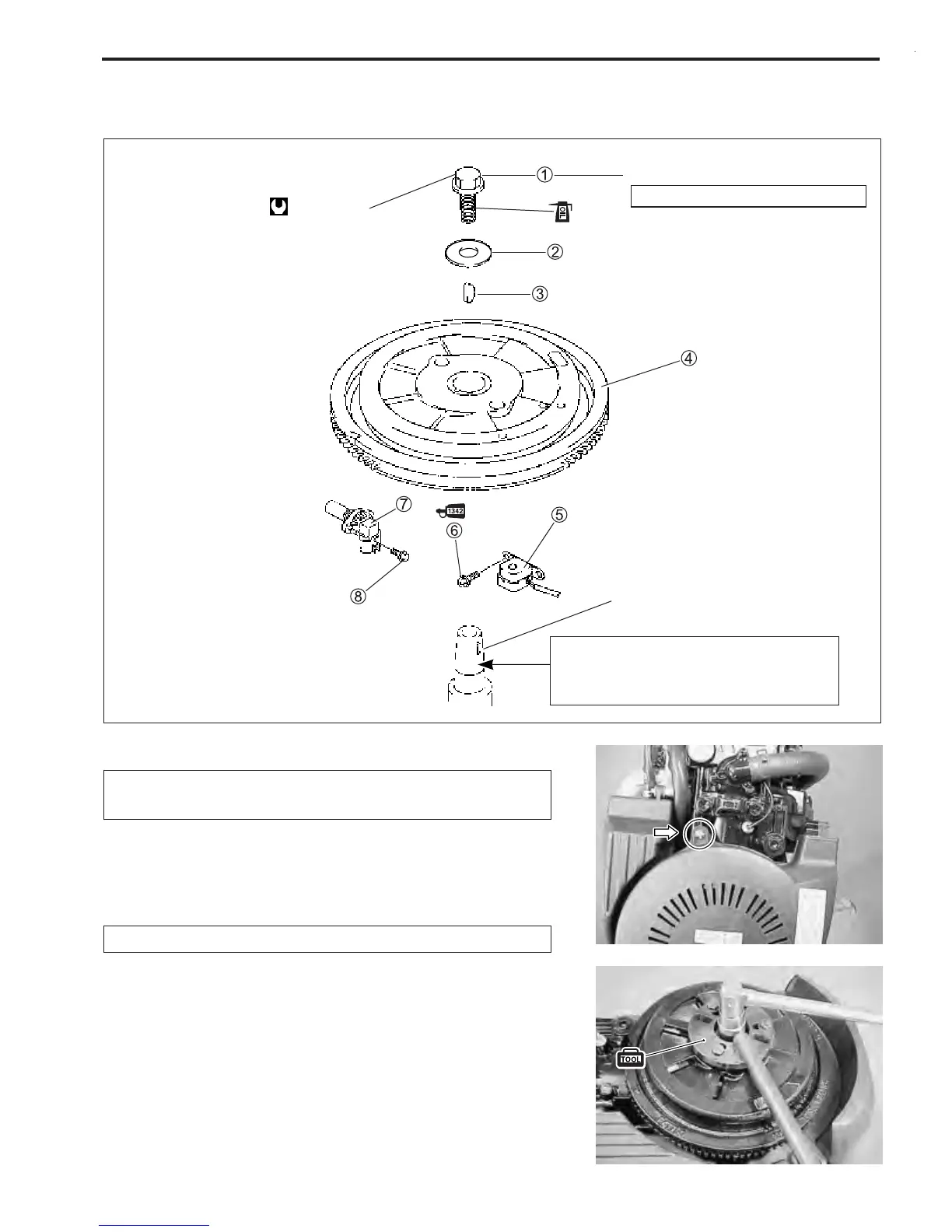

1 Flywheel bolt
2 Washer
3 Key
4 Flywheel
5 CKP sensor
6 Bolt
7 CMP sensor
8 Bolt
REMOVAL
Prior to removing flywheel :
• Disconnect battery cables from battery.
1. Remove flywheel cover.
2. Loosen flywheel bolt 2 – 3 turns to right direction.

Flywheel bolt is a left hand (LH) thread.
\ 09930-48720 : Flywheel holder
NOTE:
Do not remove flywheel bolt at this time.
This bolt prevents damage to crankshaft when using flywheel
remover tools.
Flywheel bolt is a left hand thread.
