5-14 FUEL SYSTEM
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
• Before installing fuel pump, rotate the crankshaft to
bring No.1 (top cylinder) piston to Top Dead Center
on compression stroke.
• Do not re-use O-ring once removed. Always use a
new O-ring.
" Low pressure fuel pump bolt :
10 N
m (1.0 kg-m, 7.0 lb.-ft.)

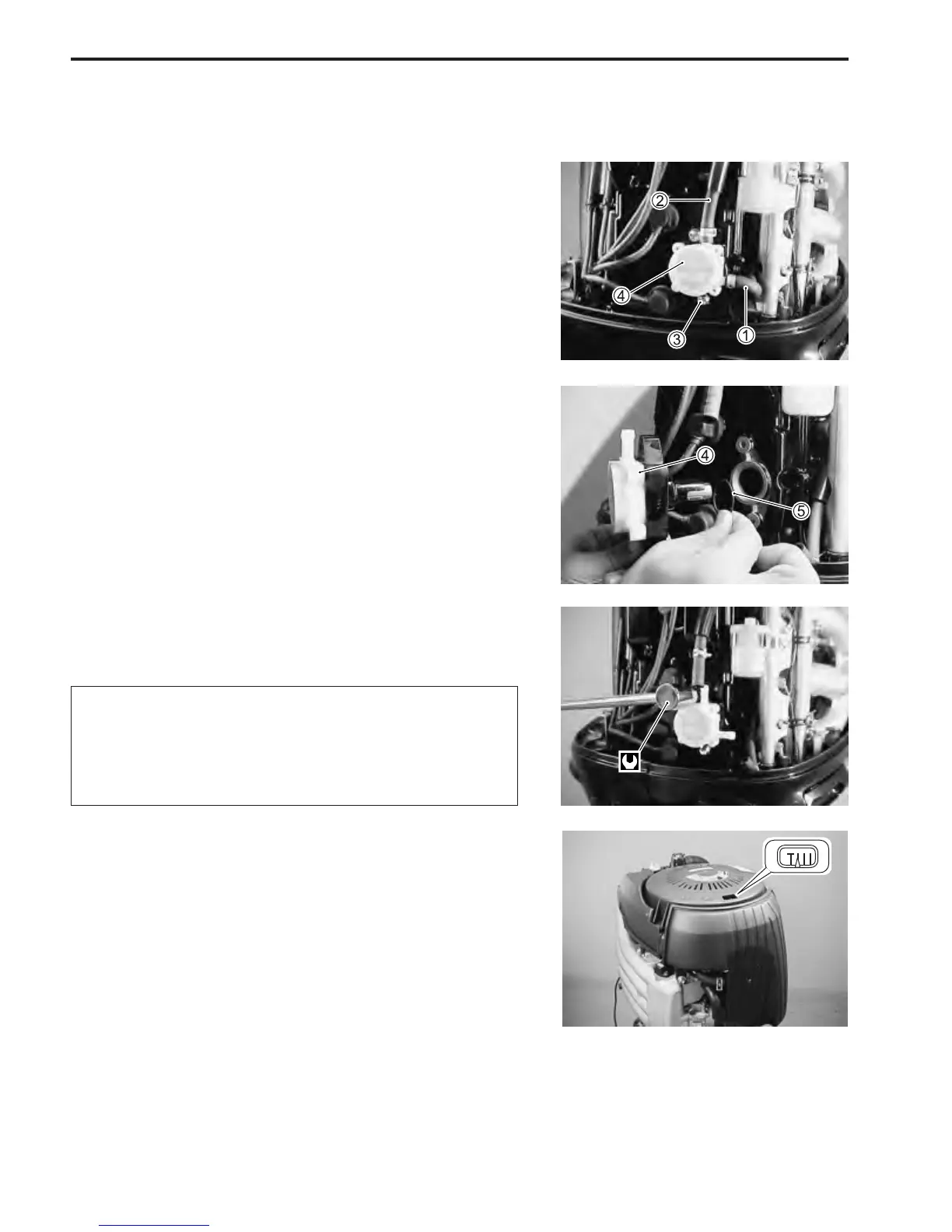

LOW PRESSURE FUEL PUMP
REMOVAL / INSTALLATION
REMOVAL
1. Disconnect inlet hose 1 and outlet hose 2 from low pres-
sure fuel pump.
2. Remove two bolts 3.
3. Remove fuel pump 4.
Note position before removing O-ring 5.
To Next Page
