Suzuki DF 90 - Wire;Hose Routing

DF90/115/140 “K5” (’05) MODEL 15-27

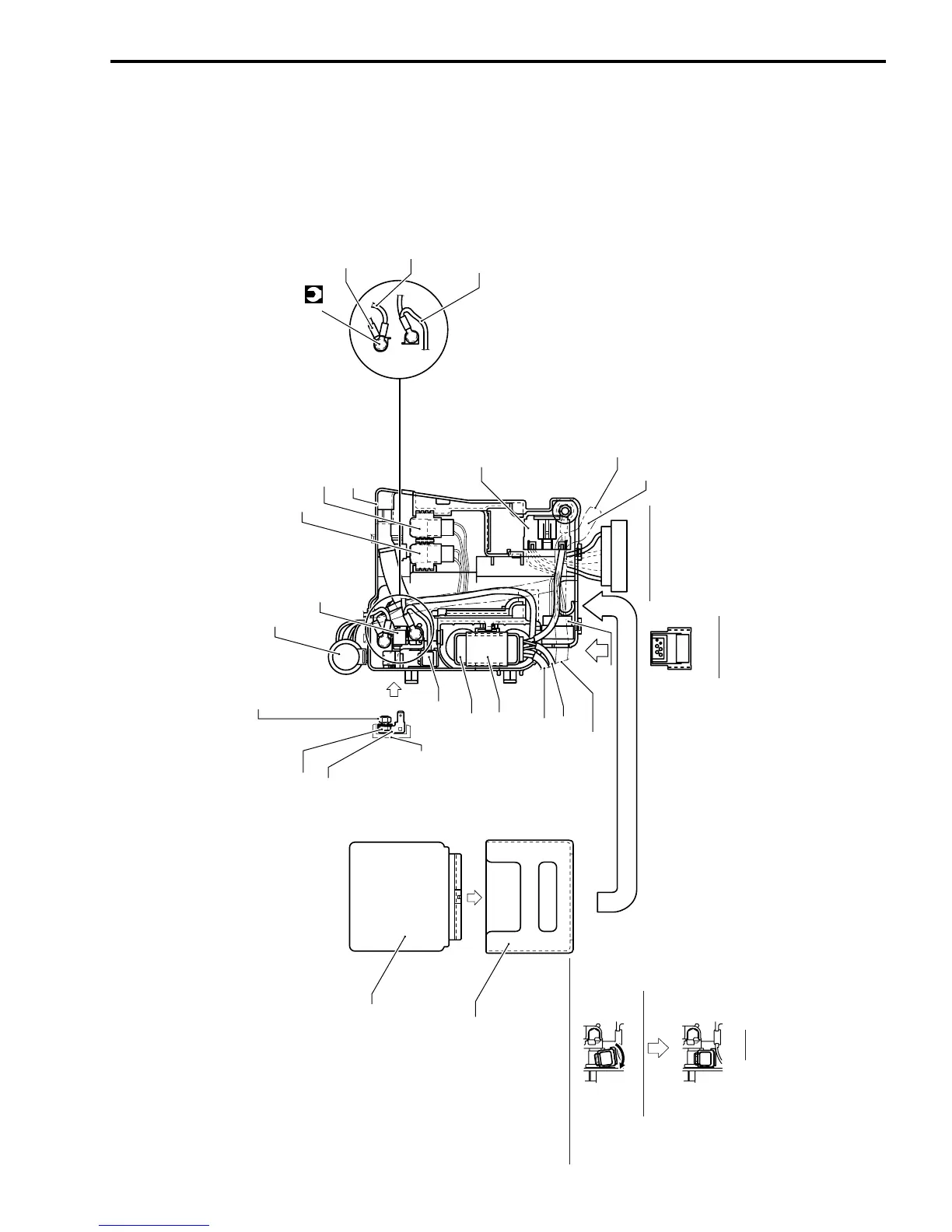

WIRE/HOSE ROUTING
B
Fuse terminal nut
Fuse terminal bolt
Main fuse terminal
Electric parts holder
Communication connector cap
Fuse
Starter relay
Electric parts holder
Main wiring harness
ECM Connector
to ignition coil and fuel injector
to remote control connector
Joint connector (24P)
Joint connector (14P)
4.5 N
.
m (0.45 kg-m)
to PTT relay
to PTT motor
PTT relay Fuse (30 A)
PTT relay holder
to PTT switch
to starter motor
to fuse (white)
VIEW B
PROCEDURE OF FUSE SETTING
ROTATION & CLOCK
SET
ECM
Cushion
ECM main relay
