14-22
DF90/115/140 “K4” (’04) MODEL

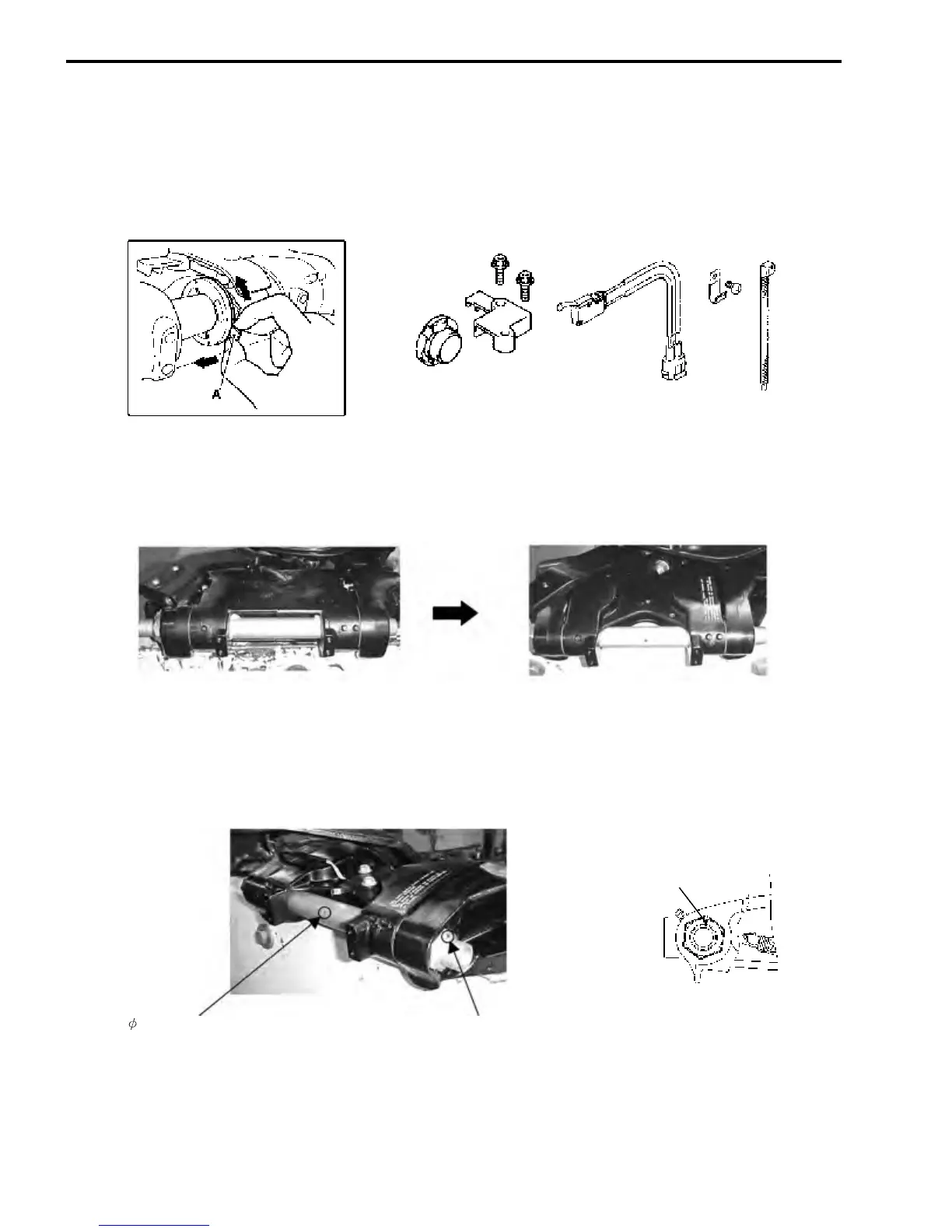

TILT LIMIT SWITCH SYSTEM
To adjust the maximum tilt position, the tilt limit switch system has been added on the clamp bracket shaft.
Adjusting procedure:
To reduce the amount of tilt, move the tab “A” of cam upward.
To increase the amount of tilt, move the tab “A” of cam downward.
SWIVEL BRACKET
In accordance with the additional of the tilt limit switch system, the swivel bracket has been changed in
shape and machining.
CLAMP BRACKET SHAFT
In accordance with additional of the tilt limit switch, the hole and paint marking have been added on the
clamp bracket shaft.
NOTE:
Install the clamp bracket shaft with “Red” paint marking toward up side.
Early Late
“Red” paint marking
“Red” paint marking
3.2 mm hole
