Suzuki DF 90 - Monitor-Tachometer; Inspection

4-24 ELECTRICAL
MONITOR-TACHOMETER
INSPECTION
MONITOR LAMP CHECK

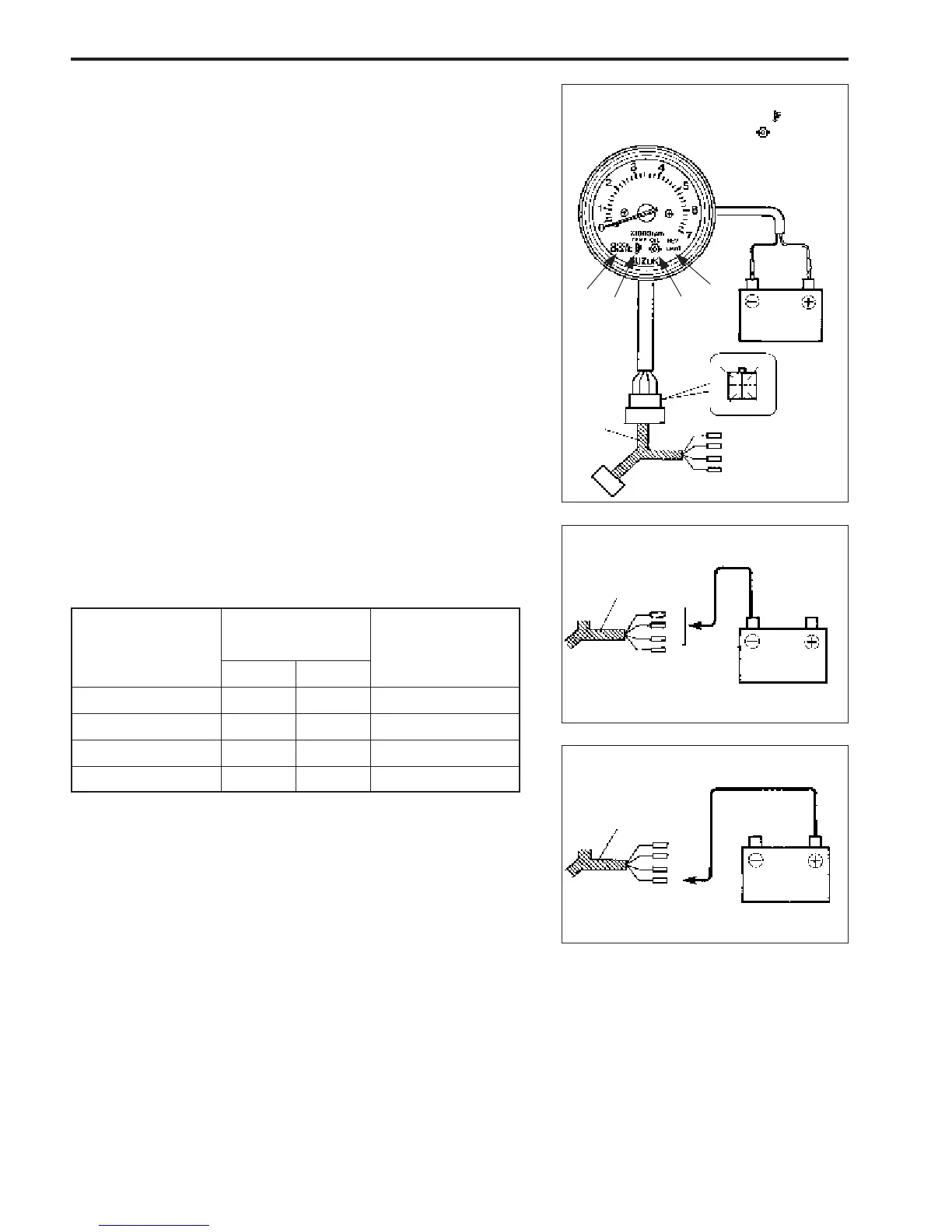

1. Connect test cord as shown in figure .
\ 09930-89240 : 4-pin test cord
NOTE:
This check can be performed without test cord (P/no. 09930-
89240). If it is not available, directly connect battery to termi-
nal of meter.
2. Apply 12V power to meter. Connect Gray wire to positive +
terminal, and Black wire to negative - terminal of battery.
3. Check if lamp lights when connecting battery to test cord
terminal as shown.
Battery terminal
Terminal for
battery connection
Test cord Meter
Lighting lamp
Negative - Bl G/W Lamp 1
Negative - W G/Y Lamp 2
Negative - Y Bl/B Lamp 3
Positive + R P Lamp 4
1
2
3
4
BGr
12V
Battery
P
G/W
G/Y
Bl/B
11
11
1 “CHECK ENGINE”
22
22
2 TEMP “ ”
33
33
3 OIL “ ”
44
44
4 REV “LIMIT”
12V
Battery
12V
Battery
Bl
W
Y
R
Monitor lamp check :
If out of specification, replace monitor-tachometer.
\
\
\
