4-14 ELECTRICAL

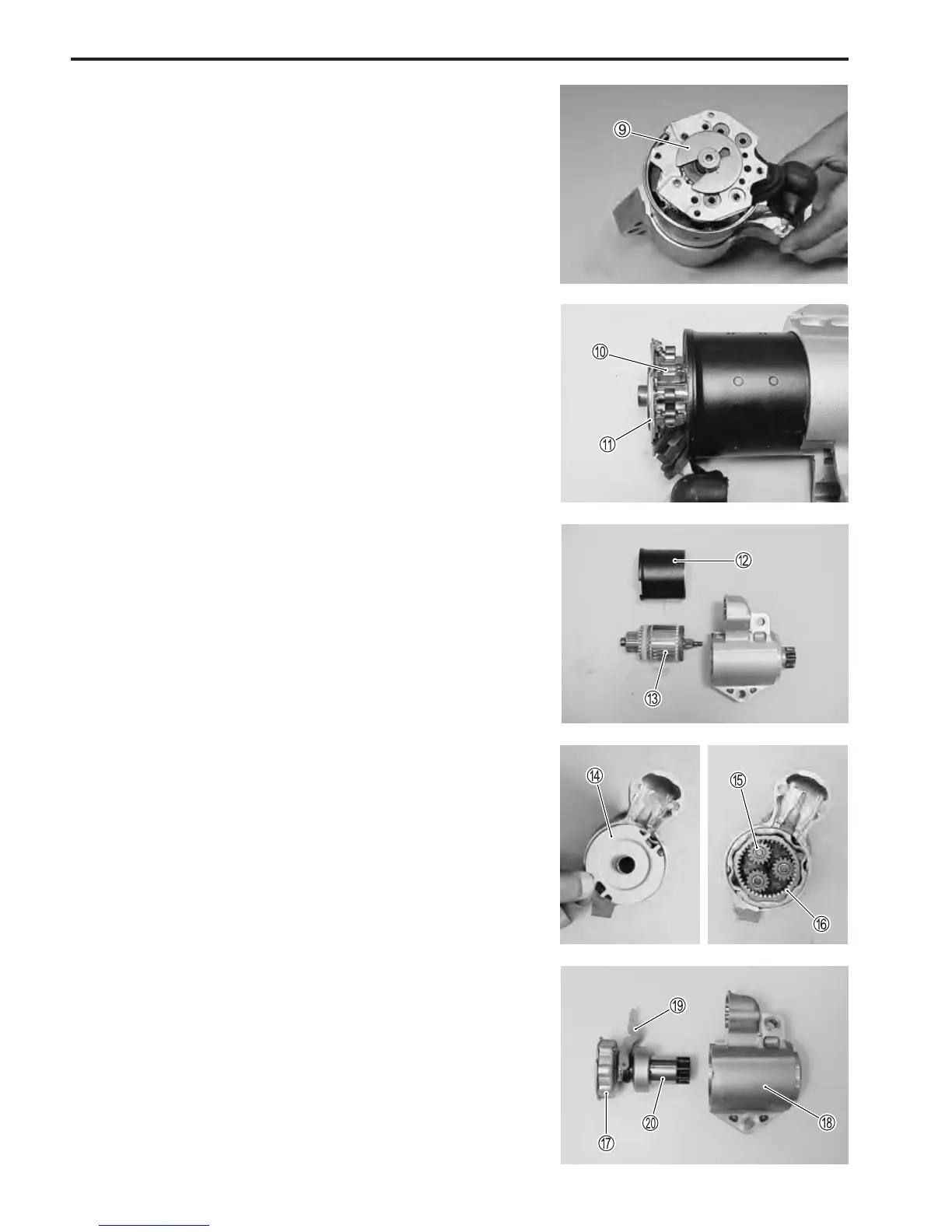

5. Remove thrust washer 9 with screwdriver.
6. Pull brush spring 0 up so that brush is separated from
surface of commutator, then remove brush holder A.
7. Remove yoke B and armature C.
8. Remove center cover plate D.
9. Remove planetary gears E and internal gear F.
10. Remove center bracket G (with shift lever I, pinion J
and pinion shaft K) from front housing H.
