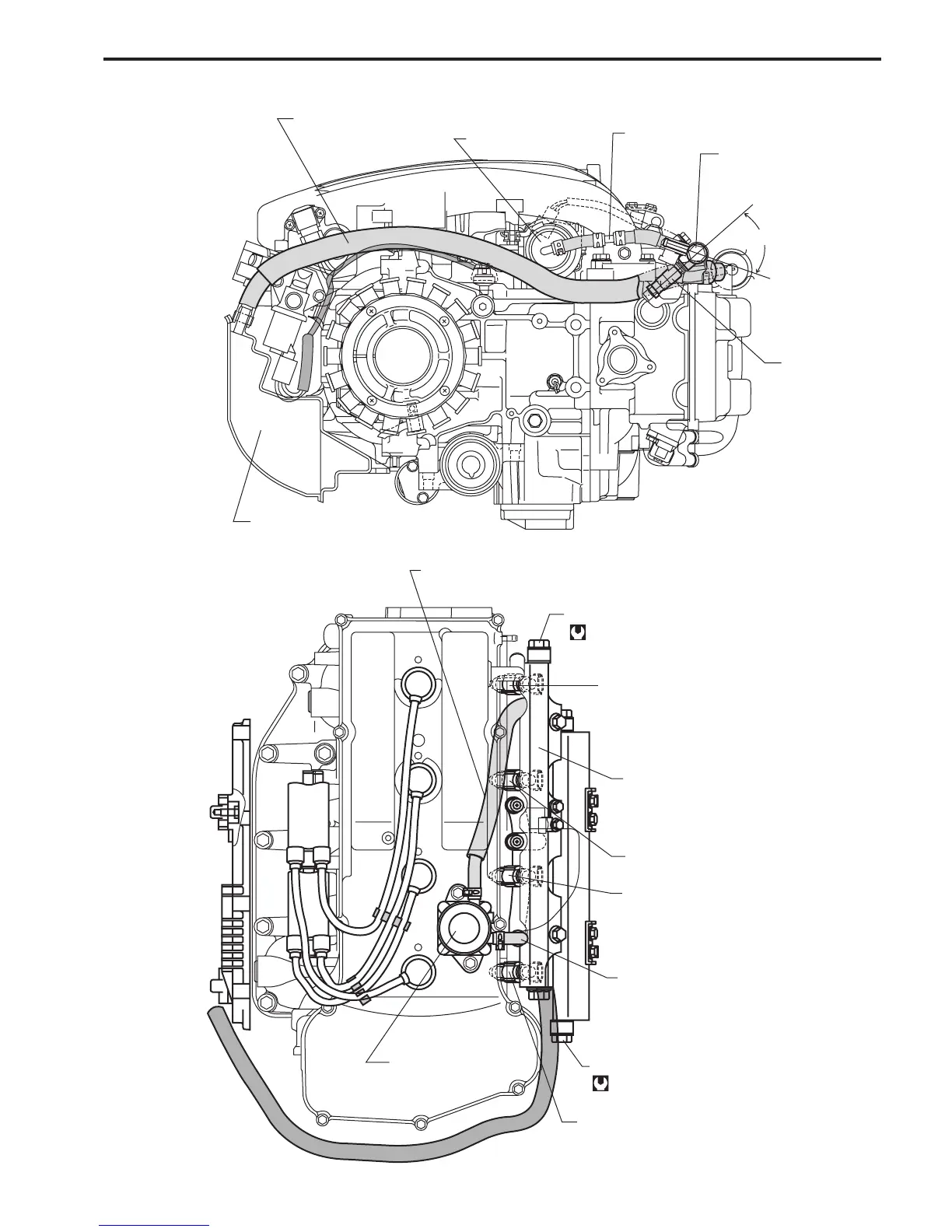

WIRE / HOSE ROUTING 10-11
Breather hose / Protector
High pressure fuel filter
3-way joint
Fuel delivery pipe union
Fuel injector
Silencer
Upper union bolt
35 N
.
m(3.5 kg-m, 25.5 lb-ft)
Fuel injector
Fuel delivery pipe
Fuel injector
Fuel injector
Fuel hose / Protector
(Low pressure fuel pump
to Low pressure fuel filter)
Fuel injector
Low pressure fuel pump
Fuel hose / Protector
(Low pressure fuel pump to Fuel vapor separator)
60˚
Lower plug
35 N
.
m(3.5 kg-m, 25.5 lb-ft)
