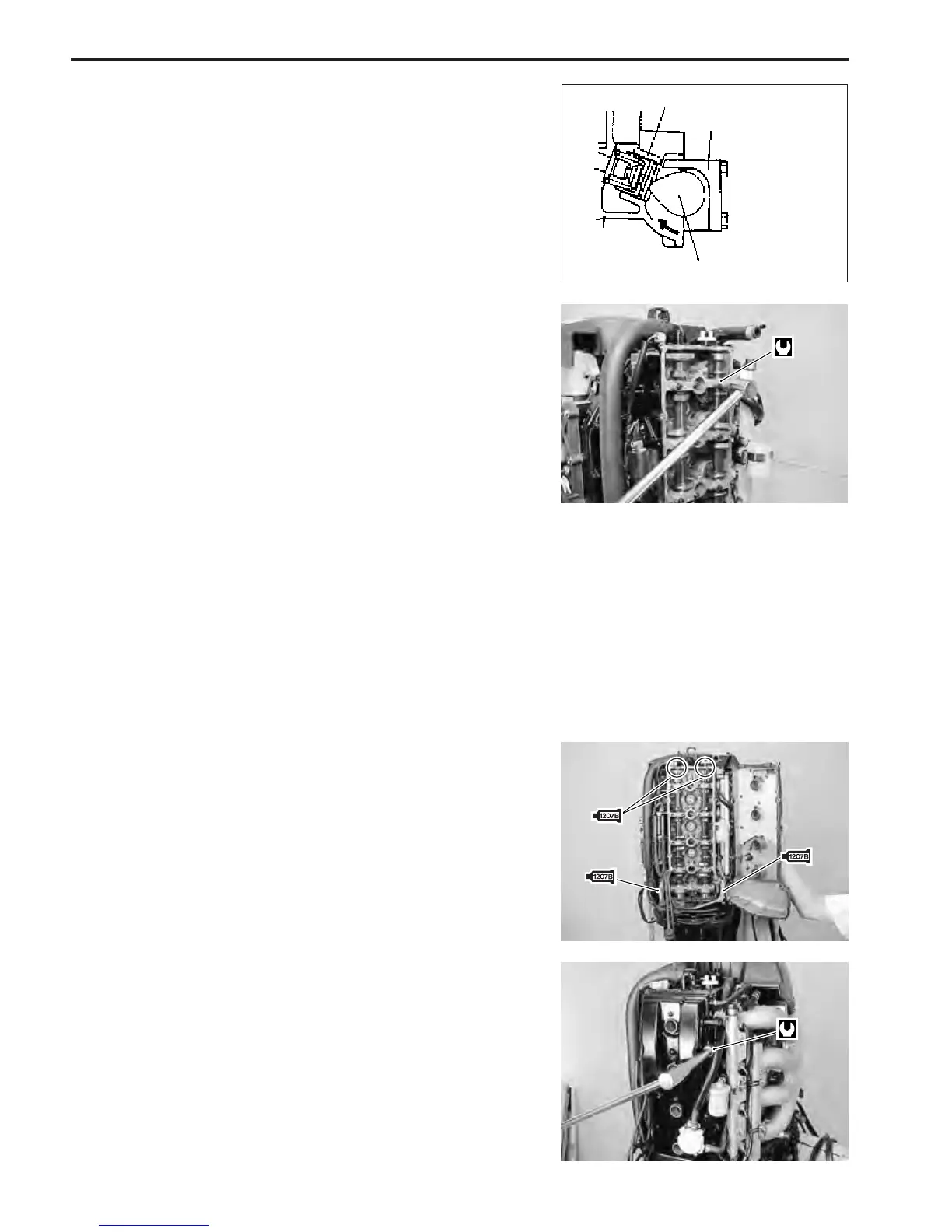

2-12 PERIODIC MAINTENANCE
INSTALLATION
After checking and adjusting all tappet clearances, install cylin-
der head cover. Installation is reverse order of removal.
(See page 6-10)
" Cylinder head cover bolts :
11 N
.
m (1.1 kg-m, 7.0 lb.-ft.)
6. Install shim. Identification number should face towards tap-
pet.
7. Rotate crankshaft to be open (lift up) valve.
8. Remove tappet holder 1 and tighten camshaft housing bolts
to specified torque.
" Camshaft housing bolt :
11 N
.
m (1.1 kg-m, 8.0 lb.-ft.)
9. Recheck tappet clearance.
NOTE:
After completing tappet clearance adjustment and securing
camshaft housing bolts, inspect tappet clearance again.
1 Special tool
2 Tappet
3 Camshaft
1
2
3
\
