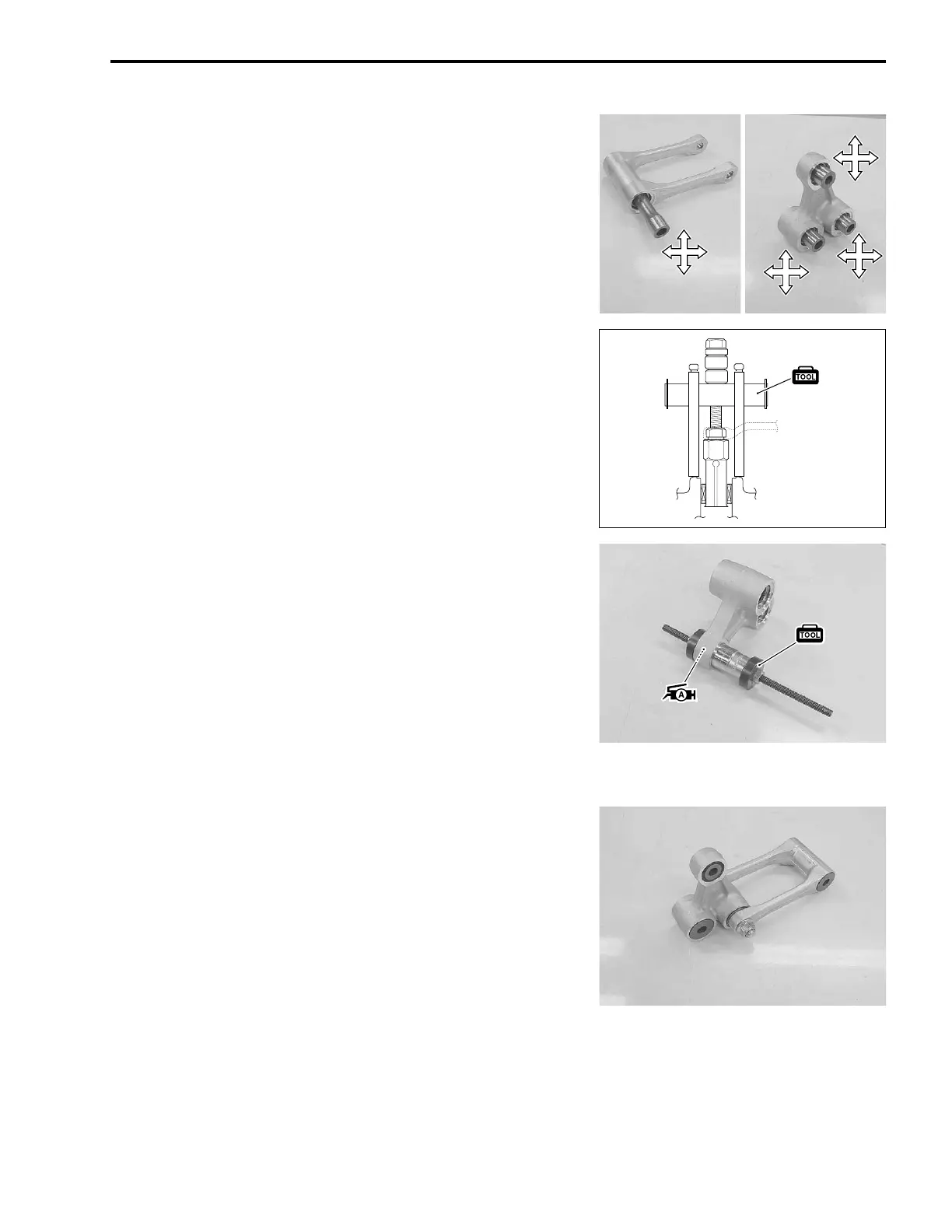

REAR SUSPENSION 16-21
• Insert the spacers into the bearings and inspect them for
excessive play and smooth movement.
BEARING REMOVAL
• Remove the bearings with the special tool.
# 09921-20240: Bearing remover set
BEARING INSTALLATION
• Apply grease to the bearings.
$ 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
• Press the bearings with the special tool and suitable size
socket wrench.
# 09924-84521: Bearing installer set
NOTE:
Position the bearings by refering to the illustration of page
16-22.
REASSEMBLY
Reassemble and remount the rear suspension linkage in the
reverse order of removal and disassembly. Pay attention to the
following points:
• Apply grease to the spacers, dust seals and bearings.
$ 99000-25030: SUZUKI SUPER GREASE “A” (USA)
99000-25010: SUZUKI SUPER GREASE “A” (Others)
