MAGNETO ROTOR AND STATOR 7-3

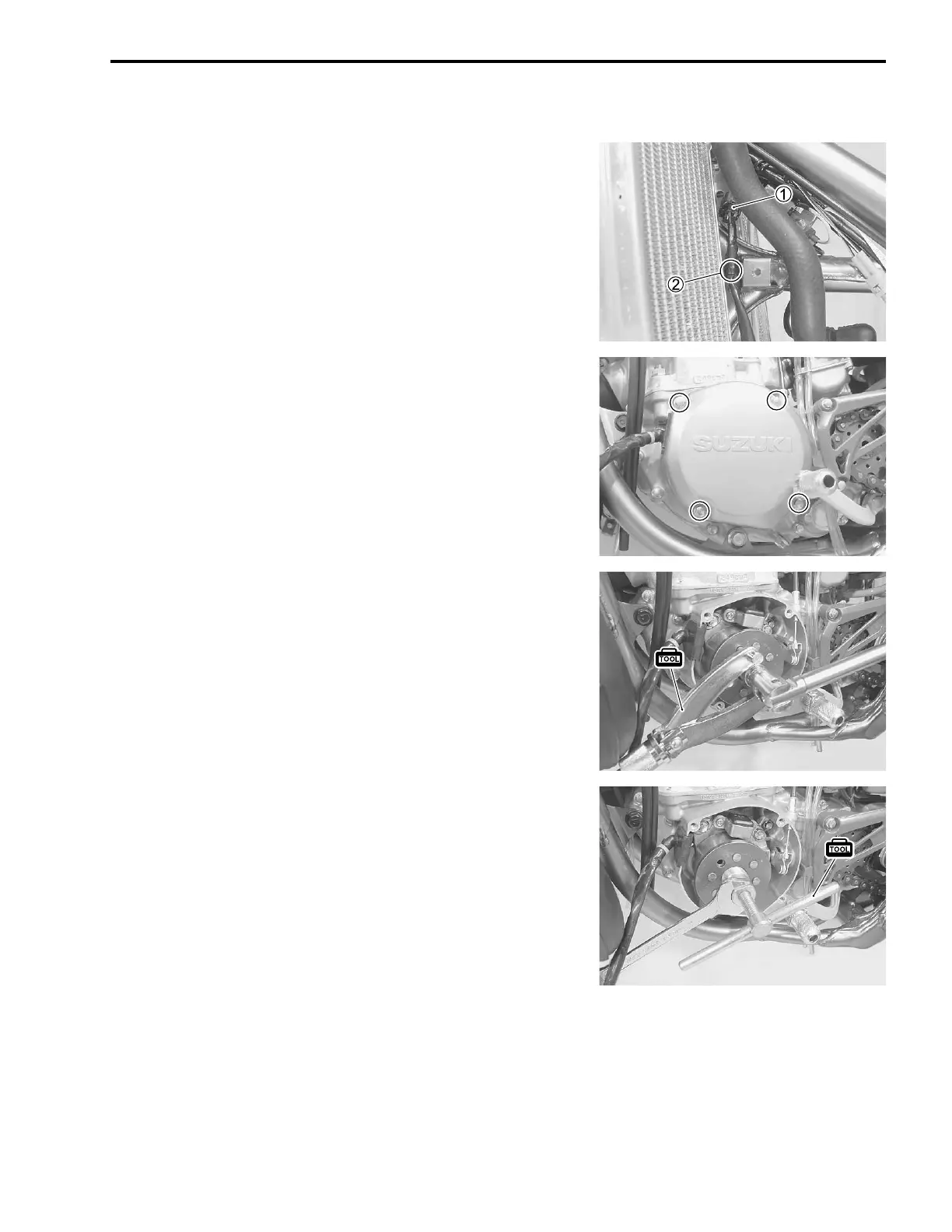

REMOVAL
• Remove the seat. (!3-2)
• Remove the fuel tank. (!3-2)
• Disconnect the magneto lead wire coupler
1 and clamp
2.
• Remove the magneto cover.
• Remove the magneto rotor nut with the special tool.
" 09930-40113: Rotor holder
• Remove the magneto rotor with the special tool.
" 09930-30113: Flywheel rotor remover
NOTE:
Fold the gearshift lever head for turning the special tool’s han-
dle.
