9-14 FUEL SYSTEM

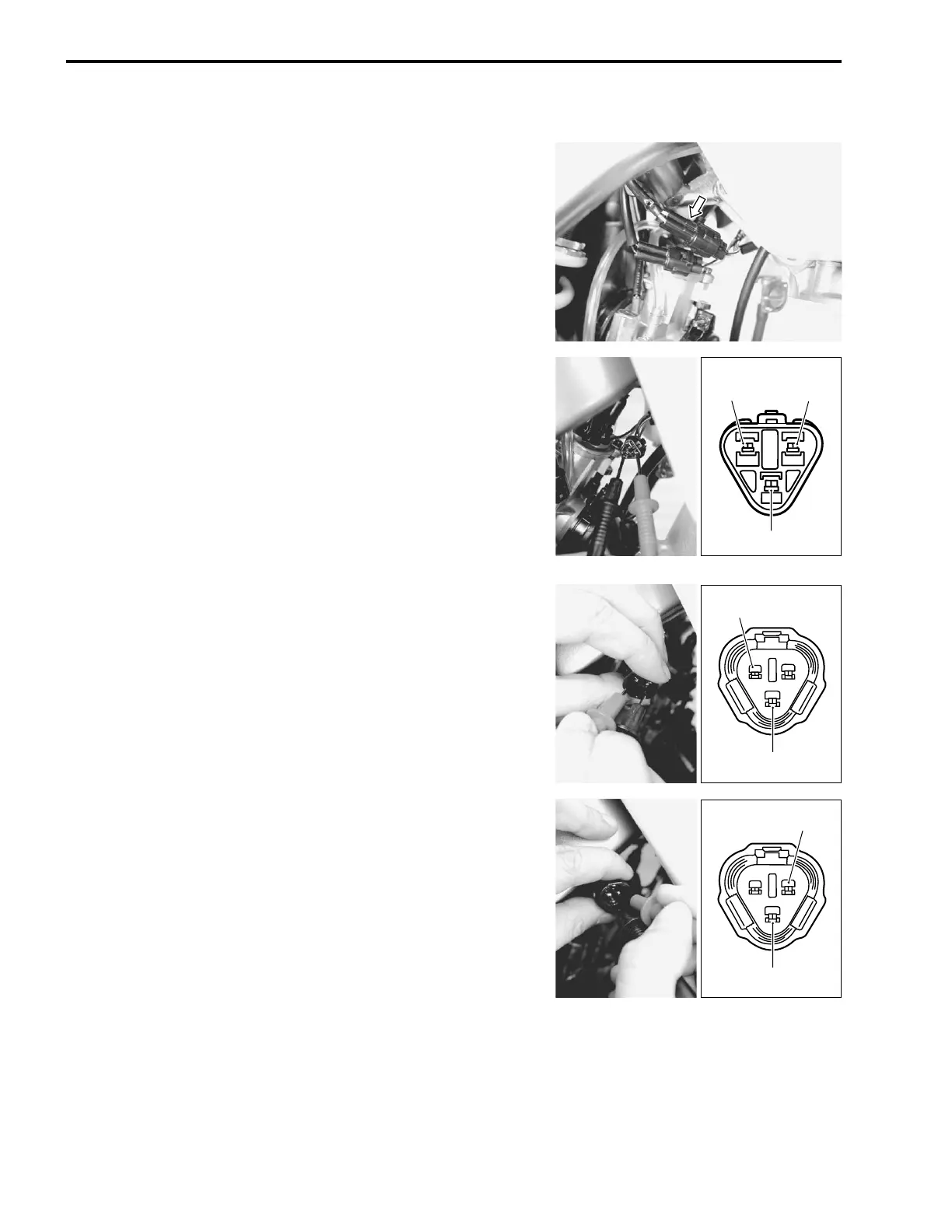

THROTTLE POSITION SENSOR
INSPECTION
• Disconnect the throttle position sensor coupler.
• Start the engine.
• Measure the throttle position sensor input voltage with the
Multi circuit tester.
# 09900-25008: Multi circuit tester set
$ Tester knob indication: Voltage (%)
" Orange/White (
+ probe) – Black/White (
- probe):
4 – 6 V (Over 3 000 rpm)
• If the voltage is not within the specified value, replace the CDI
unit.
• Measure the throttle position sensor coil resistance with the
Multi circuit tester.
# 09900-25008: Multi circuit tester set
& Tester knob indication: Resistance (Ω
ΩΩ
Ω)
" Blue (
+ probe) – Black (
- probe): 4 – 6 kΩ
ΩΩ
Ω
" Yellow (
+ probe) – Black (
- probe):
When the throttle is full closed: 0.3 – 0.75 kΩ
ΩΩ
Ω
When the throttle is full opened: 2.5 – 5 kΩ
ΩΩ
Ω
• If the resistance is correct, it is not necessary to remove the
throttle position sensor.
• If the resistance is not within the specified value, replace the
throttle position sensor assembly.
Black/White
Orange/
WhiteBlack/Yellow
Black
Blue
Black
Yellow
