TRANSMISSION AND CRANKSHAFT 8-5
CRANKCASE

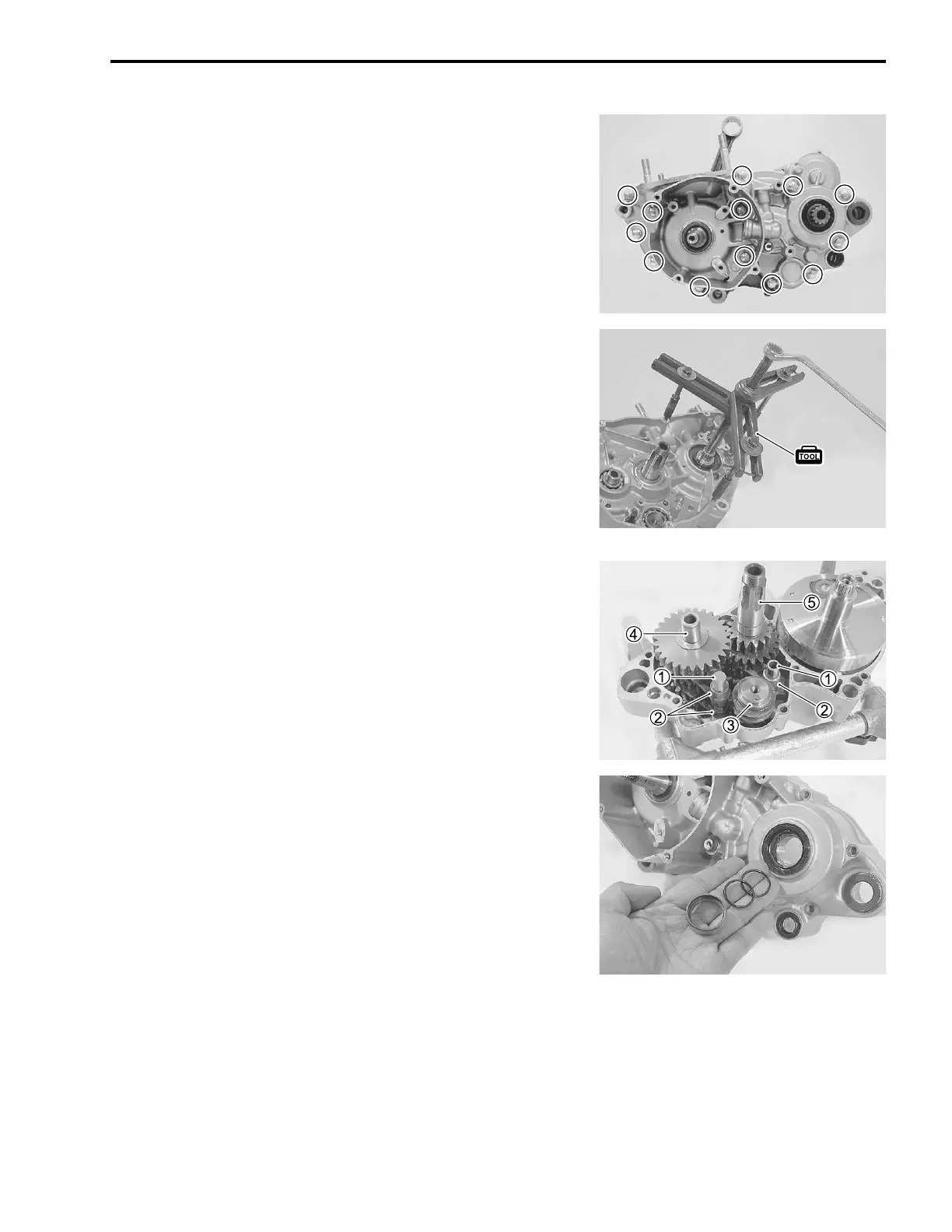

• Remove the crankcase bolts.
• Separate the crankcase with the special tool.
" 09920-13120: Crankcase separating tool
NOTE:
* Set the crankcase separating tool to the clutch side of the
crankcase.
* Keep all the tool arms parallel to the crankcase surface.
* Separate the crankcase gradually while tapping the crankcase
boss and countershaft softly with a plastic hammer.
• Remove the dowel pins and gasket.
TRANSMISSION
• Remove the gearshift fork shafts
1 and forks
2.
• Remove the gearshift cam
3.
• Remove the drive shaft assembly
4 and countershaft assem-
bly
5.
• Remove the engine sprocket spacer and two O-rings.
