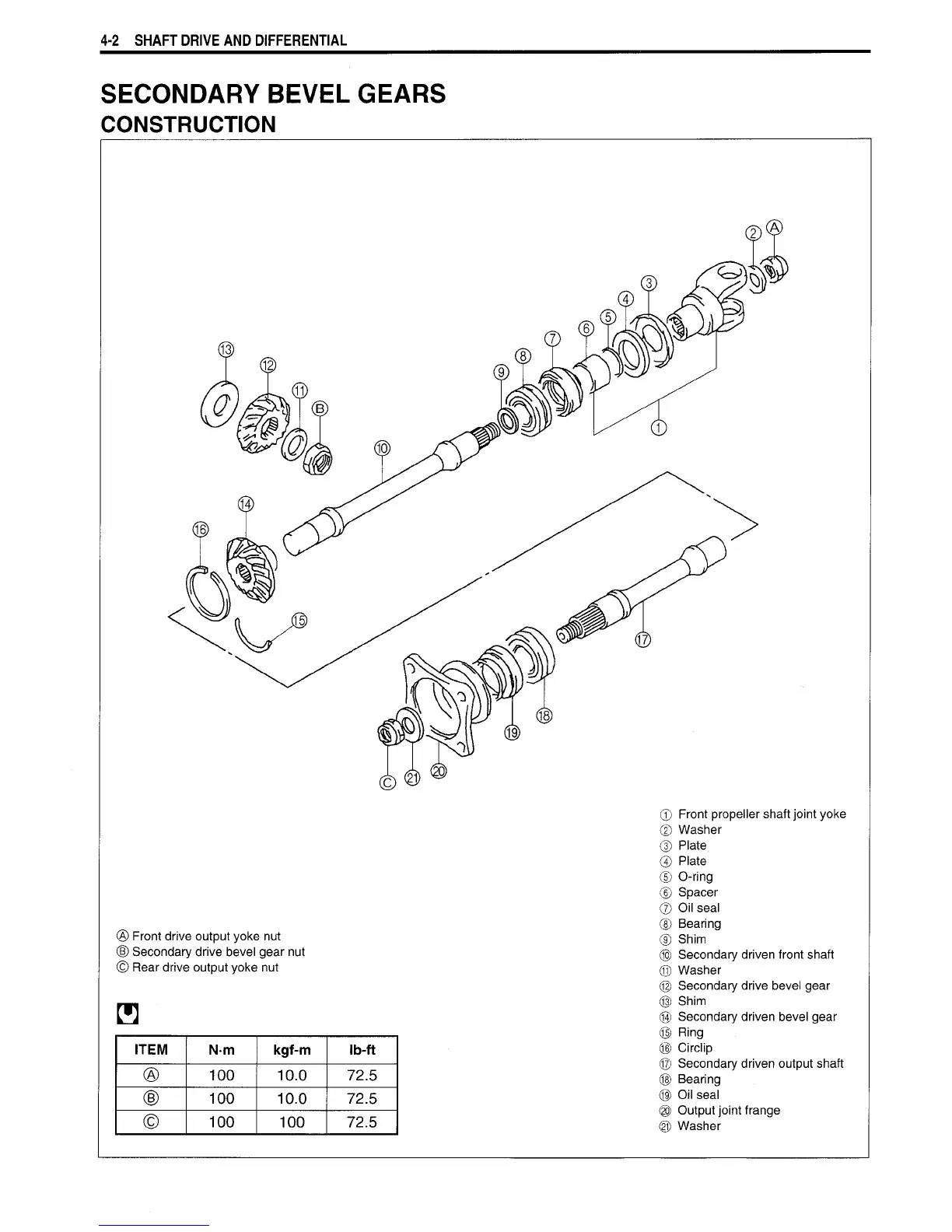

4-2 SHAFT DRIVE AND DIFFERENTIAL
SECONDARY BEVEL GEARS
CONSTRUCTION
) Front drive output yoke nut
) Secondary drive bevel gear nut
) Rear drive output yoke nut
H
ITEM Nm kgf-m Ib-ft
®
100 10.0 72.5
®
100 10.0 72.5
©
100 100 72.5
© Front propeller shaft joint yoke
© Washer
© Plate
® Plate
© O-ring
© Spacer
© Oil seal
© Bearing
© Shim
® Secondary driven front shaft
© Washer
© Secondary drive bevel gear
© Shim
® Secondary driven bevel gear
© Ring
© Circlip
© Secondary driven output shaft
© Bearing
© Oil seal
® Output joint frange
® Washer
