Suzuki Vinson LT-A500F - Rear Suspension Inspection; Rear Suspension Removal and Disassembly

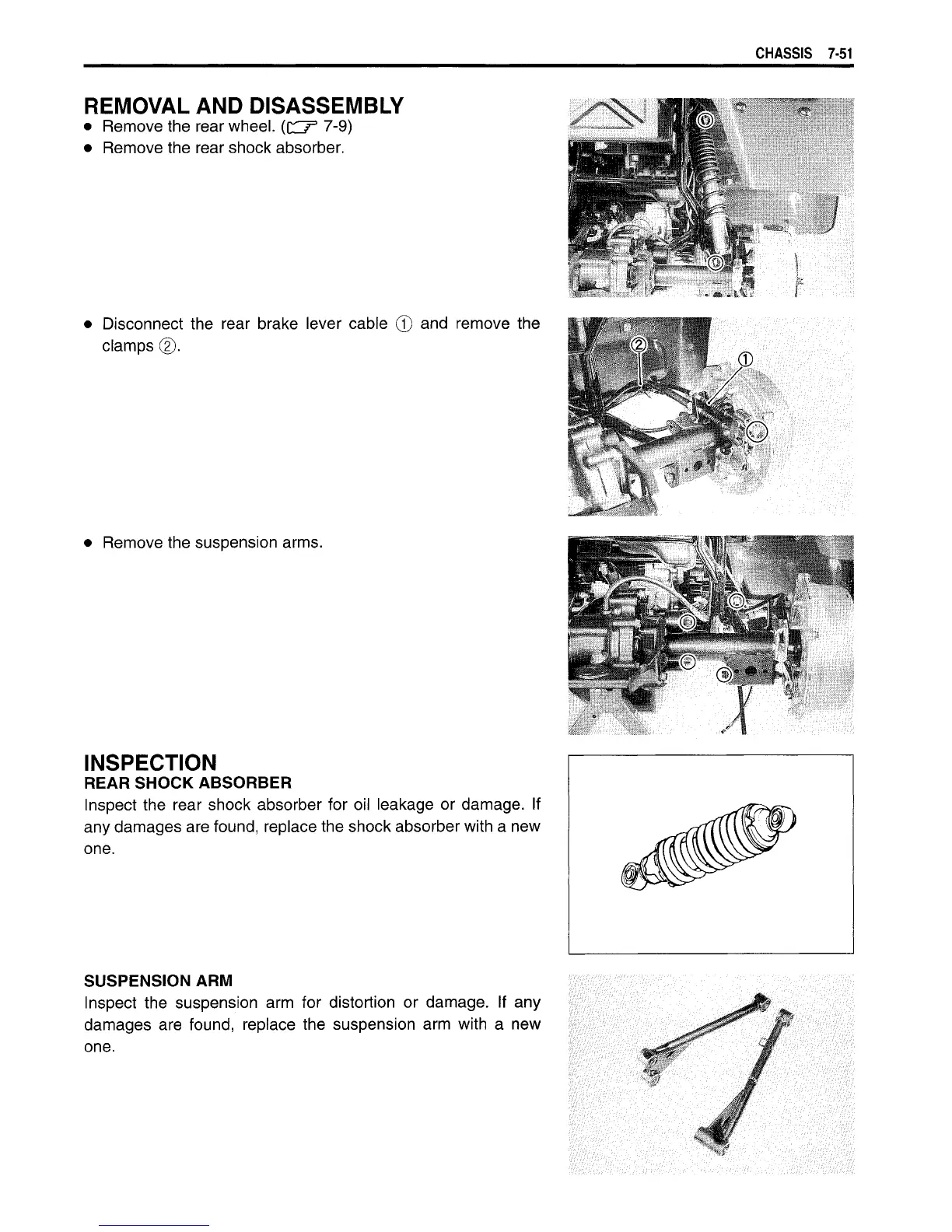

REMOVAL AND DISASSEMBLY
• Remove the rear wheel. (CU
3
7-9)
• Remove the rear shock absorber.
• Disconnect the rear brake lever cable © and remove the
clamps ©.
• Remove the suspension arms.
INSPECTION
REAR SHOCK ABSORBER
Inspect the rear shock absorber for oil leakage or damage. If
any damages are found, replace the shock absorber with a new
one.
SUSPENSION ARM
Inspect the suspension arm for distortion or damage. If any
damages are found, replace the suspension arm with a new
one.
