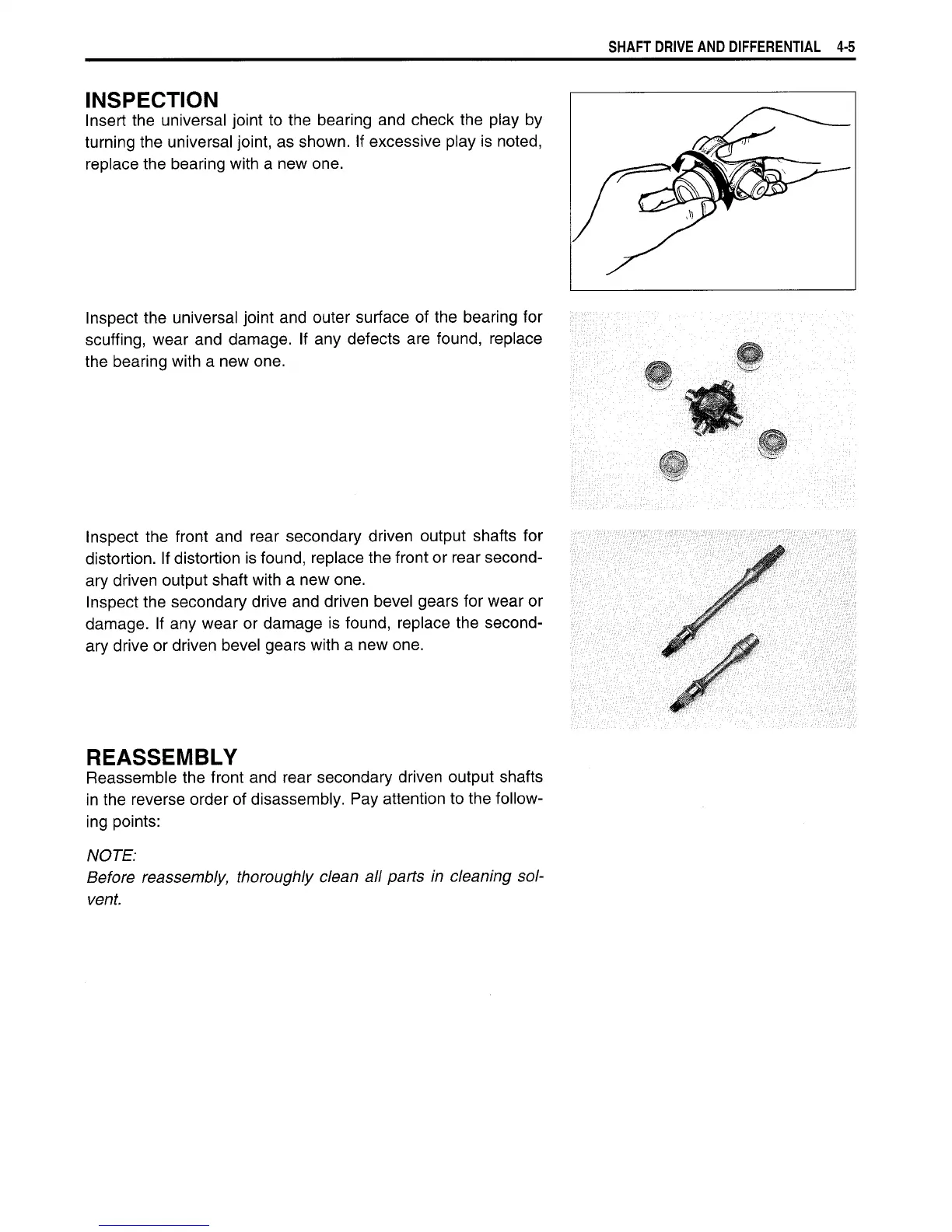

SHAFT DRIVE AND DIFFERENTIAL 4-5
INSPECTION
Insert
the universal
joint
to
the bearing
and
check the play
by
turning
the universal
joint,
as
shown. If excessive play is noted,
replace the bearing
with
a
new one.
Inspect
the universal
joint
and outer surface
of
the bearing
for
scuffing,
wear
and
damage.
If any
defects
are
found, replace
the
bearing
with
a
new one.
Inspect
the
front
and
rear secondary driven output shafts
for
distortion.
If
distortion
is found, replace the front
or
rear second-
ary driven output shaft
with
a
new one.
Inspect
the secondary drive and driven bevel gears for wear
or
damage.
If any
wear
or
damage
is
found, replace the second-
ary drive
or
driven bevel gears
with
a
new one.
REASSEMBLY
Reassemble
the front and rear secondary driven output shafts
in
the reverse order
of
disassembly.
Pay
attention to the follow-
ing
points:
NOTE:
Before
reassembly,
thoroughly
clean all parts in cleaning sol-
vent
