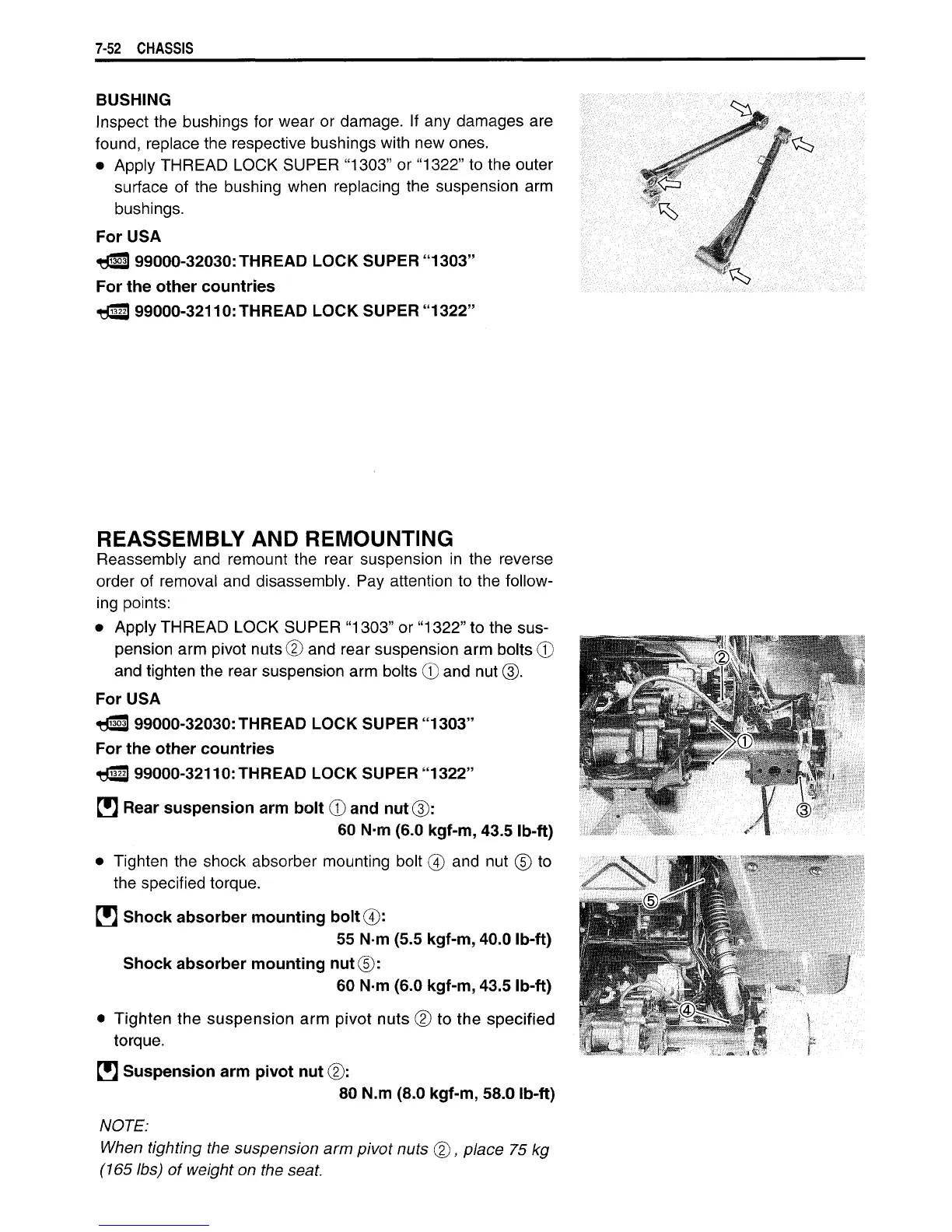

7-52 CHASSIS
BUSHING
Inspect the bushings for wear or damage. If any damages are
found, replace the respective bushings with new ones.
• Apply THREAD LOCK SUPER "1303" or "1322" to the outer
surface of the bushing when replacing the suspension arm
bushings.
For USA
99000-32030: THREAD LOCK SUPER "1303"
For the other countries
433 99000-32110: THREAD LOCK SUPER "1322"
REASSEMBLY AND REMOUNTING
Reassembly and remount the rear suspension in the reverse
order of removal and disassembly. Pay attention to the follow-
ing points:
• Apply THREAD LOCK SUPER "1303" or "1322" to the sus-
pension arm pivot nuts© and rear suspension arm bolts ©
and tighten the rear suspension arm bolts © and nut ©.
For USA
tjS3 99000-32030: THREAD LOCK SUPER "1303"
For the other countries
tjas) 99000-32110: THREAD LOCK SUPER "1322"
H Rear suspension arm bolt © and nut©:
60 N-m (6.0 kgf-m, 43.5 Ib-ft)
• Tighten the shock absorber mounting bolt © and nut © to
the specified torque.
H Shock absorber mounting bolt®:
55 N m (5.5 kgf-m, 40.0 Ib-ft)
Shock absorber mounting nut®:
60 N m (6.0 kgf-m, 43.5 Ib-ft)
• Tighten the suspension arm pivot nuts © to the specified
torque.
[5 Suspension arm pivot nut ©:
80 N.m (8.0 kgf-m, 58.0 Ib-ft)
NOTE:
When fighting the suspension arm pivot nuts ©, place 75 kg
(165 lbs) of weight on the seat.
