ENGINE 3-49

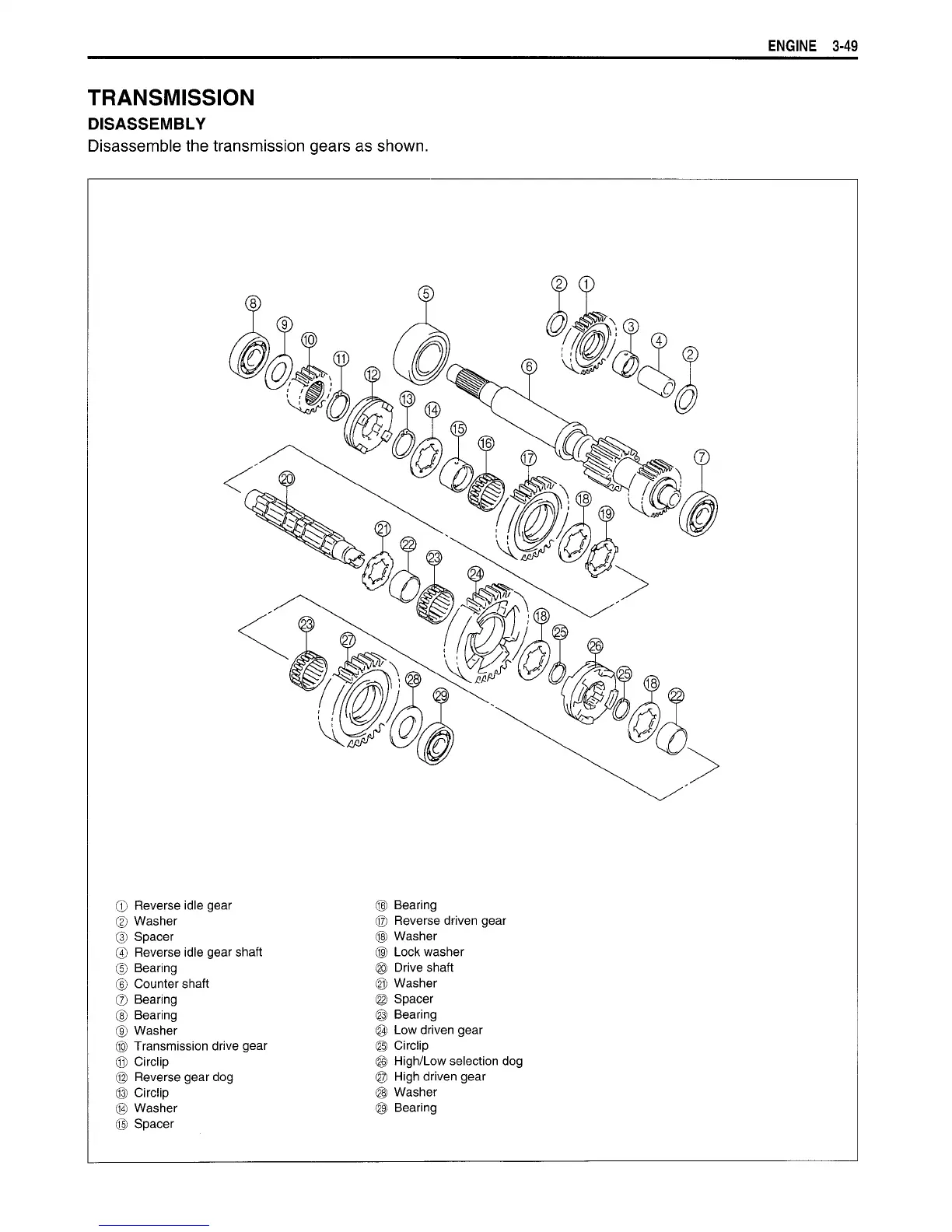

TRANSMISSION
DISASSEMBLY
Disassemble the transmission gears as shown.
© Reverse idle gear
© Washer
© Spacer
© Reverse idle gear shaft
© Bearing
© Countershaft
© Bearing
© Bearing
© Washer
® Transmission drive gear
® Circlip
© Reverse gear dog
© Circlip
© Washer
© Spacer
Bearing
Reverse driven gear
Washer
Lock washer
Drive shaft
Washer
Spacer
Bearing
Low driven gear
Circlip
High/Low selection dog
High driven gear
Washer
Bearing
